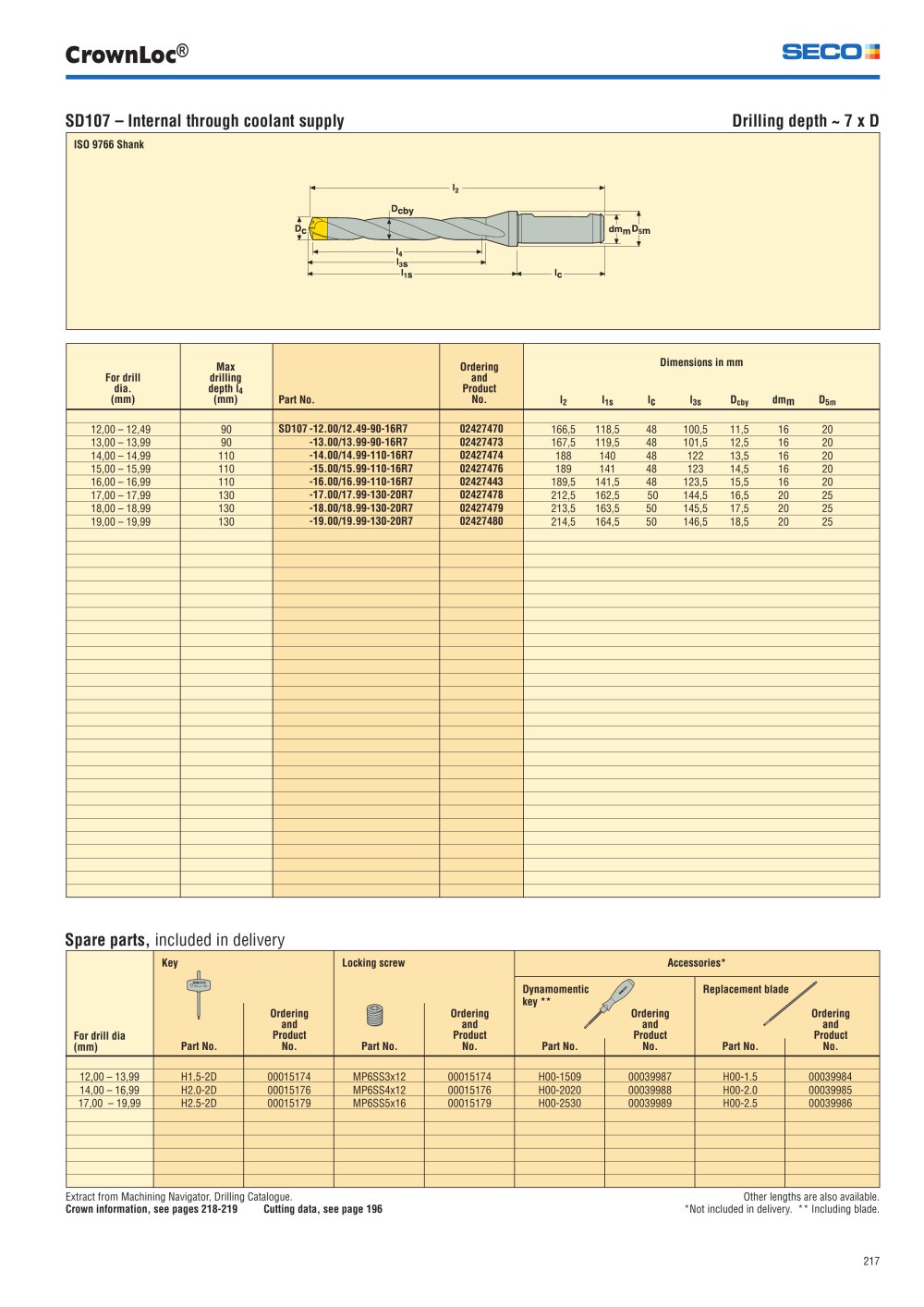

SECO TOOLS - Catalog "Seco selection 2006" - 219 / 259 Pages

CrownLoc®

SECQl

SD107 - Internal through coolant supply

ISO 9766 Shank

For drill

dla.

(mm)

Max

drilling

depth U

(mm)

Part No.

Ordering

and

Product

No.

Dimensions in mm

I2 lis lc l3s Dcby dmm Dsn,



12,00-12,49

90

SD107-12.00/12.49-90-16R7

02427470

166,5 118,5 48 100,5 11,5 16 20

13,00-13,99

90

-13.00/13.99-90-16R7

02427473

167,5 119,5 48 101,5 12,5 16 20

14,00-14,99

110

-14.00/14.99-110-16R7

02427474

188 140 48 122 13,5 16 20

15,00-15,99

110

-15.00/15.99-110-16R7

02427476

189 141 48 123 14,5 16 20

16,00-16,99

110

-16.00/16.99-110-16R7

02427443

189,5 141,5 48 123,5 15,5 16 20

17,00-17,99

130

-17.00/17.99-130-20R7

02427478

212,5 162,5 50 144,5 16,5 20 25

18,00-18,99

130

-18.00/18.99-130-20R7

02427479

213,5 163,5 50 145,5 17,5 20 25

19,00-19,99

130

-19.00/19.99-130-20R7

02427480

214,5 164,5 50 146,5 18,5 20 25






























Spare parts, included in delivery

For drill dia

(mm)

Key

Locking screw

Accessories*

Part No.

Ordering

and

Product

No.

Part No.

Ordering

and

Product

No.

Dynamo mentic

key ** .

Part No.

/v

Ordering

and

Product

No.

Replacement blad

/

Part No.

/

Ordering

and

Product

No.



12,00-13,99

H1.5-2D

00015174

MP6SS3X12

00015174

H00-1509

00039987

H00-1.5

00039984

14,00-16,99

H2.0-2D

00015176

MP6SS4X12

00015176

H00-2020

00039988

H00-2.0

00039985

17,00 -19,99

H2.5-2D

00015179

MP6SS5X16

00015179

H00-2530

00039989

H00-2.5

00039986








Extract from Machining Navigator, Drilling Catalogue. Other lengths are also available

Crown information, see pages 218-219 Cutting data, see page 196 'Not included in delivery '' Including blade

Drilling depth ~ 7 x D

217
