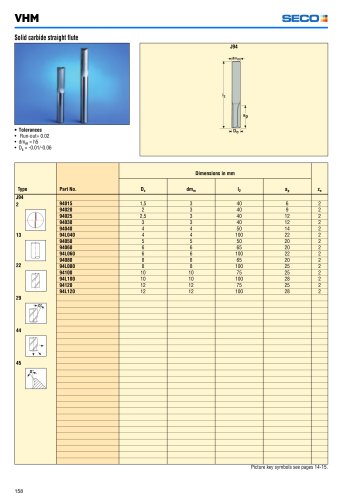

Solid carbide straight flute

J94 Tolerances Օ Run-out= 0.02
dm >
m = h5ՕD >
c = -0.01/-0.06 Dimensions in mm Type Part No. D >
c dm >
m l >
2 a >
p z >
n J94213
2229
44
45 94015 1,5 3 40 6 2 94020 2 3 40 9 2 94025 2,5 3 40 12 2 94030 3 3 40 12 2 94040 4 4 50 14 2 94L040 4 4 100 22 2 94050 5 5 50 20 2 94060 6 6 65 20 2 94L060 6 6 100 22 2 94080 8 8 65 20 2 94L080 8 8 100 25 2 94100 10 10 75 25 2 94L100 10 10 100 28 2 94120 12 12 75 25 2 94L120 12 12 100 28 2 Picture key symbols see pages 14-15. 158 >
