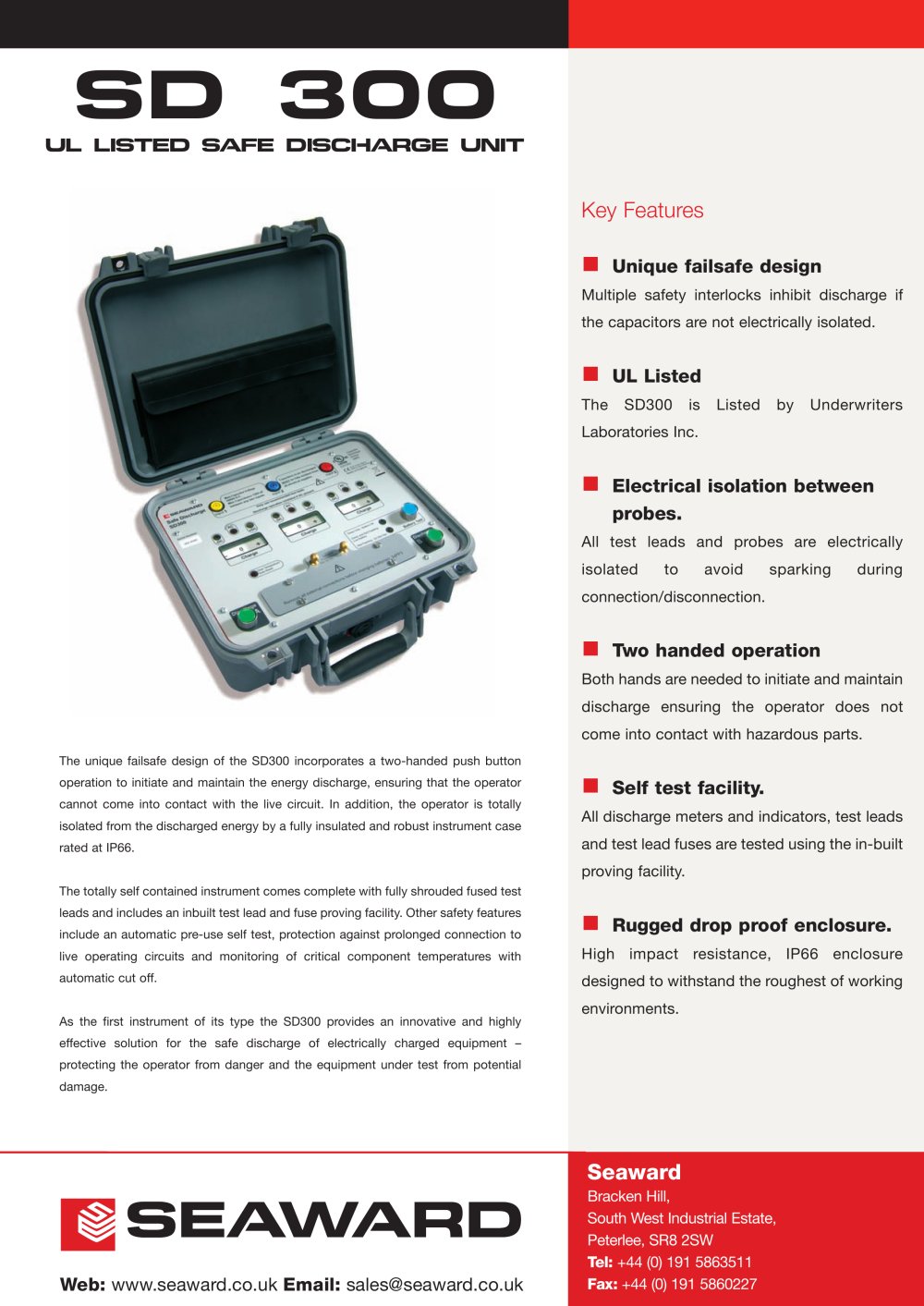

SD 300 Datasheet - 1

Seaward Bracken Hill, South West Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.seaward.co.uk Email: sales@seaward.co.uk Fax: +44 (0) 191 5860227 SD 300 The unique failsafe design of the SD300 incorporates a two-handed push button operation to initiate and maintain the energy discharge, ensuring that the operator cannot come into contact with the live circuit. In addition, the operator is totally isolated from the discharged energy by a fully insulated and robust instrument case rated at IP66. The totally self contained instrument comes complete with fully shrouded fused test leads and includes an inbuilt test lead and fuse proving facility. Other safety features include an automatic pre-use self test, protection against prolonged connection to live operating circuits and monitoring of critical component temperatures with automatic cut off. As the first instrument of its type the SD300 provides an innovative and highly effective solution for the safe discharge of electrically charged equipment – protecting the operator from danger and the equipment under test from potential damage. Key Features n Unique failsafe design Multiple safety interlocks inhibit discharge if the capacitors are not electrically isolated. n UL Listed The SD300 is Listed by Underwriters Laboratories Inc. n Electrical isolation between probes. All test leads and probes are electrically isolated to avoid sparking during connection/disconnection. n Two handed operation Both hands are needed to initiate and maintain discharge ensuring the operator does not come into contact with hazardous parts. n Self test facility. All discharge meters and indicators, test leads and test lead fuses are tested using the in-built proving facility. n Rugged drop proof enclosure. High impact resistance, IP66 enclosure designed to withstand the roughest of working environments. UL Listed Safe Discharge Unit

Open the catalog to page 1
SD 300 Datasheet - 2

Web: www.cropico.com Email: info@cropico.com WORLD LEADERs IN SAFETY TEST AND MEASUREMENT G R O U P SEAWARD PRECISION INSTRUMENTS CROPICO MEDICAL RIGEL INDUSTRIAL SAFETY INSTRUMENTS CLARE PORTABLE ELECTRICAL SAFETY INSTRUMENTS SEAWARD Seaward test and measurement companies include: SD 300 SPECIFICATIONS SPECIFICATIONS Maximum voltage 1000V DC Maximum capacitance 1200uF Discharge time 30s nominal @1000V/1200uF Safety Interlock Discharge inhibited if >40V AC between test probes Indicators Centre-zero panel meters and LED indicators Test leads 3 x 4m fully shrouded with fused probes. IP Rating...

Open the catalog to page 2
