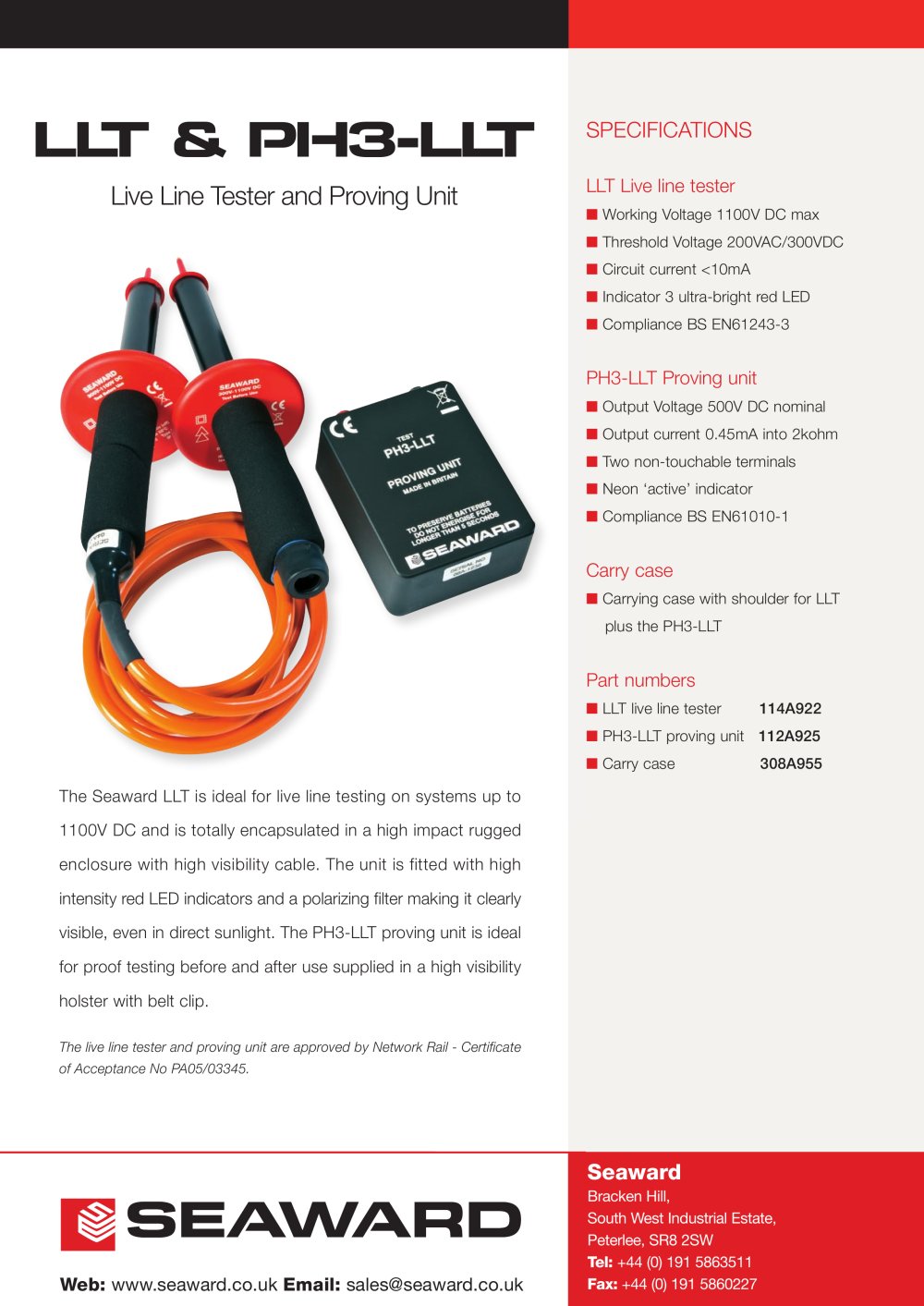

Seaward Bracken Hill, South West Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.seaward.co.uk Email: sales@seaward.co.uk Fax: +44 (0) 191 5860227 LLT & PH3-LLT The Seaward LLT is ideal for live line testing on systems up to 1100V DC and is totally encapsulated in a high impact rugged enclosure with high visibility cable. The unit is fitted with high intensity red LED indicators and a polarizing filter making it clearly visible, even in direct sunlight. The PH3-LLT proving unit is ideal for proof testing before and after use supplied in a high visibility holster with belt clip. The live line tester and proving unit are approved by Network Rail - Certificate of Acceptance No PA05/03345. Live Line Tester and Proving Unit SPECIFICATIONS LLT Live line tester
Working Voltage 1100V DC max
Threshold Voltage 200VAC/300VDC
Circuit current <10mA
Indicator 3 ultra-bright red LED
Compliance BS EN61243-3 PH3-LLT Proving unit
Output Voltage 500V DC nominal
Output current 0.45mA into 2kohm
Two non-touchable terminals
Neon ‘active’ indicator
Compliance BS EN61010-1 Carry case
Carrying case with shoulder for LLT plus the PH3-LLT Part numbers
LLT live line tester 114A922
PH3-LLT proving unit 112A925
Carry case 308A955
