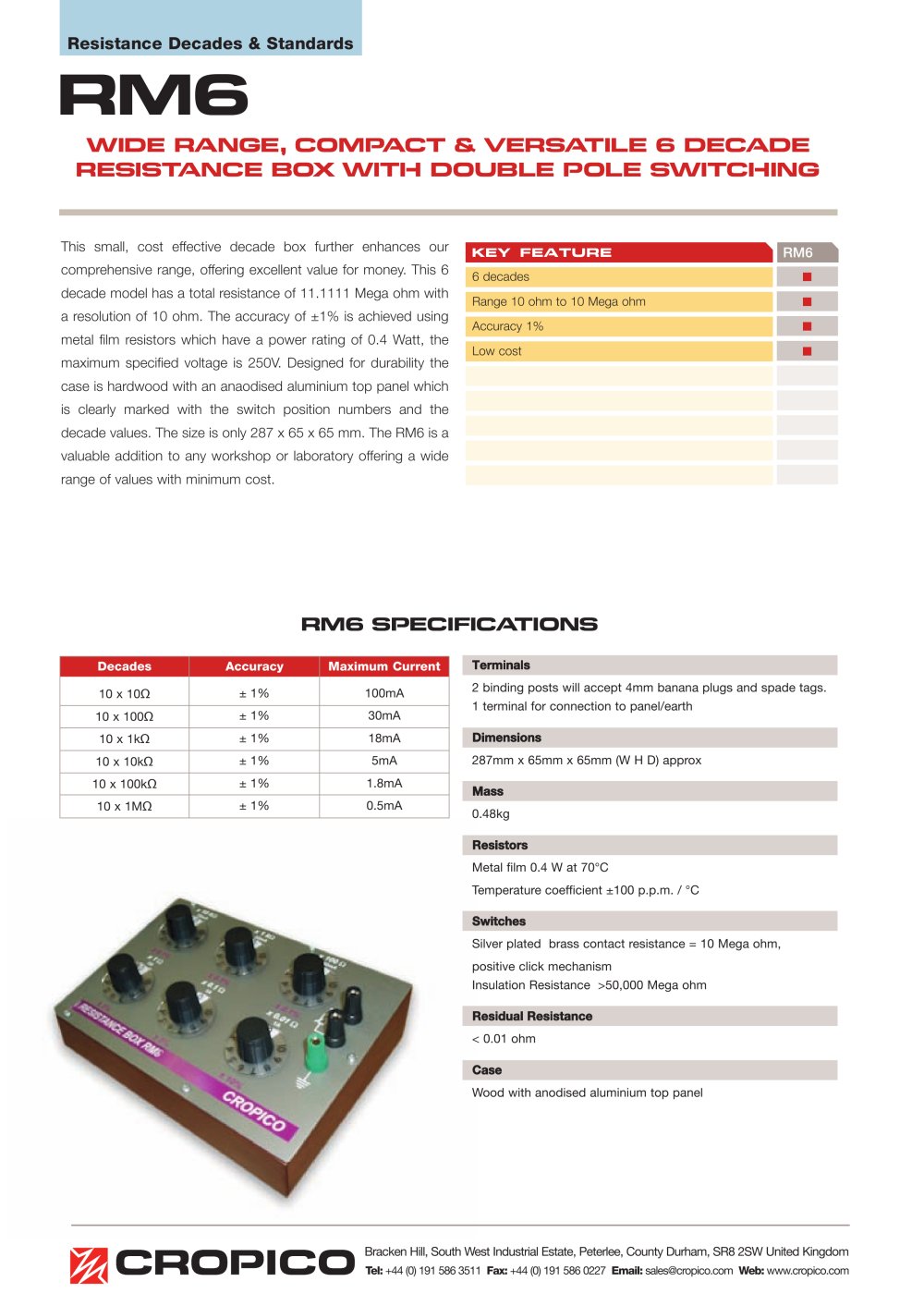

RM6 WIDE RANGE, COMPACT & VERSATILE 6 DECADE RESISTANCE BOX WITH DOUBLE POLE SWITCHING Resistance Decades & Standards RM6 SPECIFICATIONS Terminals 2 binding posts will accept 4mm banana plugs and spade tags. 1 terminal for connection to panel/earth Dimensions 287mm x 65mm x 65mm (W H D) approx Mass 0.48kg Resistors Metal film 0.4 W at 70°C Temperature coefficient ±100 p.p.m. / °C Switches Silver plated brass contact resistance = 10 Mega ohm, positive click mechanism Insulation Resistance >50,000 Mega ohm Residual Resistance < 0.01 ohm Case Wood with anodised aluminium top panel This small, cost effective decade box further enhances our comprehensive range, offering excellent value for money. This 6 decade model has a total resistance of 11.1111 Mega ohm with a resolution of 10 ohm. The accuracy of ±1% is achieved using metal film resistors which have a power rating of 0.4 Watt, the maximum specified voltage is 250V. Designed for durability the case is hardwood with an anaodised aluminium top panel which is clearly marked with the switch position numbers and the decade values. The size is only 287 x 65 x 65 mm. The RM6 is a valuable addition to any workshop or laboratory offering a wide range of values with minimum cost. Decades Accuracy Maximum Current 10 x 10½ 10 x 100½ 10 x 1k½ 10 x 10k½ 10 x 100k½ 10 x 1M½ ± 1% ± 1% ± 1% ± 1% ± 1% ± 1% 100mA 30mA 18mA 5mA 1.8mA 0.5mA key feature RM6 6 decades n Range 10 ohm to 10 Mega ohm n Accuracy 1% n Low cost n Bracken Hill, South West Industrial Estate, Peterlee, County Durham, SR8 2SW United Kingdom Tel: +44 (0) 191 586 3511 Fax: +44 (0) 191 586 0227 Email: sales@cropico.com Web: www.cropico.com
