Cropico DO5000 Series Datasheet (DO5000, DO5001, DO5002)
2Pages

{{requestButtons}}

Catalog excerpts

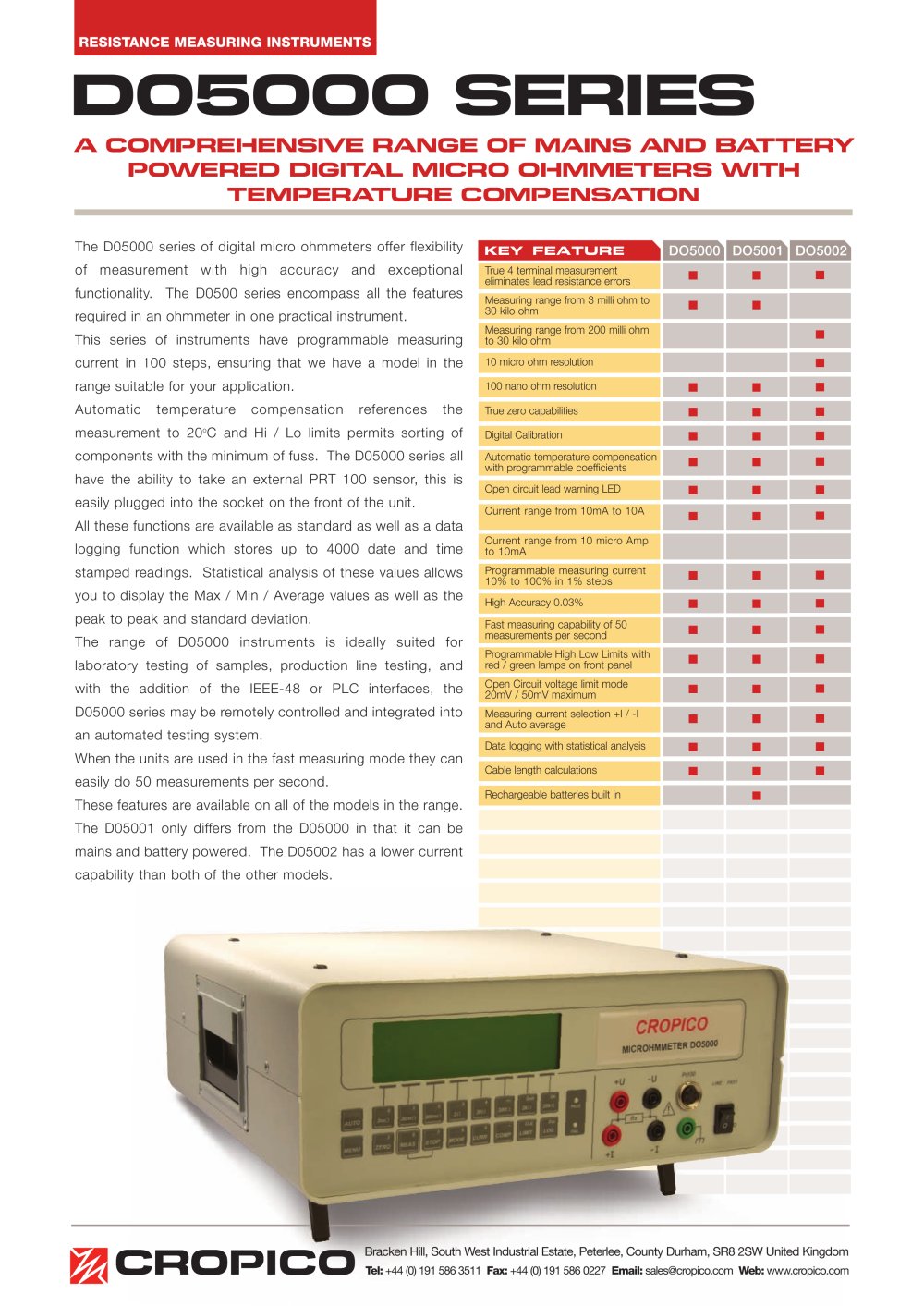

Cropico DO5000 Series Datasheet (DO5000, DO5001, DO5002) - 1

key feature DO5000 True 4 terminal measurement eliminates lead resistance errors DO5001 DO5002 n n n 10 micro ohm resolution n Measuring range from 3 milli ohm to 30 kilo ohm n n Measuring range from 200 milli ohm to 30 kilo ohm n 100 nano ohm resolution n n n True zero capabilities n n n Digital Calibration n n n Open circuit lead warning LED n n n Fast measuring capability of 50 measurements per second n n n High Accuracy 0.03% n n n Data logging with statistical analysis n n n Cable length calculations n n n Rechargeable batteries built in n Automatic temperature compensation with programmable coefficients n n n Current range from 10mA to 10A n n n Current range from 10 micro Amp to 10mA Programmable measuring current 10% to 100% in 1% steps n n n Programmable High Low Limits with red / green lamps on front panel n n n Open Circuit voltage limit mode 20mV / 50mV maximum n n n Measuring current selection +I / -I and Auto average n n n D05000 SERIES A COMPREHENSIVE RANGE OF MAINS AND BATTERY POWERED DIGITAL MICRO OHMMETERS WITH TEMPERATURE COMPENSATION RESISTANCE MEASURING INSTRUMENTS The D05000 series of digital micro ohmmeters offer flexibility of measurement with high accuracy and exceptional functionality. The D0500 series encompass all the features required in an ohmmeter in one practical instrument. This series of instruments have programmable measuring current in 100 steps, ensuring that we have a model in the range suitable for your application. Automatic temperature compensation references the measurement to 20oC and Hi / Lo limits permits sorting of components with the minimum of fuss. The D05000 series all have the ability to take an external PRT 100 sensor, this is easily plugged into the socket on the front of the unit. All these functions are available as standard as well as a data logging function which stores up to 4000 date and time stamped readings. Statistical analysis of these values allows you to display the Max / Min / Average values as well as the peak to peak and standard deviation. The range of D05000 instruments is ideally suited for laboratory testing of samples, production line testing, and with the addition of the IEEE-48 or PLC interfaces, the D05000 series may be remotely controlled and integrated into an automated testing system. When the units are used in the fast measuring mode they can easily do 50 measurements per second. These features are available on all of the models in the range. The D05001 only differs from the D05000 in that it can be mains and battery powered. The D05002 has a lower current capability than both of the other models. Bracken Hill, South West Industrial Estate, Peterlee, County Durham, SR8 2SW United Kingdom Tel: +44 (0) 191 586 3511 Fax: +44 (0) 191 586 0227 Email: sales@cropico.com Web: www.cropico.com

Open the catalog to page 1
Cropico DO5000 Series Datasheet (DO5000, DO5001, DO5002) - 2

D05000/DO5001 SPECIFICATIONS Measurement 4 terminal Kelvin/Thomson principle eliminates errors due to lead resistance Display LCD graphics panel with backlit 30,000 count Ranges 8 automatic or manual selection Terminals 4mm safety sockets Working Temperature 0°C to +45°C rel. humidity 80% max. non-condensing Storage Temperature -20°C to +60°C Mains Supply 115/230V +10% -10% 47Hz to 163Hz 20VA Safety EN 61010-1 EMC-EN 61236 Dimensions 339mm x 324mm x 131mm (W H D) approx Mass 12kg approx. 12kg packed in carton Auto Zero Permits the zero of measurement values Average Automatic average and...

Open the catalog to page 2
