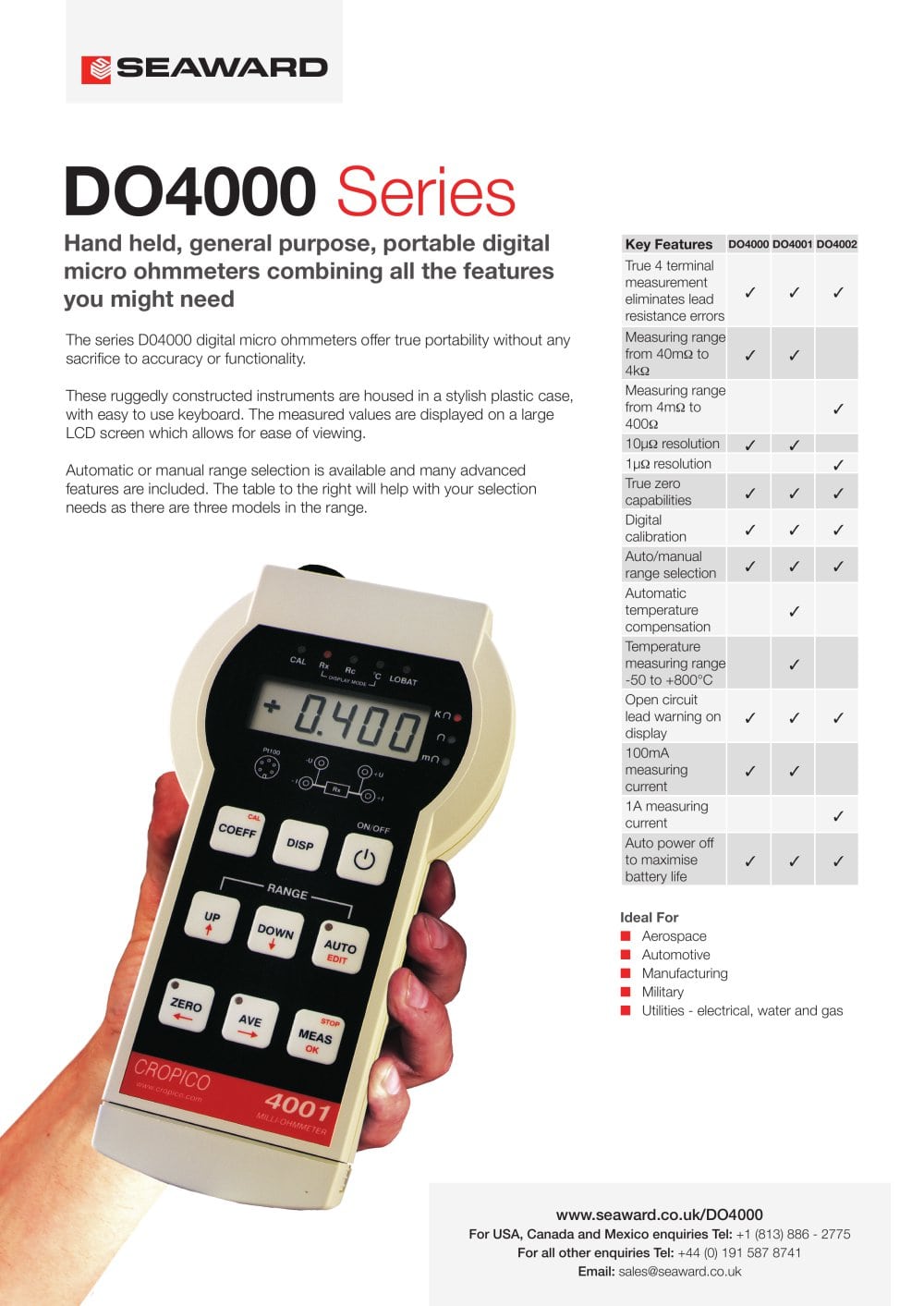

D04000 SERIES The series D04000 digital micro ohmmeters offer true portability without any sacrifice to accuracy or functionality. These ruggedly constructed instruments are housed in a stylish plastic case with easy to use keyboard. The measured values are displayed on a large LCD screen which allows for ease of viewing. Automatic or manual range selection is available and many advanced features are included. The table below will help with your selection needs as there are 3 models in the range. HAND HELD, GENERAL PURPOSE, PORTABLE DIGITAL MICRO OHMMETERS COMBINING ALL THE FEATURES YOU MIGHT NEED RESISTANCE MEASURING INSTRUMENTS key feature DO4000 True 4 terminal measurement eliminates lead resistance errors DO4001 DO4002 n n n 10 micro ohm resolution n n Measuring range from 4 milli ohm to 4 kilo ohm n n Measuring range from 4 milli ohm to 400 ohm n 1 micro ohm resolution n True zero capabilities n n n Digital Calibration n n n Auto / Manual range selection n n n Temperature measuring range -50 to +800 oC n Automatic temperature compensation n Open circuit lead warning LED n n n 100mA measuring current n n 1A measuring current n Auto power off to maximise battery life n n n Bracken Hill, South West Industrial Estate, Peterlee, County Durham, SR8 2SW United Kingdom Tel: +44 (0) 191 586 3511 Fax: +44 (0) 191 586 0227 Email: sales@cropico.com Web: www.cropico.com
