Cropico 3000 Series Datasheet
4Pages

Catalog excerpts

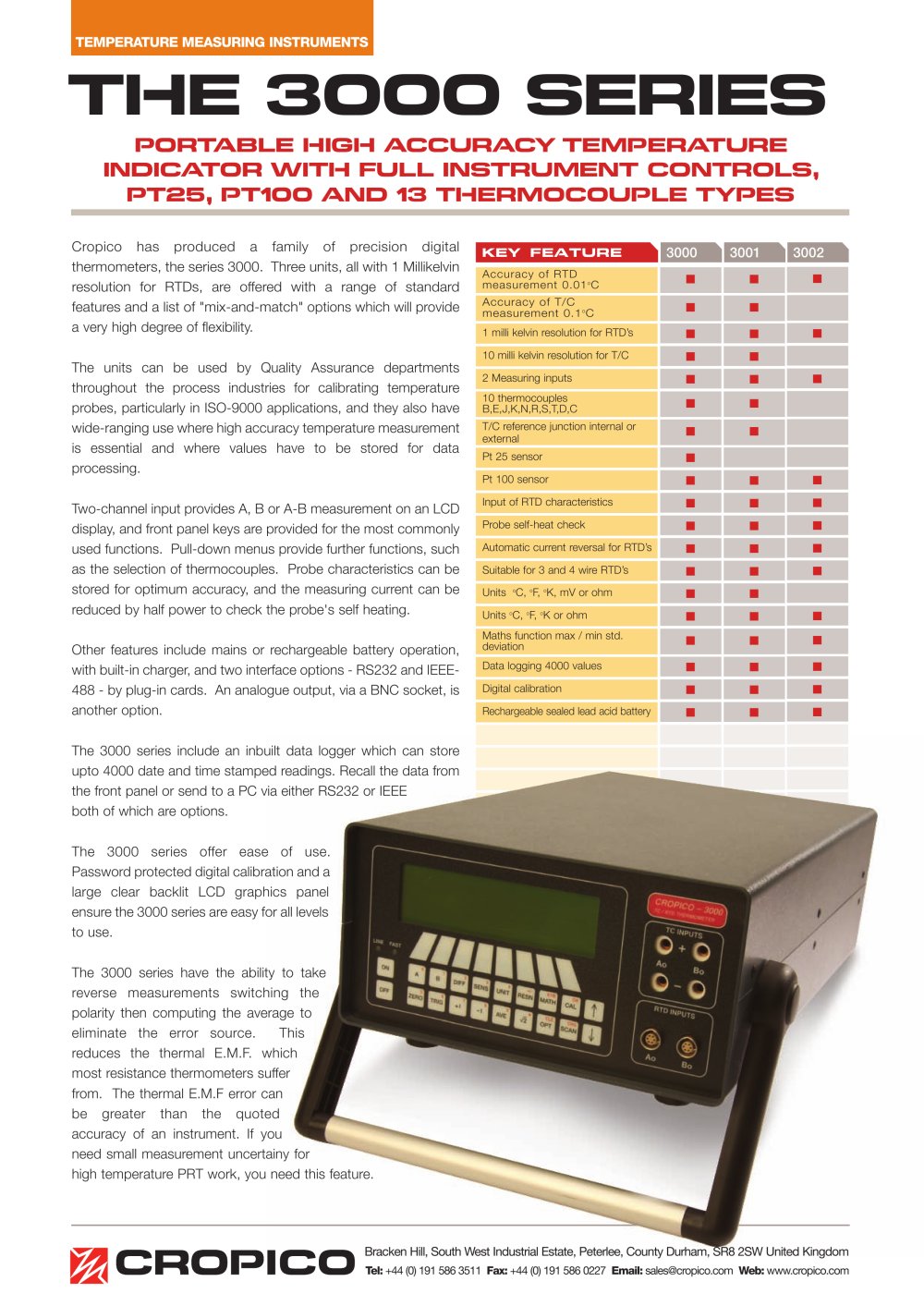

key feature 3000 Accuracy of RTD measurement 0.01oC 3001 3002 n n n 1 milli kelvin resolution for RTD’s n n n 10 milli kelvin resolution for T/C n n 2 Measuring inputs n n n Pt 25 sensor n 10 thermocouples B,E,J,K,N,R,S,T,D,C n n Maths function max / min std. deviation n n n Accuracy of T/C measurement 0.1oC n n T/C reference junction internal or external n n Pt 100 sensor n n n Input of RTD characteristics n n n Probe self-heat check n n n Automatic current reversal for RTD’s n n n Suitable for 3 and 4 wire RTD’s n n n Units oC, oF, oK, mV or ohm n n Units oC, oF, oK or ohm n n n Data logging 4000 values n n n Digital calibration n n n Rechargeable sealed lead acid battery n n n THE 3000 SERIES Cropico has produced a family of precision digital thermometers, the series 3000. Three units, all with 1 Millikelvin resolution for RTDs, are offered with a range of standard features and a list of "mix-and-match" options which will provide a very high degree of flexibility. The units can be used by Quality Assurance departments throughout the process industries for calibrating temperature probes, particularly in ISO-9000 applications, and they also have wide-ranging use where high accuracy temperature measurement is essential and where values have to be stored for data processing. Two-channel input provides A, B or A-B measurement on an LCD display, and front panel keys are provided for the most commonly used functions. Pull-down menus provide further functions, such as the selection of thermocouples. Probe characteristics can be stored for optimum accuracy, and the measuring current can be reduced by half power to check the probe's self heating. Other features include mains or rechargeable battery operation, with built-in charger, and two interface options - RS232 and IEEE- 488 - by plug-in cards. An analogue output, via a BNC socket, is another option. The 3000 series include an inbuilt data logger which can store upto 4000 date and time stamped readings. Recall the data from the front panel or send to a PC via either RS232 or IEEE both of which are options. The 3000 series offer ease of use. Password protected digital calibration and a large clear backlit LCD graphics panel ensure the 3000 series are easy for all levels to use. The 3000 series have the ability to take reverse measurements switching the polarity then computing the average to eliminate the error source. This reduces the thermal E.M.F. which most resistance thermometers suffer from. The thermal E.M.F error can be greater than the quoted accuracy of an instrument. If you need small measurement uncertainy for high temperature PRT work, you need this feature. PORTABLE HIGH ACCURACY TEMPERATURE INDICATOR WITH FULL INSTRUMENT CONTROLS, PT25, PT100 AND 13 THERMOCOUPLE TYPES TEMPERATURE MEASURING INSTRUMENTS Bracken Hill, South West Industrial Estate, Peterlee, County Durham, SR8 2SW United Kingdom Tel: +44 (0) 191 586 3511 Fax: +44 (0) 191 586 0227 Email: sales@cropico.com Web: www.cropico.com

Open the catalog to page 1

3000-01 RS232 interface n n n Code Item 3000 series options 3000 3001 3002 3000-03 IEEE-488 interface n n n 3000-04 Analogue output n n n 3000-05 Scanner option, input cards to be ordered separately n n n 3000-06 Scanner card for Pt100 4 channels. Scanner option 3000-05 must be installed n n n 3000-07 Scanner card for thermocouple inputs 4 channels. Scanner option 3000-05 must be installed n n n 3000-A-10 Calibration cable n n n 3000-A-11 Calibration standards for Pt100 channels, consisting of 3 standard resistors 100, 250, and 400 ohm n n n 3000-A-12 Adapter box 4mm copper terminals to...

Open the catalog to page 3

PRECISION INSTRUMENTS CROPICO MEDICAL RIGEL INDUSTRIAL SAFETY INSTRUMENTS CLARE PORTABLE ELECTRICAL SAFETY INSTRUMENTS SEAWARD Seaward test and measurement companies include: G R O U P SEAWARD
