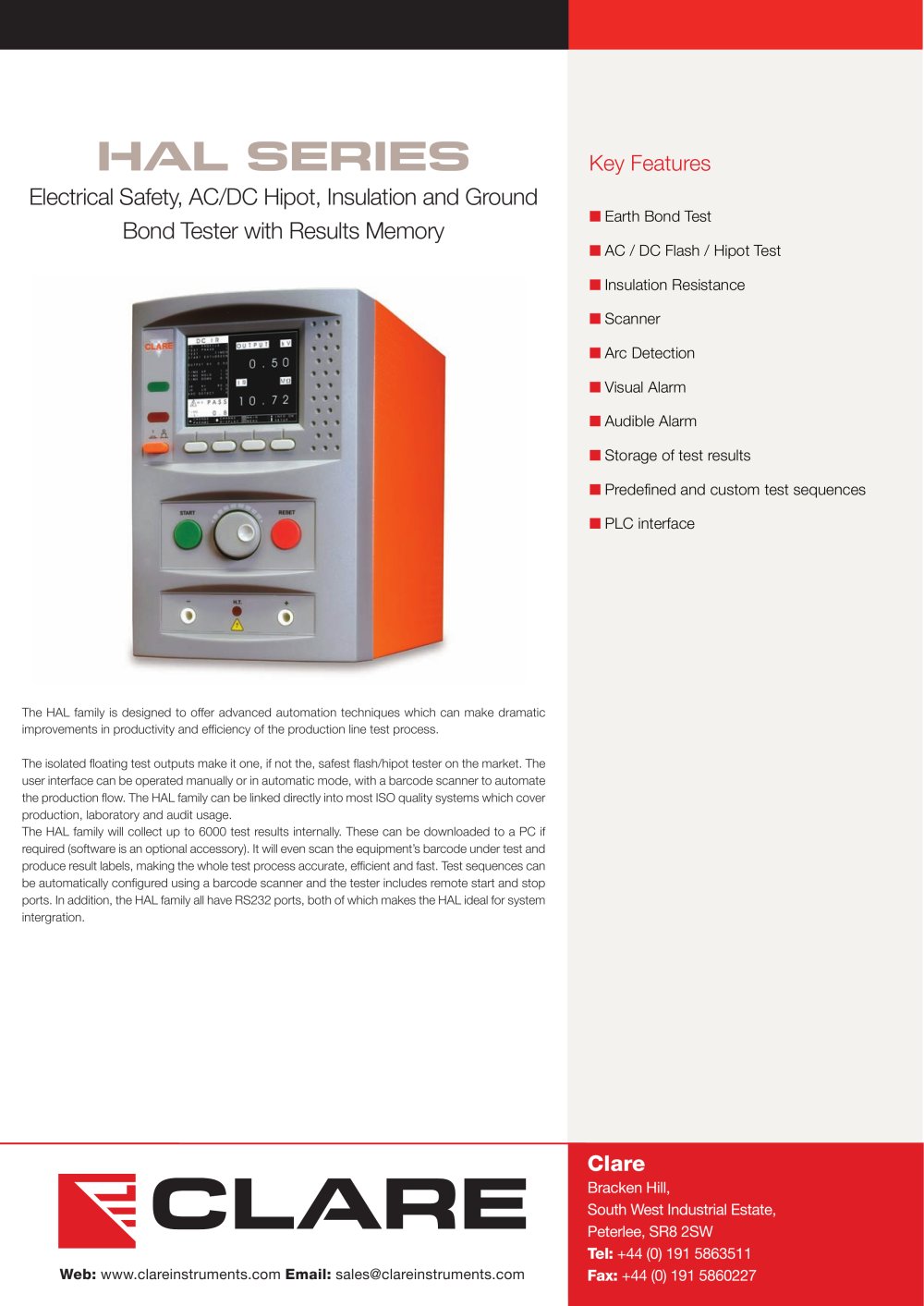

Clare HAL Series Datasheet (HAL, HAL Scan & HAL Combi) - 1

Clare Bracken Hill, SouthWest Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.clareinstruments.com Email: sales@clareinstruments.com Fax: +44 (0) 191 5860227 HAL Series Electrical Safety, AC/DC Hipot, Insulation and Ground Bond Tester with Results Memory The HAL family is designed to offer advanced automation techniques which can make dramatic improvements in productivity and efficiency of the production line test process. The isolated floating test outputs make it one, if not the, safest flash/hipot tester on the market. The user interface can be operated manually or in automatic mode, with a barcode scanner to automate the production flow. The HAL family can be linked directly into most ISO quality systems which cover production, laboratory and audit usage. The HAL family will collect up to 6000 test results internally. These can be downloaded to a PC if required (software is an optional accessory). It will even scan the equipment’s barcode under test and produce result labels, making the whole test process accurate, efficient and fast. Test sequences can be automatically configured using a barcode scanner and the tester includes remote start and stop ports. In addition, the HAL family all have RS232 ports, both of which makes the HAL ideal for system intergration. Key Features Earth Bond Test AC / DC Flash / Hipot Test Insulation Resistance Scanner Arc Detection Visual Alarm Audible Alarm Storage of test results Predefined and custom test sequences PLC interface

Open the catalog to page 1
Clare HAL Series Datasheet (HAL, HAL Scan & HAL Combi) - 2

Optional Extras Hardware 312A912 Desk Test 'n' Tag Printer 194A922 Barcode Scanner H-5014 Data Cable G2/5001 H103 Class I Output Socket Box H-5009 H101 Class I Output Socket Box H-5022 H101 Class II Output Socket Box H-5008 Foot Guard Switch DCS317 Guard Switch 01521/1 Earth Clip 01520/1 Earth Probe 03919/2 HT Probe - Yellow 03918/2 HT Probe - Red H-5017 Status Beacon H-5003 HT - Clip H-5030 Printer Lead (Desk Test 'n' Tag) Software 352A910 PATGuard Elite 2 – Premier 352A920 PATGuard Pro 2 – Professional 352A930 PATGuard Lite 2 – Entry level Service Onsite or return to base Service...

Open the catalog to page 2
Clare HAL Series Datasheet (HAL, HAL Scan & HAL Combi) - 3

Clare DominionWay, Worthing,West Sussex UK, BN14 8NW 1903 233314 www.clareinstruments.com Email: sales@clareinstruments.com 1903 216089 Mechanical Dimensions 370W x 300H x 204D mm Weight Approx 12kg Electrical Supply Voltage Selectable 115V / 230V 50 or 60Hz Operating Temperature 0°C to +40°C Storage Temperature -10°C to +60°C EN50191 Compliant when used with appropriate accessories Supplied With Class I Grounded Output Box (HAL Combi only) Guard Plug Earth Probe (HAL Combi only) HT Probe HT Clip Lead, 5 supplied (excluding HAL Combi) Mains Lead Instruction Manual Cropico Hampton Road,...

Open the catalog to page 3
