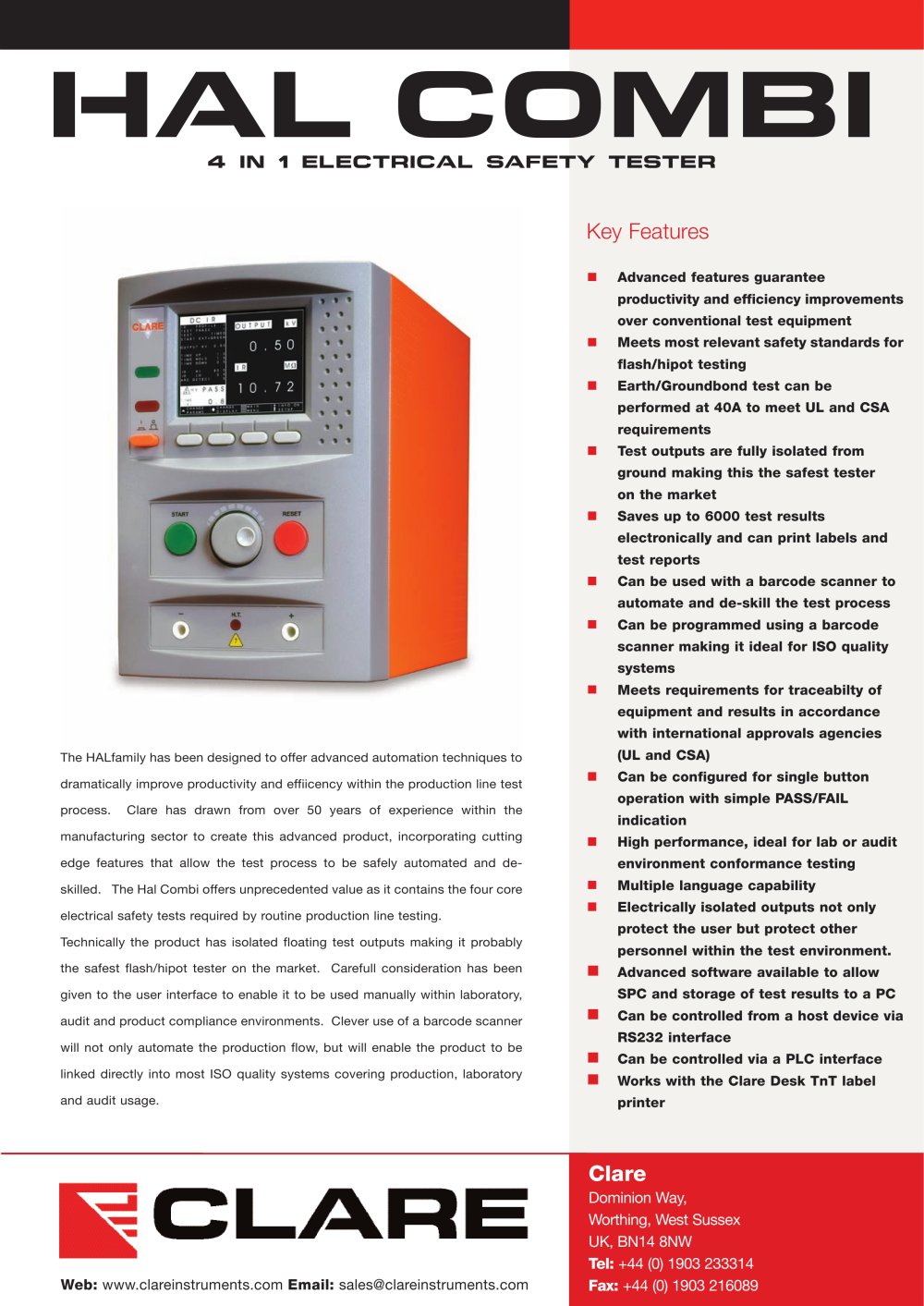

Clare HAL Combi Datasheet - 1

Clare Dominion Way, Worthing, West Sussex UK, BN14 8NW Tel: +44 (0) 1903 233314 Web: www.clareinstruments.com Email: sales@clareinstruments.com Fax: +44 (0) 1903 216089 HAL COMBI The HALfamily has been designed to offer advanced automation techniques to dramatically improve productivity and effiicency within the production line test process. Clare has drawn from over 50 years of experience within the manufacturing sector to create this advanced product, incorporating cutting edge features that allow the test process to be safely automated and deskilled. The Hal Combi offers unprecedented value as it contains the four core electrical safety tests required by routine production line testing. Technically the product has isolated floating test outputs making it probably the safest flash/hipot tester on the market. Carefull consideration has been given to the user interface to enable it to be used manually within laboratory, audit and product compliance environments. Clever use of a barcode scanner will not only automate the production flow, but will enable the product to be linked directly into most ISO quality systems covering production, laboratory and audit usage. 4 in 1 Electrical Safety Tester Key Features n Advanced features guarantee productivity and efficiency improvements over conventional test equipment n Meets most relevant safety standards for flash/hipot testing n Earth/Groundbond test can be performed at 40A to meet UL and CSA requirements n Test outputs are fully isolated from ground making this the safest tester on the market n Saves up to 6000 test results electronically and can print labels and test reports n Can be used with a barcode scanner to automate and de-skill the test process n Can be programmed using a barcode scanner making it ideal for ISO quality systems n Meets requirements for traceabilty of equipment and results in accordance with international approvals agencies (UL and CSA) n Can be configured for single button operation with simple PASS/FAIL indication n High performance, ideal for lab or audit environment conformance testing n Multiple language capability n Electrically isolated outputs not only protect the user but protect other personnel within the test environment. n Advanced software available to allow SPC and storage of test results to a PC n Can be controlled from a host device via RS232 interface n Can be controlled via a PLC interface n Works with the Clare Desk TnT label printer

Open the catalog to page 1
Clare HAL Combi Datasheet - 2

HAL COMBI SPECIFICATIONS AC Flash Hi-Pot Test Voltage Range: 0.100 – 5.000kV (programmable) Voltage Resolution: 10V/step (settable) Voltage Accuracy: 1% of reading +/- 2 digits Maximum Output Current: 20mA @ 5kV Display Current Range: 0.01 – 20.00mA Current Accuracy: 1% of reading +/- 2 digits Display Current Resolution: 0.01mA DC Flash Hi-Pot Test Voltage Range: 0.100 – 6.000kV (programmable) Voltage Resolution: 10V/step (settable) Voltage Accuracy: 1% of reading +/- 2 digits Maximum Output Current: 10mA @6kV Display Current Range : 0.01 – 10.00mA Current Accuracy: 1% of reading +/- 2...

Open the catalog to page 2
