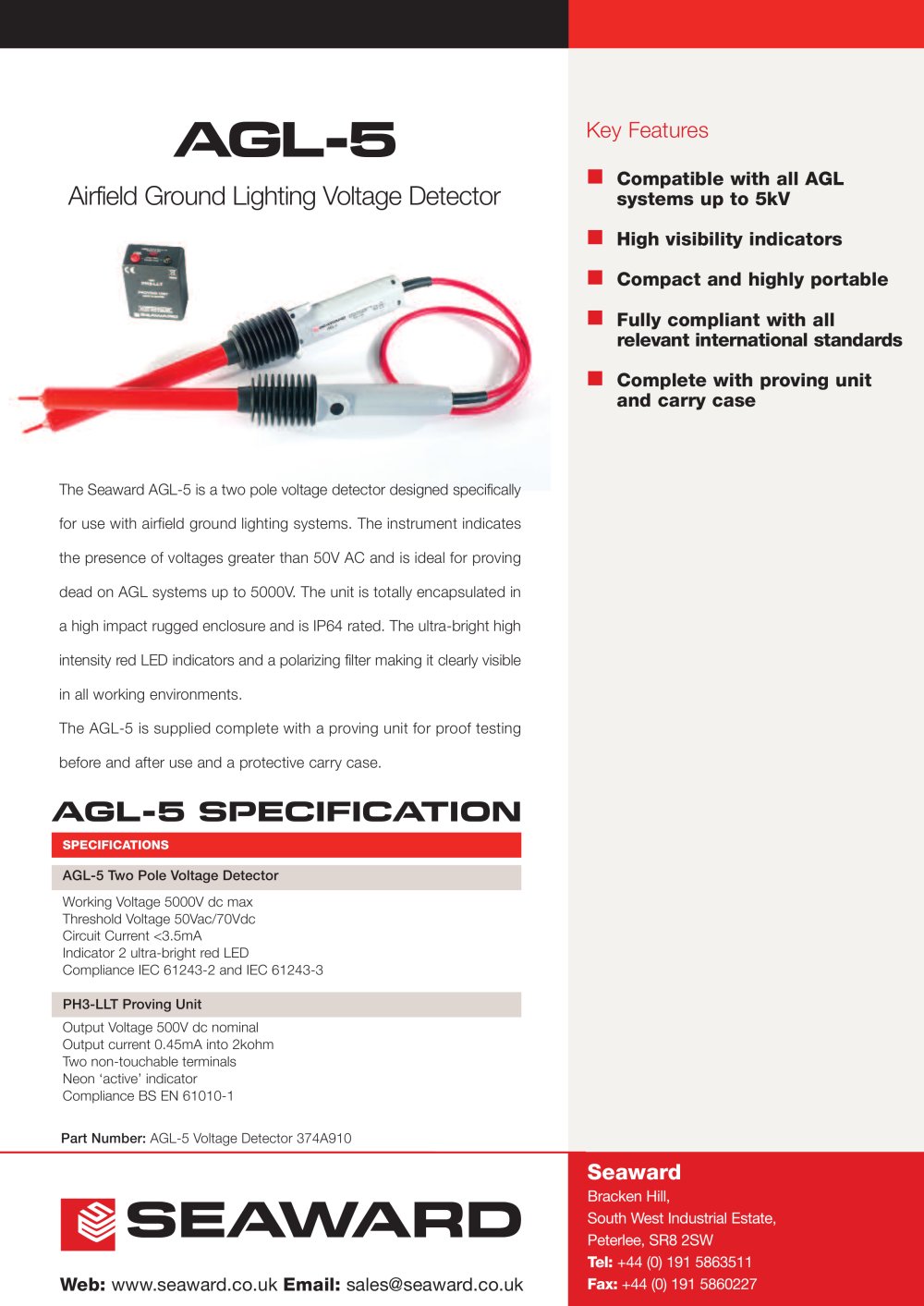

Seaward Bracken Hill, South West Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.seaward.co.uk Email: sales@seaward.co.uk Fax: +44 (0) 191 5860227 AGL-5 The Seaward AGL-5 is a two pole voltage detector designed specifically for use with airfield ground lighting systems. The instrument indicates the presence of voltages greater than 50V AC and is ideal for proving dead on AGL systems up to 5000V. The unit is totally encapsulated in a high impact rugged enclosure and is IP64 rated. The ultra-bright high intensity red LED indicators and a polarizing filter making it clearly visible in all working environments. The AGL-5 is supplied complete with a proving unit for proof testing before and after use and a protective carry case. Airfield Ground Lighting Voltage Detector Part Number: AGL-5 Voltage Detector 374A910 AGL-5 SPECIFICATION SPECIFICATIONS AGL-5 Two Pole Voltage Detector Working Voltage 5000V dc max Threshold Voltage 50Vac/70Vdc Circuit Current <3.5mA Indicator 2 ultra-bright red LED Compliance IEC 61243-2 and IEC 61243-3 PH3-LLT Proving Unit Output Voltage 500V dc nominal Output current 0.45mA into 2kohm Two non-touchable terminals Neon ‘active’ indicator Compliance BS EN 61010-1 Key Features  Compatible with all AGL systems up to 5kV  High visibility indicators  Compact and highly portable  Fully compliant with all relevant international standards  Complete with proving unit and carry case
