CORPORATE OFFICE
802 Industrial Hwy. East Riverton, NJ 08077-1910 Tel: (856) 303-1101 Fax: (856) 303-1501 www.seabox.com e-mail: sales@seabox.com

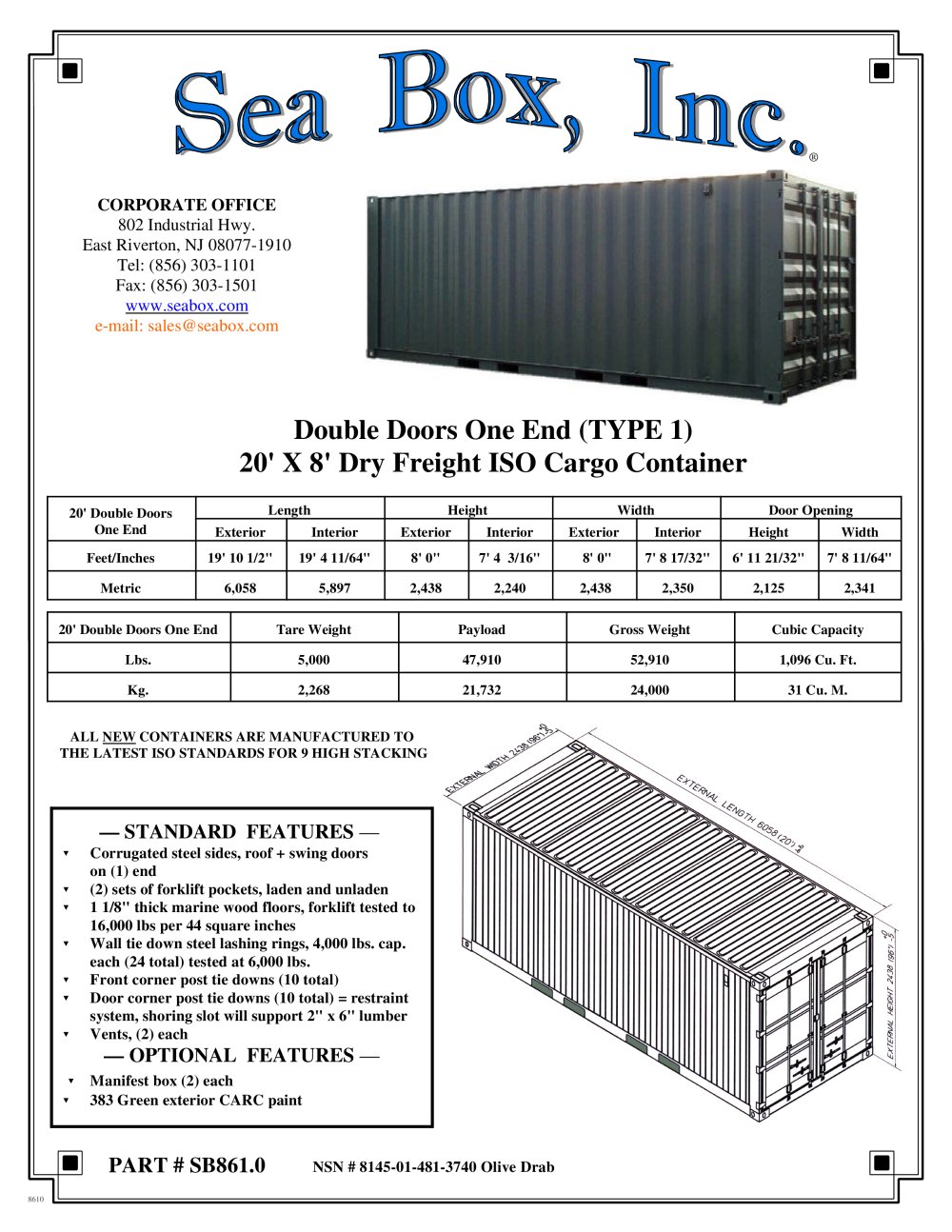

Double Doors One End (TYPE 1) 20' X 8' Dry Freight ISO Cargo Container
20' Double Doors One End
Length
Hei
ght
Width
Door Opening
Exterior
Interior
Exterior
Interior
Exterior
Interior
Height
Width
Feet/Inches
19' 10 1/2"
19' 4 11/64"
8' 0"
7' 4 3/16"
8' 0"
7' 8 17/32"
6' 11 21/32"
7' 8 11/64"
Metric
6,058
5,897
2,438
2,240
2,438
2,350
2,125
2,341
20' Double Doors One End
Tare Weight
Payload
Gross Weight
Cubic Capacity
Lbs.
5,000
47,910
52,910
1,096 Cu. Ft.
Kg.
2,268
21,732
24,000
31 Cu. M.
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARDS FOR 9 HIGH STACKING
— STANDARD FEATURES — Corrugated steel sides, roof + swing doors on (1) end
(2) sets of forklift pockets, laden and unladen
1 1/8" thick marine wood floors, forklift tested to
16,000 lbs per 44 square inches
Wall tie down steel lashing rings, 4,000 lbs. cap.
each (24 total) tested at 6,000 lbs.
Front corner post tie downs (10 total)
Door corner post tie downs (10 total) = restraint
system, shoring slot will support 2" x 6" lumber
Vents, (2) each
— OPTIONAL FEATURES —
Manifest box (2) each
383 Green exterior CARC paint
Y
Y
Y
Y
Y
Y
Y
T
Y
PART # SB861.0
NSN # 8145-01-481-3740 Olive Drab
