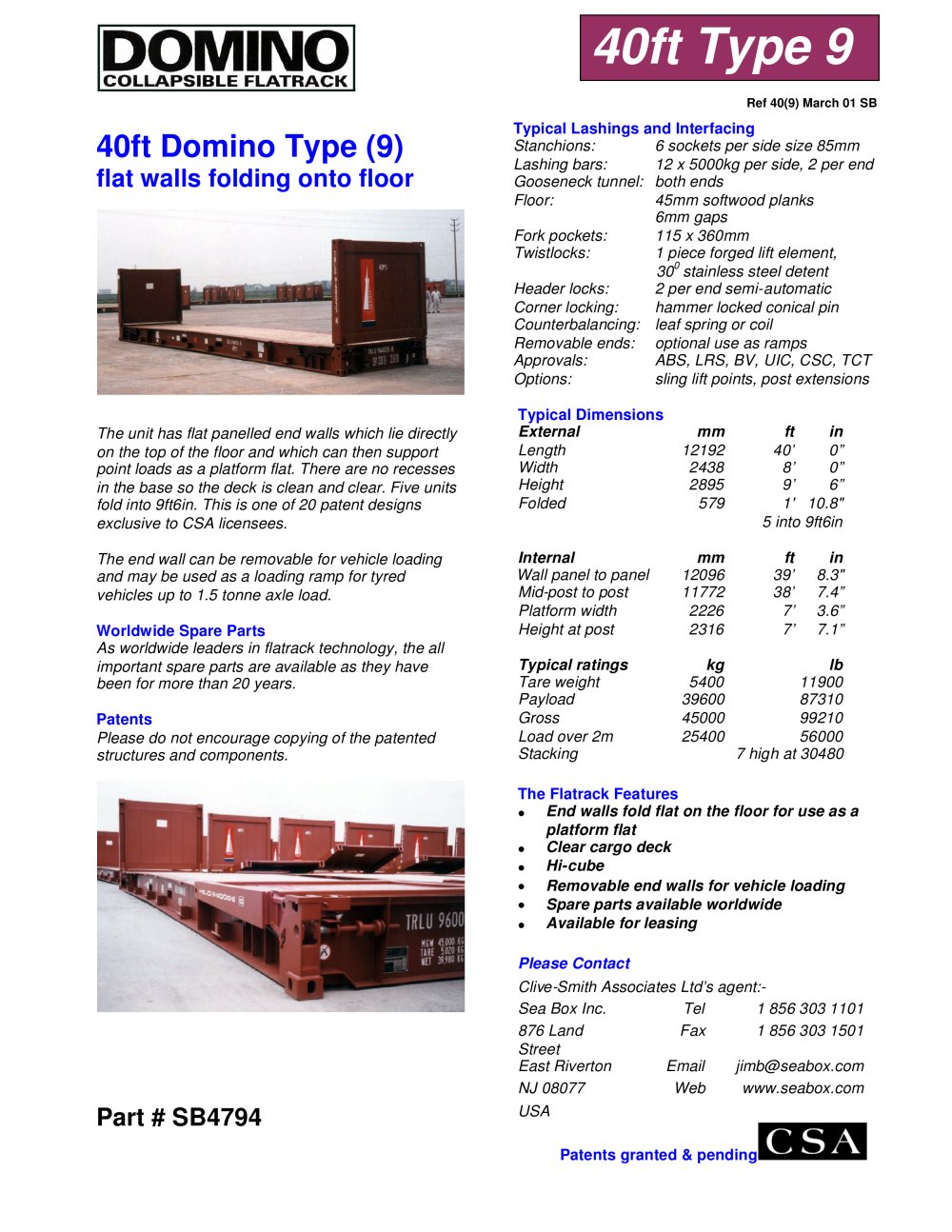

Ref 40(9) March 01 SB

and Interfacing

6 sockets per side size 85mm 12 x 5000kg per side, 2 per end both ends

45mm softwood planks 6mm gaps 115 x360mm

1 piece forged lift element, 30⁰ stainless steel detent

2 per end semi-automatic hammer locked conical pin leaf spring or coil optional use as ramps

ABS, LRS, BV, UIC, CSC, TCT sling lift points, post extensions

Typical Lashings

Stanchions: Lashing bars: Gooseneck tunnel: Floor:

Fork pockets: Twistlocks:

Header locks: Corner locking: Counterbalancing: Removable ends: Approvals: Options:

40ft Domino Type (9)

flat walls folding onto floor

Typical Dimensions


The unit has flat panelled end walls which lie directly	*External*	mm	ft	in
on the top of the floor and which can then support	Length	12192	40'	0"
point loads as a platform flat. There are no recesses	Width	2438	8'	0"
in the base so the deck is clean and clear. Five units	Height	2895	9'	6"
fold into 9ft6in. This is one of 20 patent designs	Folded	579	1'	10.8"
exclusive to CSA licensees.			5 into 9ft6in
The end wall can be removable for vehicle loading	*Internal*	mm	ft	in
and may be used as a loading ramp for tyred	Wall panel to panel	12096	39'	8 3"
vehicles up to 1.5 tonne axle load.	Mid-post to post	11772	38'	7 4"
vehicles up to 1.5 tonne axle load.	Platform width	2226	7'	3 6"
Worldwide Spare Parts	Height at post	2316	7'	7 1"
As worldwide leaders in flatrack technology, the all
important spare parts are available as they have	*Typical ratings*	kg		lb
been for more than 20 years.	Tare weight	5400		11900
been for more than 20 years.	Payload	39600		87310
Patents	Gross	45000		99210
Please do not encourage copying of the patented	Load over 2m	25400		56000
structures and components.	Stacking		7 high at	30480

The Flatrack Features

• End walls fold flat on the floor for use as a platform flat

• Clear cargo deck

• Hi-cube

• Removable end walls for vehicle loading

• Spare parts available worldwide

• Available for leasing

Please Contact

Clive-Smith Associates Ltd's agent:-

Sea Box Inc. 876 Land Street

East Riverton NJ 08077 USA

Tel 1 856 303 1101

Fax 1 856 303 1501

Email jimb@seabox.com

Web www.seabox.com

Part # SB4794

CSA

Patents granted & pendingl
