CORPORATE OFFICE

802 Industrial Hwy. East Riverton, NJ 08077-1910 Tel: (856) 303-1101 Fax: (856) 303-1501 www.seabox.com e-mail: sales@seabox.com

Generator Sets "Clip On" Type

The"clip-on" generator set is designed to clip on to the front frame of a refrigerated container. The water cooled diesel generator can provide continuous (single voltage) electrical power to intermodal refrigerated containers.

This unit is self contained with an integral 78 U.S. gallon (295 liter) fuel tank combined with engine, generator, battery and all operating controls.


Dimensions
Clip On	Length	Height	Depth
Ft. / In.	7' 8"	3' 6 5/8"	2' 1"
mm	2,337	1,083	635


Clip On	Tare w/out fuel	Tare w/ 102 gallon tank	Tare w/ 130 gallon tank
Lbs.	1,675	2,395	2,550
Kg.	760	1,086	1,157

— FEATURES Power: 15kW, 18.7kva, (33 hp)@ 1800 rpm Output: 460V @ 60Hz Container clip-on to top header with pins All steel frame with integral 130 gallon fuel tank Solid-state battery charger Electrostatic coated tube and fin radiator 12V DC maintenance-free battery CEE-17 female outlet receptacle with circuit breaker — ENGINE —

Kubota 134 cubic inch (2.2 liter) 4 cylinder water-cooled direct injected engine Lima-Mac 460V AC, 15kW generator 460V Receptacle CEE-17, 460VAC 32 amps Carrier P/N22-01561-00

This unit is designed for quick installation to the front frame of nearly all 20' and 40' refrigerated ISO containers

Warranty - standard 2 years, complete genset

PART # SB572

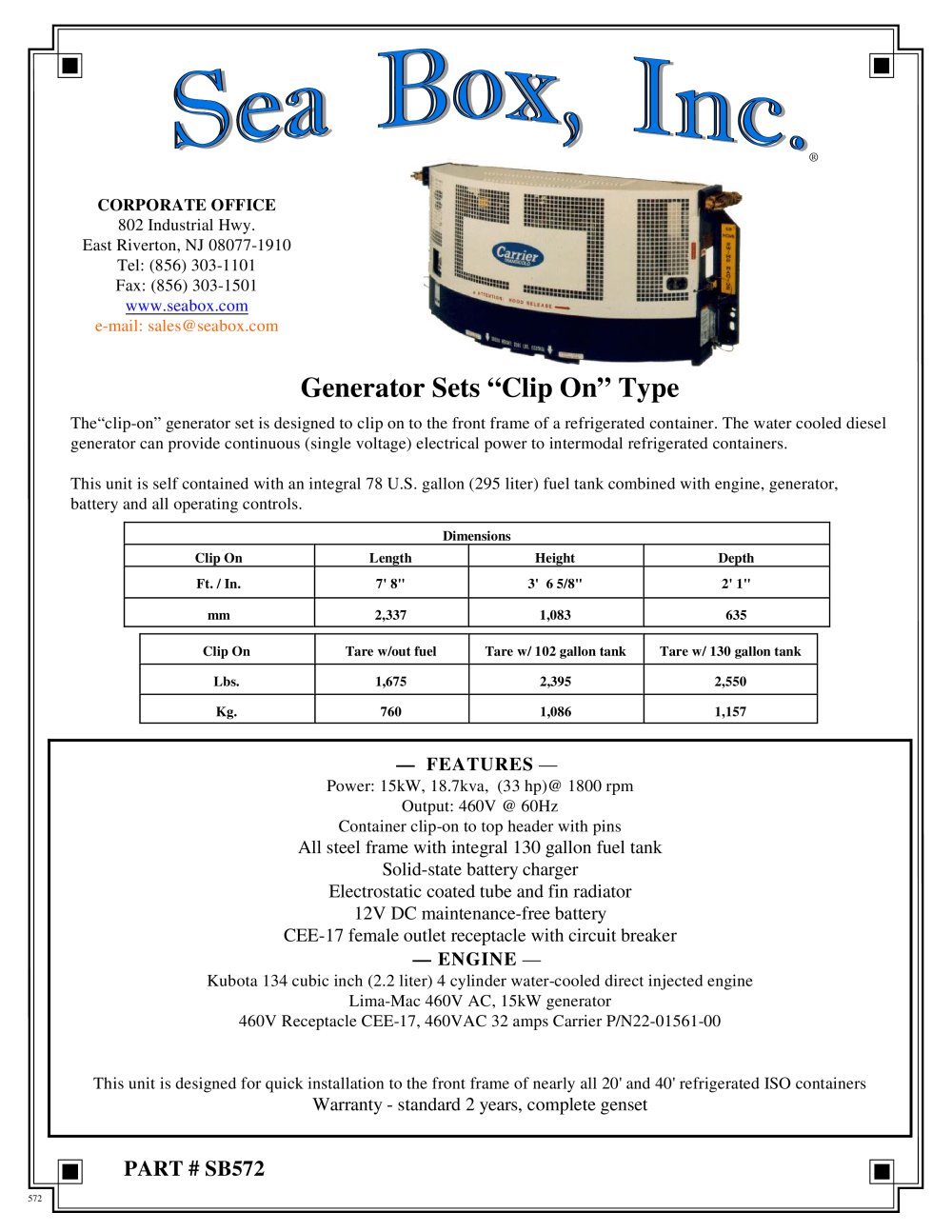

Clip-On Generator Set - Sea Box - #1
