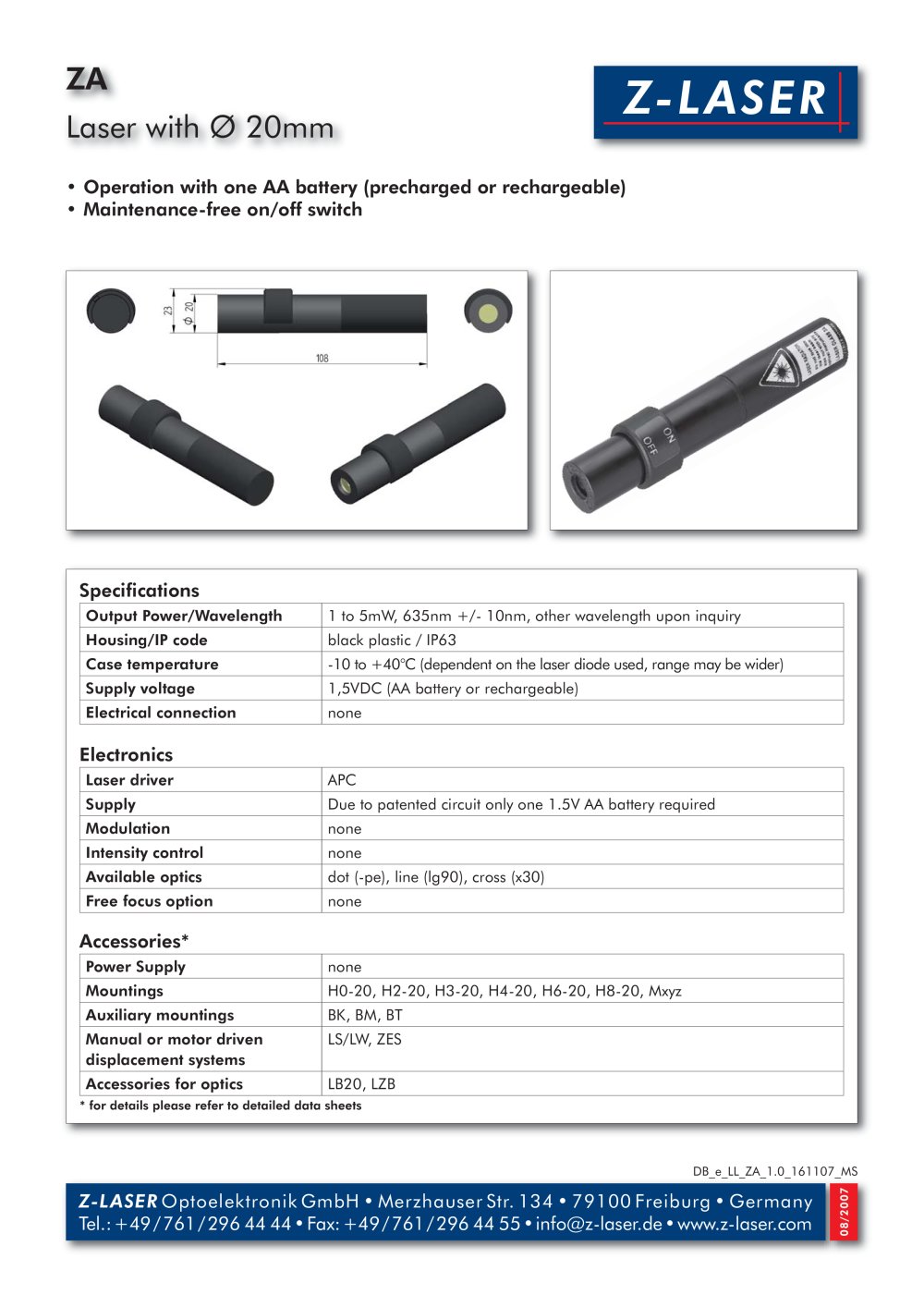

ZA Laser with Ø 20mm

ZA - Laser with Ø 20mm - 36367 Z-LASER

Operation with one AA battery (precharged or rechargeable)Maintenance-free on/off switch•• Specifications

Output Power/Wavelength 1 to 5mW, 635nm +/- 10nm, other wavelength upon inquiry Housing/IP code black plastic / IP63 Case temperature -10 to +40°C (dependent on the laser diode used, range may be wider) Supply voltage 1,5VDC (AA battery or rechargeable) Electrical connection none

Electronics

Laser driver APC Supply Due to patented circuit only one 1.5V AA battery required Modulation none Intensity control none Available optics dot (-pe), line (lg90), cross (x30) Free focus option none

Accessories*

Power Supply none Mountings H0-20, H2-20, H3-20, H4-20, H6-20, H8-20, Mxyz Auxiliary mountings BK, BM, BT Manual or motor driven displacement systems LS/LW, ZES Accessories for optics LB20, LZB
* for details please refer to detailed data sheets DB_e_LL_ZA_1.0_161107_MS

Z-LASER Optoelektronik GmbH • Merzhauser Str. 134 • 79100 Freiburg • GermanyTel.: +49 / 761 / 296 44 44 • Fax: +49 / 761 / 296 44 55 • info@z-laser.de • www.z-laser.com

08/2007
