Laser Energy Meter With High Dynamic Range

Laser Energy Meter With High Dynamic Range - 36367 PM 200

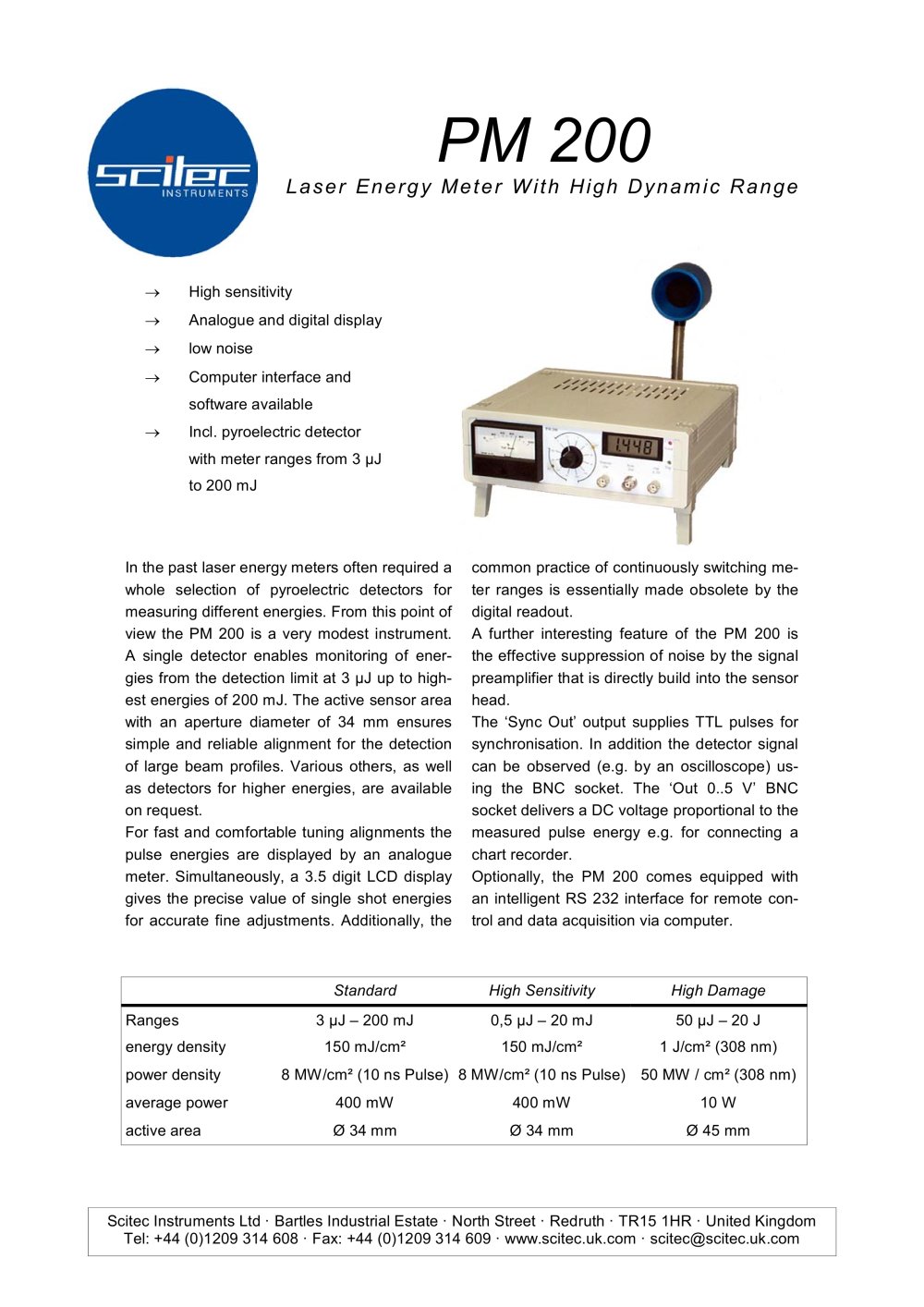

High sensitivity Analogue and digital display low noise Computer interface and software available Incl. pyroelectric detector with meter ranges from 3 µJ to 200 mJ In the past laser energy meters often required a whole selection of pyroelectric detectors for measuring different energies. From this point of view the PM 200 is a very modest instrument. A single detector enables monitoring of ener-gies from the detection limit at 3 µJ up to high- est energies of 200 mJ. The active sensor area with an aperture diameter of 34 mm ensures simple and reliable alignment for the detection of large beam profiles. Various others, as well as detectors for higher energies, are available on request. For fast and comfortable tuning alignments the pulse energies are displayed by an analogue meter. Simultaneously, a 3.5 digit LCD display gives the precise value of single shot energies for accurate fine adjustments. Additionally, the common practice of continuously switching me-ter ranges is essentially made obsolete by the digital readout. A further interesting feature of the PM 200 is the effective suppression of noise by the signal preamplifier that is directly build into the sensor head. The ‘Sync Out’ output supplies TTL pulses for synchronisation. In addition the detector signal can be observed (e.g. by an oscilloscope) us-ing the BNC socket. The ‘Out 0..5 V’ BNC socket delivers a DC voltage proportional to the measured pulse energy e.g. for connecting a chart recorder. Optionally, the PM 200 comes equipped with an intelligent RS 232 interface for remote con- trol and data acquisition via computer. Standard High Sensitivity High Damage Ranges 3 µJ – 200 mJ 0,5 µJ – 20 mJ 50 µJ – 20 J energy density 150 mJ/cm² 150 mJ/cm² 1 J/cm² (308 nm) power density 8 MW/cm² (10 ns Pulse) 8 MW/cm² (10 ns Pulse) 50 MW / cm² (308 nm) average power 400 mW 400 mW 10 W active area Ø 34 mm Ø 34 mm Ø 45 mm Scitec Instruments Ltd · Bartles Industrial Estate · North Street · Redruth · TR15 1HR · United Kingdom Tel: +44 (0)1209 314 608 · Fax: +44 (0)1209 314 609 · www.scitec.uk.com · scitec@scitec.uk.com
