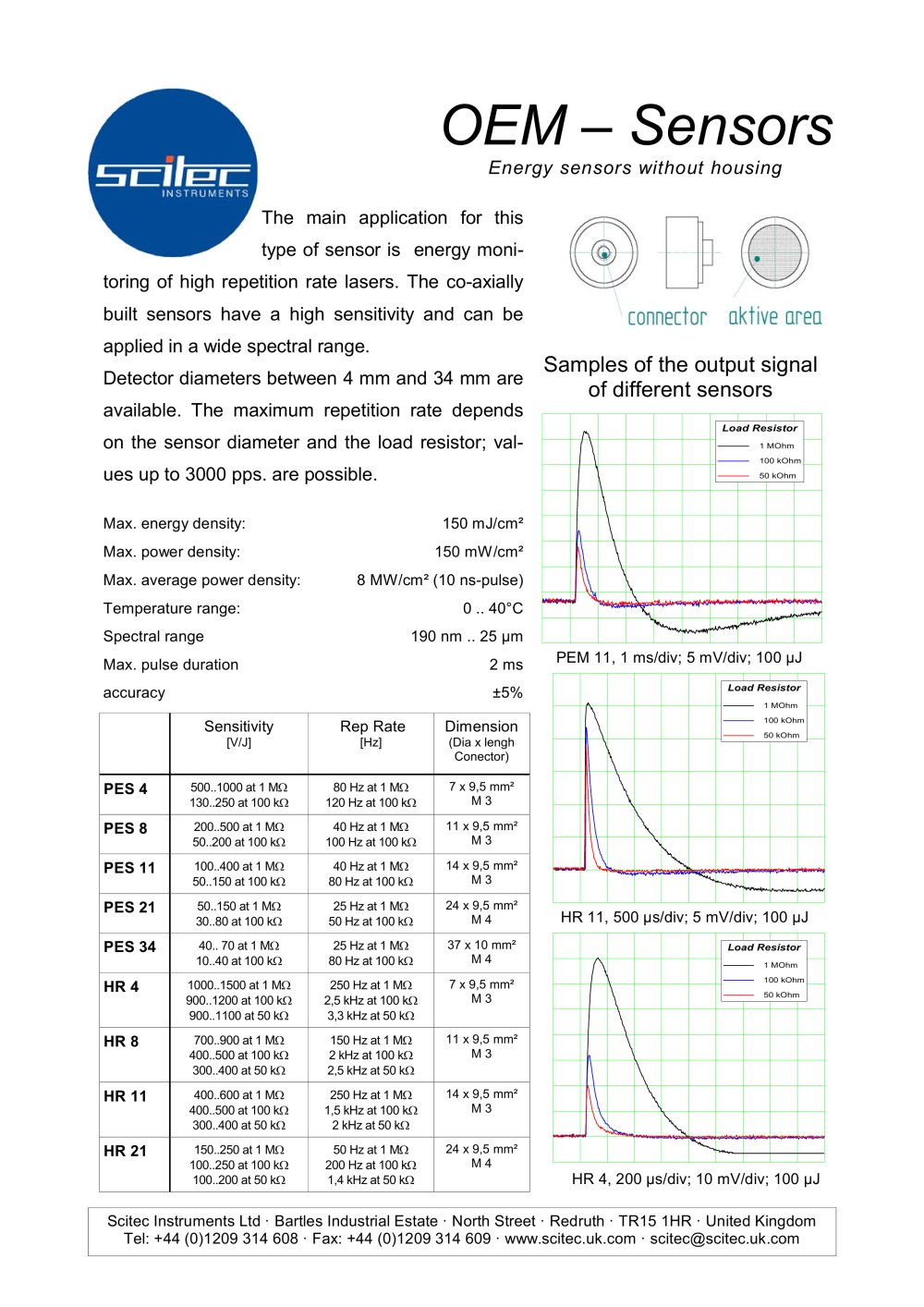

OEM – Sensors

Energy sensors without housing The main application for this type of sensor is energy moni-toring of high repetition rate lasers. The co-axially built sensors have a high sensitivity and can be applied in a wide spectral range. Detector diameters between 4 mm and 34 mm are available. The maximum repetition rate depends on the sensor diameter and the load resistor; val-ues up to 3000 pps. are possible.

Samples of the output signal of different sensors

Load Resistor 1 MOhm 100 kOhm 50 kOhm

Max. energy density: 150 mJ/cm² Max. power density: 150 mW/cm² Max. average power density: 8 MW/cm² (10 ns-pulse) Temperature range: 0 .. 40°C Spectral range 190 nm .. 25 µm Max. pulse duration 2 ms PEM 11, 1 ms/div; 5 mV/div; 100 µJ accuracy ±5%

Load Resistor 1 MOhm

Sensitivity Rep Rate Dimension

100 kOhm [V/J] [Hz] (Dia x lengh Conector)
50 kOhm

PES 4

500..1000 at 1 M 130..250 at 100 k 80 Hz at 1 M 120 Hz at 100 k 7 x 9,5 mm² M 3

PES 8

200..500 at 1 M 50..200 at 100 k 40 Hz at 1 M 100 Hz at 100 k 11 x 9,5 mm² M 3

PES 11

100..400 at 1 M 50..150 at 100 k 40 Hz at 1 M 80 Hz at 100 k 14 x 9,5 mm² M 3

PES 21

50..150 at 1 M 30..80 at 100 k 25 Hz at 1 M 50 Hz at 100 k 24 x 9,5 mm² M 4

HR 11, 500 µs/div; 5 mV/div; 100 µJ PES 34

40.. 70 at 1 M 10..40 at 100 k 25 Hz at 1 M 80 Hz at 100 k 37 x 10 mm² M 4
Load Resistor 1 MOhm

HR 4

1000..1500 at 1 M 900..1200 at 100 k 250 Hz at 1 M 7 x 9,5 mm² M 3
100 kOhm 2,5 kHz at 100 k
50 kOhm 900..1100 at 50 k 3,3 kHz at 50 k

HR 8

700..900 at 1 M 400..500 at 100 k 150 Hz at 1 M 11 x 9,5 mm² M 3 2 kHz at 100 k 300..400 at 50 k 2,5 kHz at 50 k

HR 11

400..600 at 1 M 400..500 at 100 k 250 Hz at 1 M 14 x 9,5 mm² M 3 1,5 kHz at 100 k 300..400 at 50 k 2 kHz at 50 k

HR 21

150..250 at 1 M 100..250 at 100 k 50 Hz at 1 M 24 x 9,5 mm² M 4 200 Hz at 100 k 100..200 at 50 k 1,4 kHz at 50 k

HR 4, 200 µs/div; 10 mV/div; 100 µJ Scitec Instruments Ltd · Bartles Industrial Estate · North Street · Redruth · TR15 1HR · United Kingdom Tel: +44 (0)1209 314 608 · Fax: +44 (0)1209 314 609 · www.scitec.uk.com · scitec@scitec.uk.com
