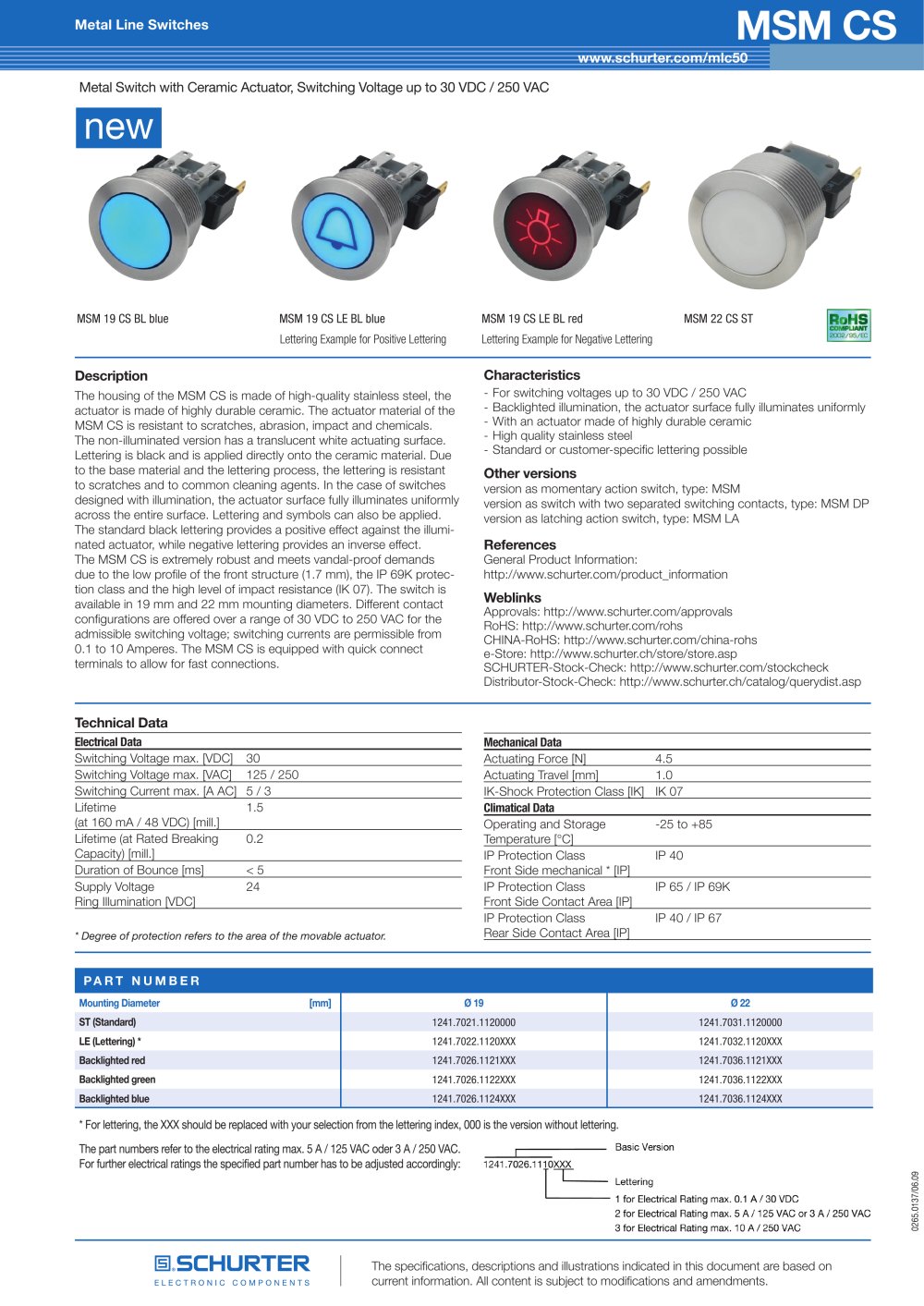

MSM CS

Metal Line Switches

Metal Switch with Ceramic Actuator, Switching Voltage up to 30 VDC / 250 VAC

new

MSM 19 CS BL blue

MSM 19 CS LE BL blue

Lettering Example for Positive Lettering

MSM 19 CS LE BL red

Lettering Example for Negative Lettering

MSM 22 CS ST

RoHS

COM

Description

The housing of the MSM CS is made of high-quality stainless steel, the actuator is made of highly durable ceramic. The actuator material of the MSM CS is resistant to scratches, abrasion, impact and chemicals. The non-illuminated version has a translucent white actuating surface. Lettering is black and is applied directly onto the ceramic material. Due to the base material and the lettering process, the lettering is resistant to scratches and to common cleaning agents. In the case of switches designed with illumination, the actuator surface fully illuminates uniformly across the entire surface. Lettering and symbols can also be applied. The standard black lettering provides a positive effect against the illuminated actuator, while negative lettering provides an inverse effect. The MSM CS is extremely robust and meets vandal-proof demands due to the low profile of the front structure (1.7 mm), the IP 69K protection class and the high level of impact resistance (IK 07). The switch is available in 19 mm and 22 mm mounting diameters. Different contact configurations are offered over a range of 30 VDC to 250 VAC for the admissible switching voltage; switching currents are permissible from 0.1 to 10 Amperes. The MSM CS is equipped with quick connect terminals to allow for fast connections.

Characteristics

- For switching voltages up to 30 VDC / 250 VAC

- Backlighted illumination, the actuator surface fully illuminates uniformly

- With an actuator made of highly durable ceramic

- High quality stainless steel

- Standard or customer-specific lettering possible

Other versions

version as momentary action switch, type: MSM

version as switch with two separated switching contacts, type: MSM DP

version as latching action switch, type: MSM LA

References

General Product Information: http://www.schurter.com/product_information

Weblinks

Approvals: http://www.schurter.com/approvals RoHS: http://www.schurter.com/rohs CHINA-RoHS: http://www.schurter.com/china-rohs e-Store: http://www.schurter.ch/store/store.asp SCHURTER-Stock-Check: http://www.schurter.com/stockcheck Distributor-Stock-Check: http://www.schurter.ch/catalog/querydist.asp

Technical Data


Electrical Data		Mechanical Data
Switching Voltage max. [VDC]	30	Actuating Force [N]	4.5
Switching Voltage max. [VAC]	125 / 250	Actuating Travel [mm]	1.0
Switching Current max. [A AC]	5 / 3	IK-Shock Protection Class [IK]	IK 07
Lifetime	1.5	Olimatical Data
(at 160 mA / 48 VDC) [mill.]		Operating and Storage	-25 to +85
Lifetime (at Rated Breaking	0.2	Temperature [°C]
Capacity) [mill.]		IP Protection Class	IP 40
Duration of Bounce [ms]	< 5	Front Side mechanical * [IP]
Supply Voltage	24	IP Protection Class	IP 65 / IP 69K
Ring Illumination [VDC]		Front Side Contact Area [IP]
		IP Protection Class	IP 40 / IP 67
* Degree of protection refers to the area of the movable actuator.		Rear Side Contact Area [IP]

PART NUMBER

Mounting Diameter ST (Standard) LE (Lettering) * Backlighted red Backlighted green Backlighted blue

[mm]

0 19

1241.7021.1120000 1241.7022.1120XXX 1241.7026.1121XXX 1241.7026.1122XXX 1241.7026.1124XXX

0 22

1241.7031.1120000 1241.7032.1120XXX 1241.7036.1121XXX 1241.7036.1122XXX 1241.7036.1124XXX

* For lettering, the XXX should be replaced with your selection from the lettering index, 000 is the version without lettering.

The part numbers refer to the electrical rating max. 5 A / 125 VAC oder 3 A / 250 VAC. For further electrical ratings the specified part number has to be adjusted accordingly:

ËLSCHURTER

ELECTRONIC COMPONENTS

The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments.
