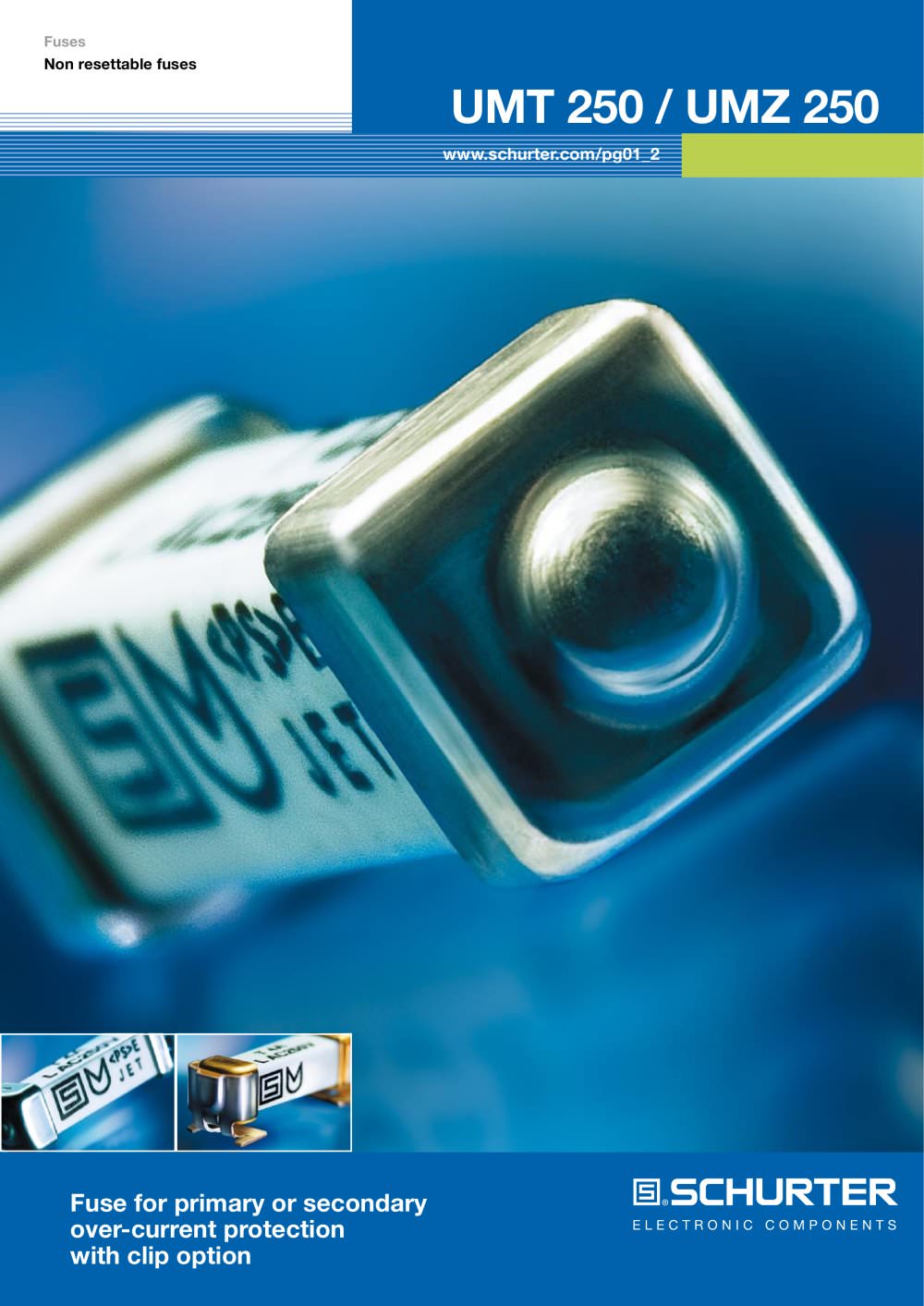

Fuses Non resettable fuses www.schurter.com/pg01_2 UMT 250 / UMZ 250 Fuse for primary or secondary over-current protection with clip option

Open the catalog to page 1

Non resettable fuses Fuses Surface Mount Fuse, 10.1 x 3 mm, Time-Lag T, 250 VAC, 125 VDC IEC 60127-4 · 250 VAC · 125 VDC · Time-Lag T Description - High current range from 80 mA to 10 A - High breaking capacity of 200 A @ 250 VAC (IEC) - UL approval for 277 VAC and 250 VDC Standards - IEC 60127-4/2 - UL 248-14 - CSA C22.2 no. 248.14 Approvals - VDE License Number: 40013121 (UMT 250) - UL File Number: E41599 (cURus), E300707 (UL) Applications - Primary Protection on SMD PCB - Industrial electronic - Medical equipments Weblinks Approvals: http://www.schurter.com/approvals RoHS:...

Open the catalog to page 2

Non resettable fuses Fuses Surface Mount Fuse with Clip, 11.1 x 3.8 mm, Time-Lag T, UMZ 250 = UMT 250 (Au) + UMC 250 IEC 60127-4 · 250 VAC · 125 VDC · Time-Lag T Description - Explanation VDE/UL Approvals UMT 250, UMT 250 (Au), UMC 250, see variants - High breaking capacity of 200 A @ 250 VAC (IEC) - UL approval for 277 VAC and 250 VDC Standards - IEC 60127-4/2 - UL 248-14 - CSA C22.2 no. 248.14 Approvals - VDE License Number: 40013121 (UMT 250 (Au)), 40023291 (UMC 250) - UL File Number: E41599 Applications - Primary Protection on SMD PCB - Industrial electronic Weblinks Approvals:...

Open the catalog to page 4

UMZ 250 www.schurter.com/pg01_2 Pre-Arcing Time Rated Current In 1.25 x In min. 2.0 x In max. 10.0 x In min. 10.0 x In max. 0.315 A - 4.0 A 60 min 120 s 10 ms 100 ms Variants Rated Current [A] Rated Voltage [VAC] Rated Voltage [VDC] Breaking Capacity Voltage Drop 1.0 In max. [mV] Voltage Drop 1.0 In typ. [mV] Power Dissipation 1.25 In max [mW] Melting I²t 10.0 Intyp. [A²s] Order Number 0.315 250 125 1) 750 344 500 0.27 3404.2411.xx 0.4 250 125 1) 700 320 500 0.4 3404.2412.xx 0.5 250 125 1) 600 264 500 0.54 3404.2413.xx 0.63 250 125 1) 500 216 500 1.1 3404.2414.xx 0.8 250 125 1) 400 174 500...

Open the catalog to page 5

Fuse Kit UMT 250 / UMZ 250 www.schurter.com/pg01_2 UMT 250 Fuse Kit UMT 250 / UMZ 250 0034.9889 / 01.08 Your Contact http://www.schurter.com/approvals UMZ 250 Non resettable fuses Total Quantity: 180 pieces www.schurter.com/pg01_2 IEC 60127-4 · 250 VAC · 125 VDC · Time-Lag T UMT 250 80 mA 3403.0155.xx UMT 250 400 mA 3403.0162.xx UMT 250 1 A 3403.0166.xx UMT 250 2.5 A 3403.0170.xx UMT 250 6.3 A 3403.0174.xx UMZ 250 315 mA 3404.2411.xx UMT 250 500 mA 3403.0163.xx UMT 250 1.6 A 3403.0168.xx UMT 250 4 A 3403.0172.xx UMT 250 8 A 3403.0175.xx UMZ 250 1.25 A 3404.2417.xx UMT 250 800 mA...

Open the catalog to page 7

www.schurter.com SCHURTER develops, manufactures and markets components for the electronics industries worldwide. fuses connectors circuit breakers input systems emc-products 0165.0462 / 07.08
