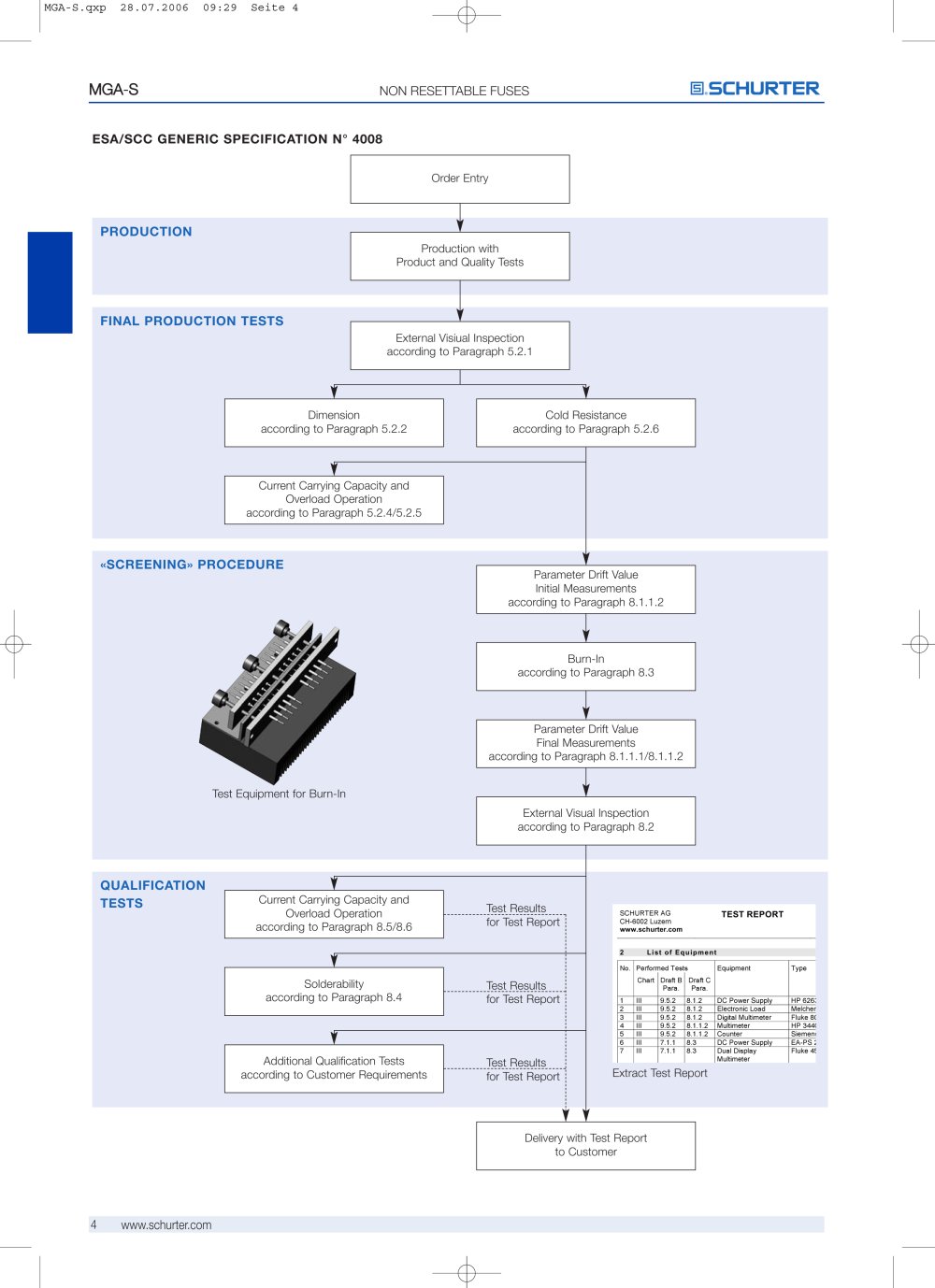

MGA-S.qxp 28.07.2006 09:29 Seite 4
Flyer MGA-S - 7208 MGA-S
NON RESETTABLE FUSES
Order Entry
PRODUCTION
Production with Product and Quality Tests
FINAL PRODUCTION TESTS
External Visiual Inspection according to Paragraph 5.2.1 Dimension according to Paragraph 5.2.2 Cold Resistance according to Paragraph 5.2.6 Current Carrying Capacity and Overload Operationaccording to Paragraph 5.2.4/5.2.5
«SCREENING» PROCEDURE
Parameter Drift ValueInitial Measurements according to Paragraph 8.1.1.2 Burn-Inaccording to Paragraph 8.3 Parameter Drift ValueFinal Measurements according to Paragraph 8.1.1.1/8.1.1.2 External Visual Inspection according to Paragraph 8.2
QUALIFICATION TESTS ESA/SCC GENERIC SPECIFICATION N°4008
Current Carrying Capacity and Overload Operationaccording to Paragraph 8.5/8.6 Test Results for Test ReportTest Results for Test ReportTest Results for Test Report
Test Equipment for Burn-In
SCHURTER AG CH-6002 Luzern
TEST REPORT
www.schurter.com 2 ListofEquipment No. Performed Tests Equipment Type
Solderability according to Paragraph 8.4
Chart Draft B Para. Draft C Para. 1 III 9.5.2 8.1.2 DC Power Supply HP 626 3 2 III 9.5.2 8.1.2 Electronic Load Melche r 3 III 9.5.2 8.1.2 Digital Multimeter Fluke 8 4 III 9.5.2 8.1.1.2 Multimeter HP 344 5 III 9.5.2 8.1.1.2 Counter Siemen s 6 III 7.1.1 8.3 DC Power Supply EA-PS 2 7 III 7.1.1 8.3 Dual Display Multimeter Fluke 4 5
Additional Qualification Tests according to Customer Requirements Extract Test Report Delivery with Test Report to Customer
4 www.schurter.com
