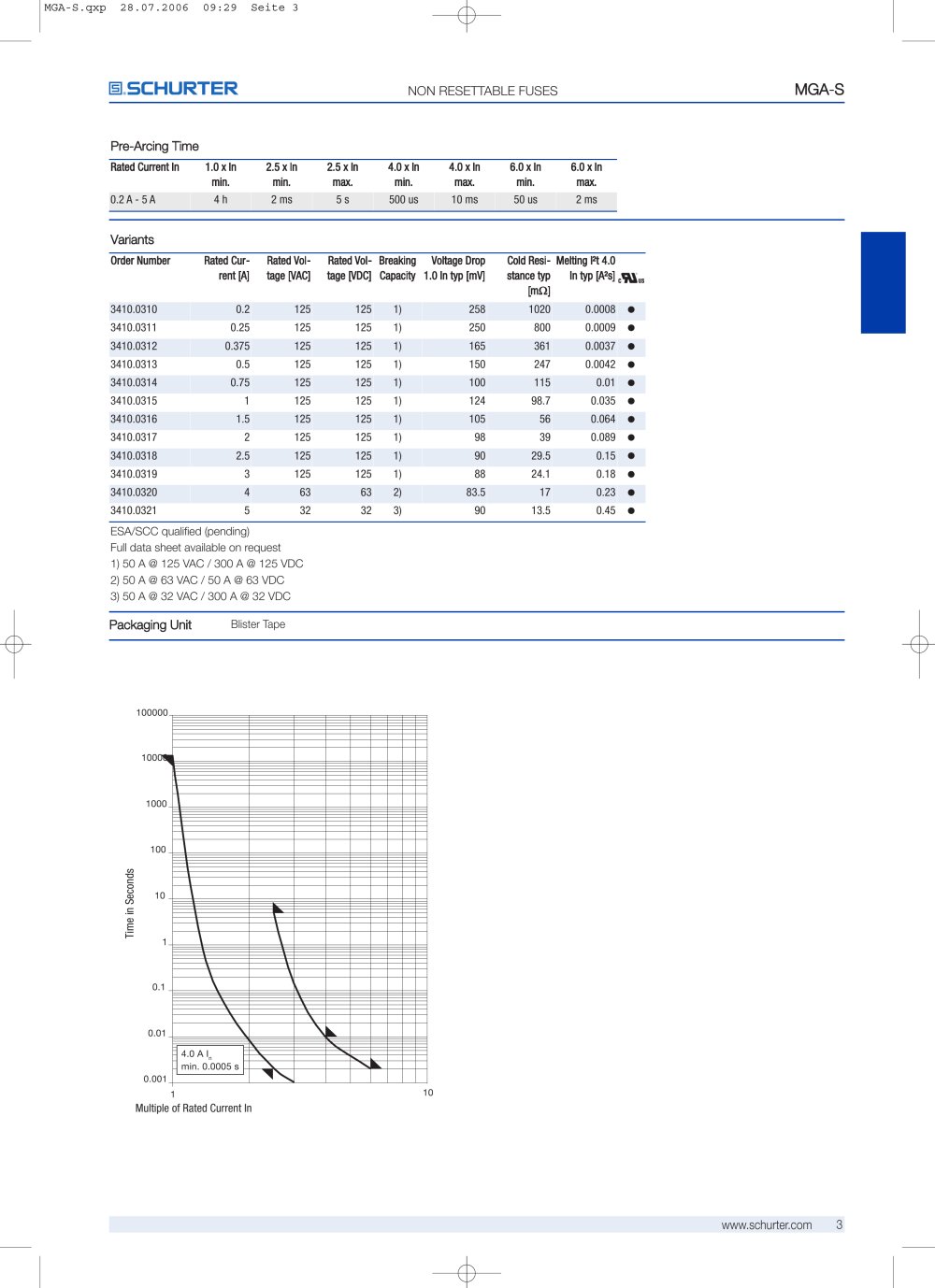

NON RESETTABLE FUSES

Flyer MGA-S - 7208 MGA-S

Pre-Arcing Time

Rated Current In 1.0 x Inmin. 2.5 x Inmin. 2.5 x Inmax. 4.0 x Inmin. 4.0 x Inmax. 6.0 x Inmin. 6.0 x Inmax. 0.2 A - 5 A 4 h 2 ms 5 s 500 us 10 ms 50 us 2 ms

Variants

Order Number Rated Cur-rent [A] Rated Vol-tage [VAC] Rated Vol-tage [VDC] BreakingCapacity Voltage Drop1.0 In typ [mV] Cold Resi-stance typ[m Melting I²t 4.0In typ [A²s] Ω ] 3410.0310 0.2 125 125 1) 258 1020 0.0008 3410.0311 0.25 125 125 1) 250 800 0.0009 3410.0312 0.375 125 125 1) 165 361 0.0037 3410.0313 0.5 125 125 1) 150 247 0.0042 3410.0314 0.75 125 125 1) 100 115 0.01 3410.0315 1 125 125 1) 124 98.7 0.035 3410.0316 1.5 125 125 1) 105 56 0.064 3410.0317 2 125 125 1) 98 39 0.089 3410.0318 2.5 125 125 1) 90 29.5 0.15 3410.0319 3 125 125 1) 88 24.1 0.18 3410.0320 4 63 63 2) 83.5 17 0.23 3410.0321 5 32 32 3) 90 13.5 0.45 ESA/SCC qualified (pending) Full data sheet available on request 1) 50 A @ 125 VAC / 300 A @ 125 VDC 2) 50 A @ 63 VAC / 50 A @ 63 VDC 3) 50 A @ 32 VAC / 300 A @ 32 VDC

Packaging Unit

Blister Tape
Time in Seconds 0.010.1110100100010000100000 110 4.0 A I n min. 0.0005 s 0.001 Multiple of Rated Current In
