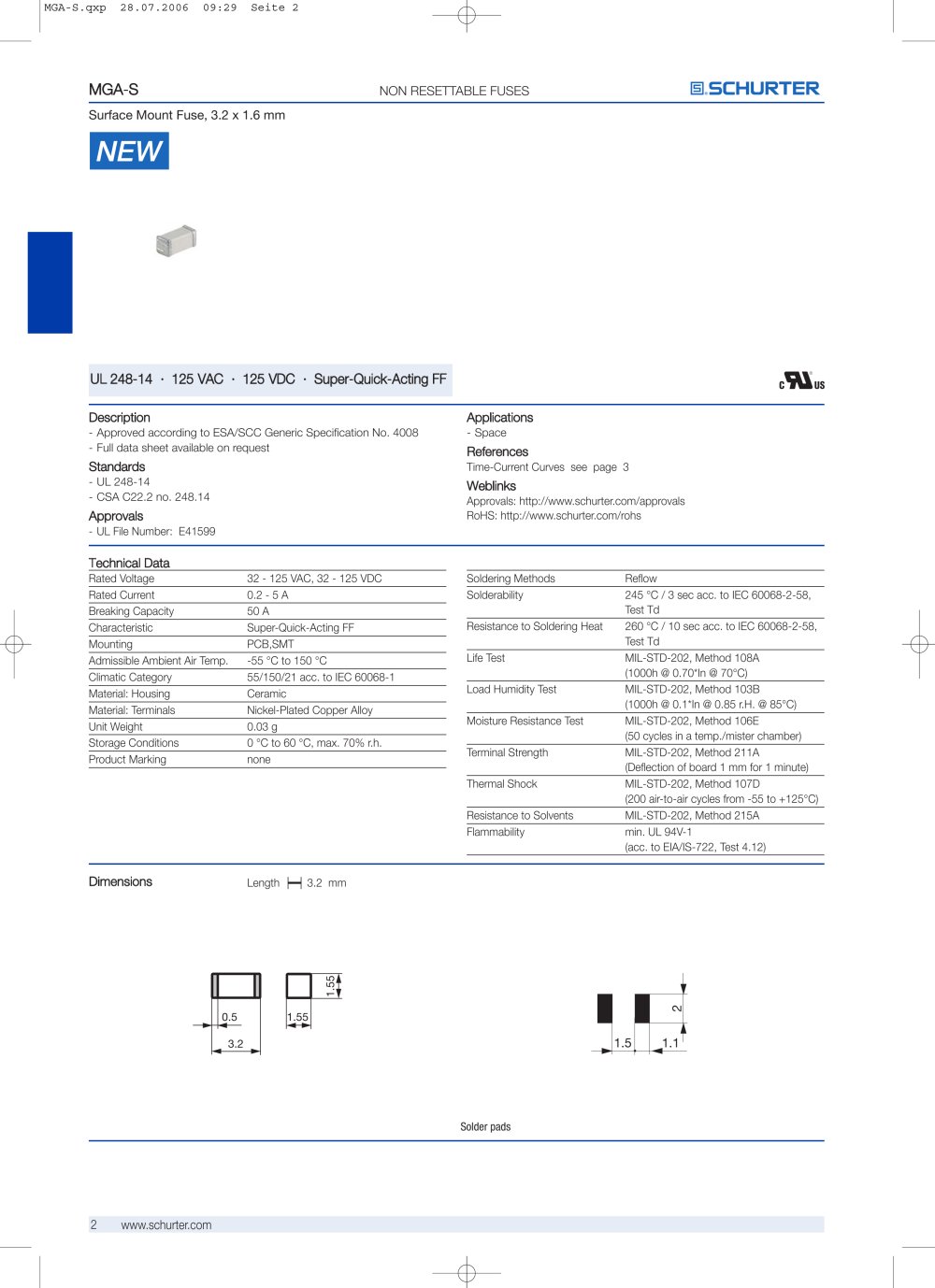

MGA-S.qxp 28.07.2006 09:29 Seite 2

MGA - S

Flyer MGA-S - 7208 MGA-S

NON RESETTABLE FUSES Surface Mount Fuse,3.2x1.6mm

UL 248-14·125VAC·125VDC·Super-Quick-Acting FF

Description Applications

-Approved according to ESA/SCC Generic Specification No. 4008-Full data sheet available on request -Space

References Standards

Time-Current Curvesseepage3 -UL 248-14 -CSA C22.2 no. 248.14

Weblinks

Approvals: http://www.schurter.com/approvalsRoHS: http://www.schurter.com/rohs

Approvals

-UL File Number:E41599

Technical Data

Rated Voltage32 - 125VAC, 32 - 125VDC Soldering MethodsReflow Rated Current0.2 - 5A Solderability245°C / 3sec acc. to IEC 60068-2-58,Test Td Breaking Capacity50A CharacteristicSuper-Quick-Acting FF Resistance to Soldering Heat260°C / 10sec acc. to IEC 60068-2-58,Test Td MountingPCB,SMT Admissible Ambient Air Temp.-55°C to 150°C Life TestMIL-STD-202, Method 108A(1000h @ 0.70*In @ 70°C) Climatic Category55/150/21 acc. to IEC 60068-1 Material: HousingCeramic Load Humidity TestMIL-STD-202, Method 103B(1000h @ 0.1*In @ 0.85 r.H. @ 85°C) Material: TerminalsNickel-Plated Copper Alloy Unit Weight0.03 g Moisture Resistance TestMIL-STD-202, Method 106E(50 cycles in a temp./mister chamber) Storage Conditions0°C to 60°C, max. 70% r.h. Product Markingnone Terminal StrengthMIL-STD-202, Method 211A(Deflection of board 1 mm for 1 minute) Thermal ShockMIL-STD-202, Method 107D(200 air-to-air cycles from -55 to +125°C) Resistance to SolventsMIL-STD-202, Method 215A Flammabilitymin. UL 94V-1(acc. to EIA/IS-722, Test 4.12)

Dimensions

Length 3.2mm
1.55 2 3.20.51.55

1.51.1

Solder pads
