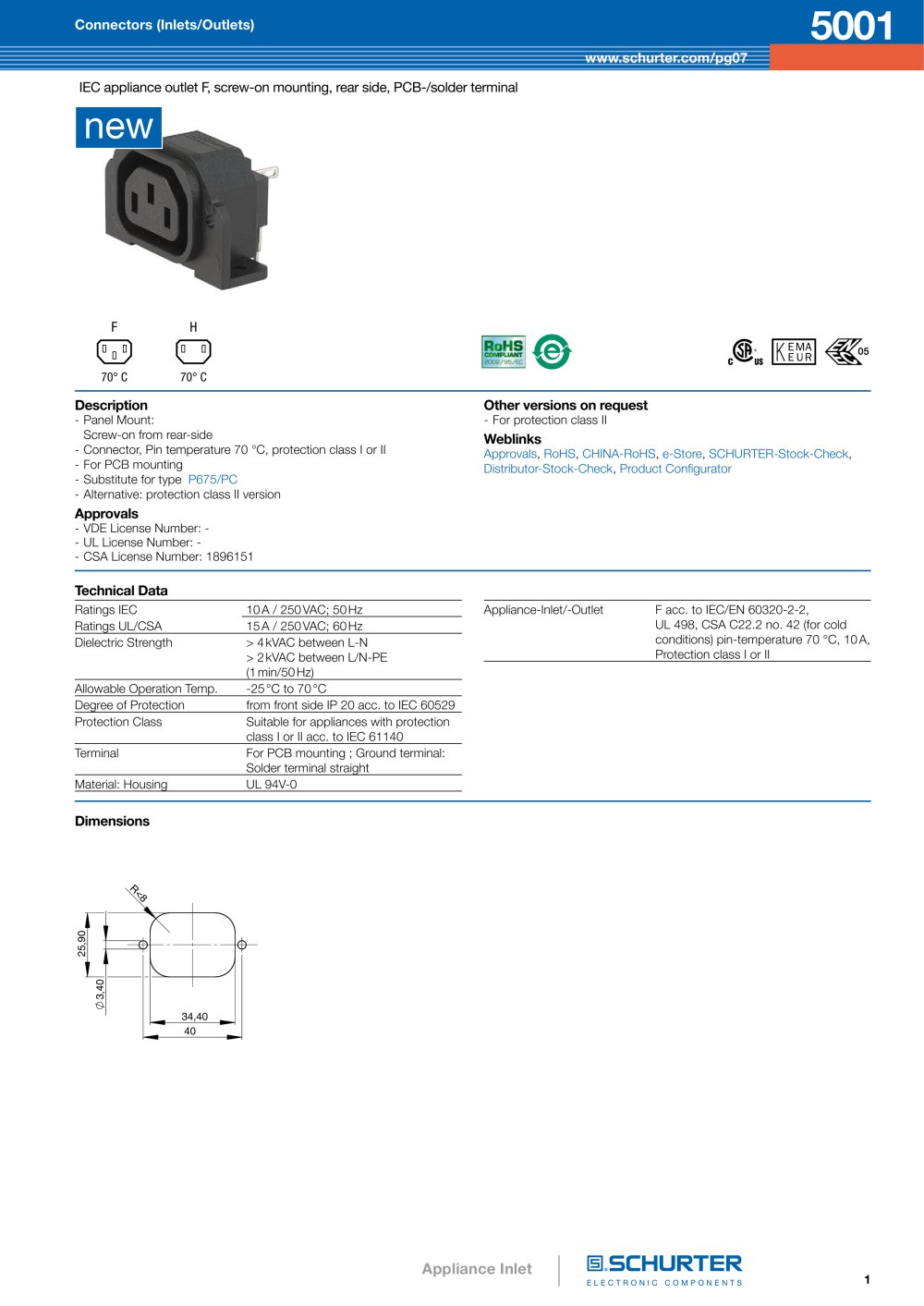

IEC appliance outlet F, screw-on mounting, rear side, PCB-/solder terminal

new

Sì Ì

'EMA iEUR

70° C

Description

- Panel Mount: Screw-on from rear-side

- Connector, Pin temperature 70 °C, protection class I or II

- For PCB mounting

- Substitute for type P675/PC

- Alternative: protection class II version

Approvals

- VDE License Number: -

- UL License Number: -

- CSA License Number: 1896151

Other versions on request

- For protection class II

Weblinks

Approvals, RoHS, CHINA-RoHS, e-Store, SCHURTER-Stock-Check, Distributor-Stock-Check, Product Configurator


	Technical Data
	Ratings IEC	10 A / 250 VAC; 50 Hz
	Ratings UL/CSA	15 A / 250 VAC; 60 Hz
	Dielectric Strength	> 4 kVAC between L-N
		> 2 kVAC between L/N-PE
		(1 mln/50 Hz)
	Allowable Operation Temp.	-25 °C to 70 °C
	Degree of Protection	from front side IP 20 acc. to IEC 60529
	Protection Class	Suitable for appliances with protection
		class I or II acc. to IEC 61140
	Terminal	For PCB mounting ; Ground terminal:
		Solder terminal straight
	Material: Housing	UL 94V-0

Appllance-Inlet/-Outlet

F acc. to IEC/EN 60320-2-2, UL 498, CSA C22.2 no. 42 (for cold conditions) pin-temperature 70 °C, 10 A, Protection class I or II

Dimensions

O CD

CO]

34,40

Appliance Inlet
