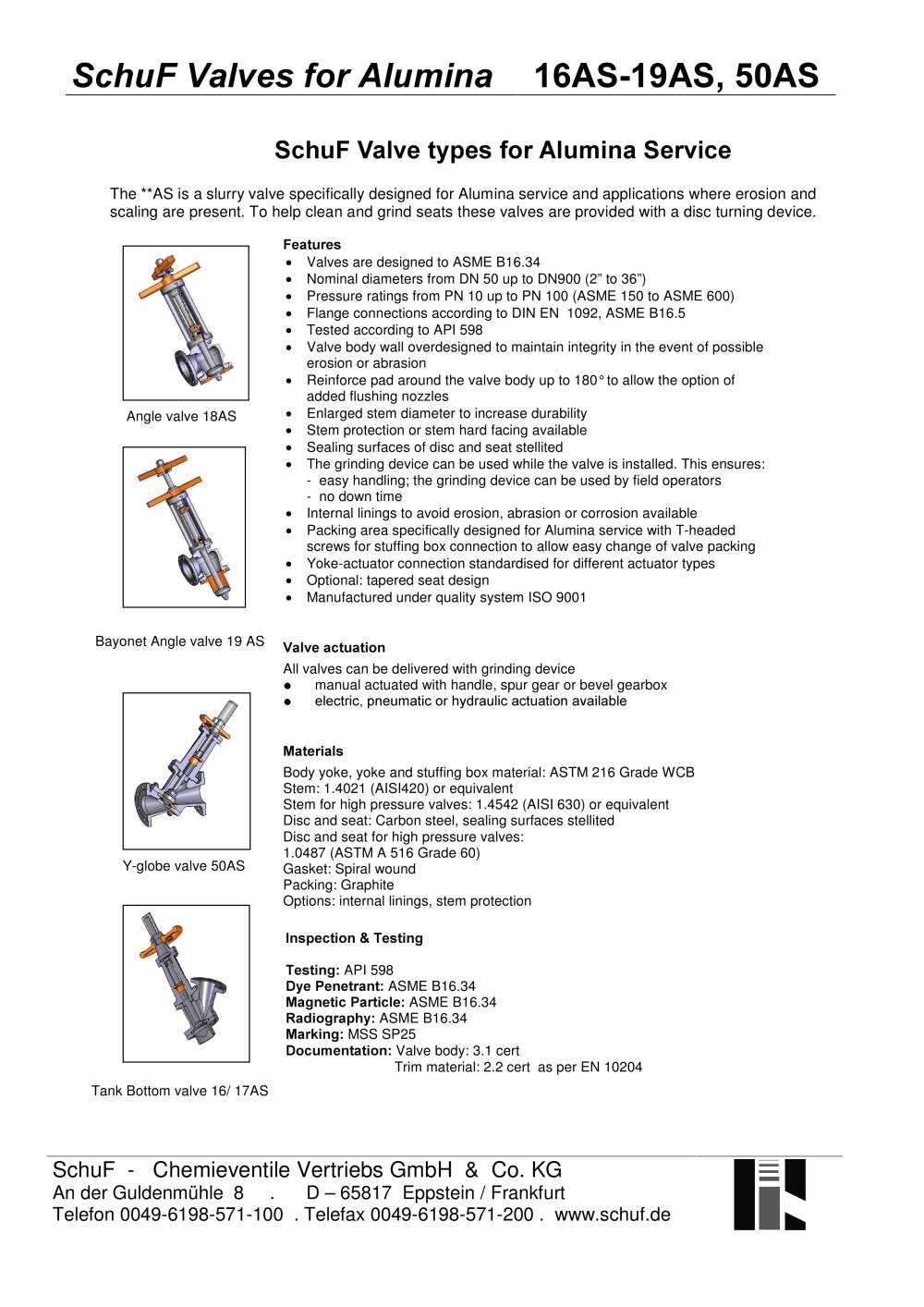

The **AS is a slurry valve specifically designed for Alumina service and applications where erosion andscaling are present. To help clean and grind seats these valves are provided with a disc turning device.

Valves are designed to ASME B16.34 Nominal diameters from DN 50 up to DN900 (2” to 36”) Pressure ratings from PN 10 up to PN 100 (ASME 150 to ASME 600) Flange connections according to DIN EN 1092, ASME B16.5 Tested according to API 598 Valve body wall overdesigned to maintain integrity in the event of possibleerosion or abrasion Reinforce pad around the valve body up to 180° to allow the option ofadded flushing nozzles Angle valve 18AS Bayonet Angle valve 19 AS Y-globe valve 50AS Tank Bottom valve 16/ 17AS Enlarged stem diameter to increase durability Stem protection or stem hard facing available Sealing surfaces of disc and seat stellited The grinding device can be used while the valve is installed. This ensures:- easy handling; the grinding device can be used by field operators- no down time Internal linings to avoid erosion, abrasion or corrosion available Packing area specifically designed for Alumina service with T-headedscrews for stuffing box connection to allow easy change of valve packing Yoke-actuator connection standardised for different actuator types Optional: tapered seat design Manufactured under quality system ISO 9001 All valves can be delivered with grinding device manual actuated with handle, spur gear or bevel gearbox Body yoke, yoke and stuffing box material: ASTM 216 Grade WCBStem: 1.4021 (AISI420) or equivalentStem for high pressure valves: 1.4542 (AISI 630) or equivalentDisc and seat: Carbon steel, sealing surfaces stellitedDisc and seat for high pressure valves:1.0487 (ASTM A 516 Grade 60) Gasket: Spiral woundPacking: GraphiteOptions: internal linings, stem protection API 598 ASME B16.34 ASME B16.34 ASME B16.34 MSS SP25 Valve body: 3.1 cert Trim material: 2.2 cert as per EN 10204

Valves for Alumina Service - 40478 SchuF - Chemieventile Vertriebs GmbH & Co. KG

An der Guldenmühle 8 . D – 65817 Eppstein / FrankfurtTelefon 0049-6198-571-100 . Telefax 0049-6198-571-200 . www.schuf.de
