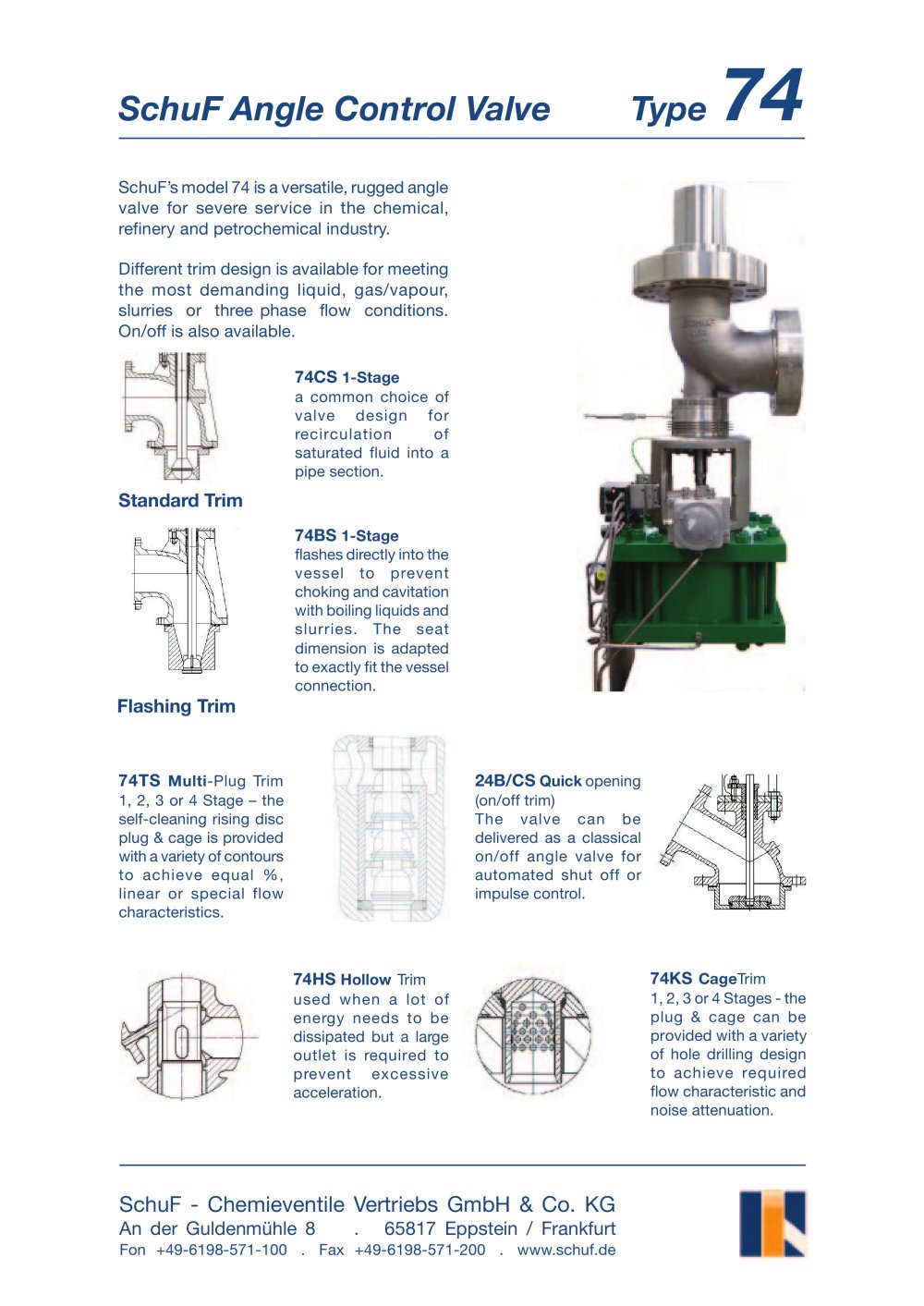

SchuF Angle Control Valve Type

SchuF's model 74 is a versatile, rugged angle valve for severe service in the chemical, refinery and petrochemical industry.

Différent trim design is available for meeting the most demanding liquid, gas/vapour, slurries or three phase flow conditions. On/off is also available.

74CS 1-Stage

a common choice of valve design for recirculation of saturated fluid into a pipe section.

Standard Trim

74BS 1-Stage

flashes directly into the vessel to prevent choking and cavitation with boiling liquids and slurries. The seat dimension is adapted to exactly fit the vessel connection.

Flashing Trim

74TS Multi-Plug Trim 1, 2, 3 or 4 Stage - the self-cleaning rising dise plug & cage is provided with a variety of contours to achieve equal %,

24B/CS Quick opening (on/off trim)

The valve can be delivered as a classical on/off angle valve for automated shut off or impulse control.

linear or spécial characteristics.

flow



	] J
	ç	1
	V	J\|
	---

74HS Hollow Trim used when a lot of energy needs to be dissipated but a large outlet is required to prevent excessive accélération.

74KS CageTrim

1,2,3 or4 Stages-the plug & cage can be provided with a variety of hole drilling design to achieve required flow characteristic and noise atténuation.

SchuF - Chemieventile Vertriebs GmbH & Co. KG An der Guldenmùhle 8 . 65817 Eppstein / Frankfurt

Fon +49-6198-571-100 . Fax +49-6198-571-200 . www.schuf.de
