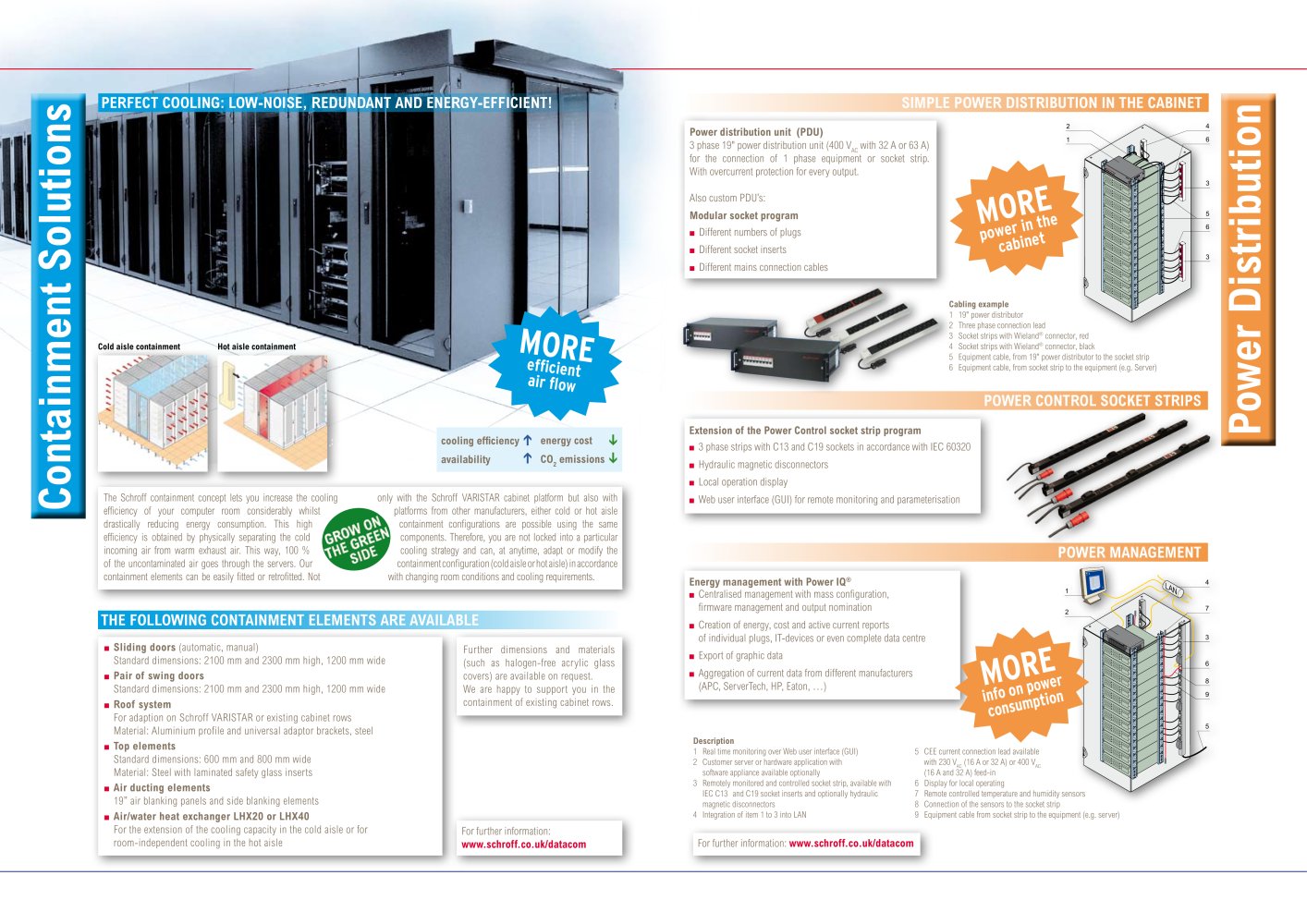

PERFECT COOLING: LOW-NOISE, REDUNDANT AND ENERGY-EFFICIENT! SIMPLE POWER DISTRIBUTION IN THE CABINET

Power distribution unit (PDU) 3 phase 19" power distribution unit (400 V with 32 A or 63 A) for the connection of 1 phase equipment or socket strip. With overcurrent protection for every output.Also custom PDU’s:
12 AC Modular socket program
â–  Different numbers of plugs

MORE

power in thecabinet

â–  Different socket inserts
3 356 64 â–  Different mains connection cables
1 19" power distributor2 Three phase connection lead3 Socket strips with Wieland Cabling example Cold aisle containmentHot aisle containment

IT-News 2009 - 7799 MORE

® connector, red4 Socket strips with Wieland ® connector, black5 Equipment cable, from 19" power distributor to the socket strip6 Equipment cable, from socket strip to the equipment (e.g. Server)

efficientair flow

POWER CONTROL SOCKET STRIPS

âž” âž” Extension of the Power Control socket strip program
Power Distribution cooling efficiencyavailabilityenergy cost CO
â–  3 phase strips with C13 and C19 sockets in accordance with IEC 60320
âž” âž” 2 emissions
â–  Hydraulic magnetic disconnectors
â–  Local operation display The Schroff containment concept lets you increase the cooling efficiency of your computer room considerably whilst drastically reducing energy consumption. This high efficiency is obtained by physically separating the cold incoming air from warm exhaust air. This way, 100 % of the uncontaminated air goes through the servers. Our containment elements can be easily fitted or retrofitted. Not only with the Schroff VARISTAR cabinet platform but also with platforms from other manufacturers, either cold or hot aisle containment configurations are possible using the same components. Therefore, you are not locked into a particular cooling strategy and can, at anytime, adapt or modify the containment configuration (cold aisle or hot aisle) in accordance with changing room conditions and cooling requirements.
â–  Containment Solutions Web user interface (GUI) for remote monitoring and parameterisation

POWER MANAGEMENT

Energy management with Power IQ
® LAN â–  Centralised management with mass configuration, firmware management and output nomination

THE FOLLOWING CONTAINMENT ELEMENTS ARE AVAILABLE

21 â–  Creation of energy, cost and active current reports of individual plugs, IT-devices or even complete data centre
â–  Sliding doors (automatic, manual) Standard dimensions: 2100 mm and 2300 mm high, 1200 mm wide Further dimensions and materials (such as halogen-free acrylic glass covers) are available on request. We are happy to support you in the containment of existing cabinet rows.
â–  Export of graphic data
â–  Pair of swing doors
â–  Aggregation of current data from different manufacturers (APC, ServerTech, HP, Eaton, …) Standard dimensions: 2100 mm and 2300 mm high, 1200 mm wide
â–  Roof system

MORE

info on power consumption

For adaption on Schroff VARISTAR or existing cabinet rows Material: Aluminium profile and universal adaptor brackets, steel
5 389674 â–  Top elements
Description 1 Real time monitoring over Web user interface (GUI)2 Customer server or hardware application with software appliance available optionally3 Remotely monitored and controlled socket strip, available with IEC C13 and C19 socket inserts and optionally hydraulic magnetic disconnectors4 Integration of item 1 to 3 into LAN5 CEE current connection lead available with 230 V Standard dimensions: 600 mm and 800 mm wide Material: Steel with laminated safety glass inserts
AC (16 A or 32 A) or 400 V AC (16 A and 32 A) feed-in6 Display for local operating7 Remote controlled temperature and humidity sensors8 Connection of the sensors to the socket strip9 Equipment cable from socket strip to the equipment (e.g. server) â–  Air ducting elements 19” air blanking panels and side blanking elements
â–  Air/water heat exchanger LHX20 or LHX40 For the extension of the cooling capacity in the cold aisle or for room-independent cooling in the hot aisle For further information: www.schroff.co.uk/datacom For further information: www.schroff.co.uk/datacom
