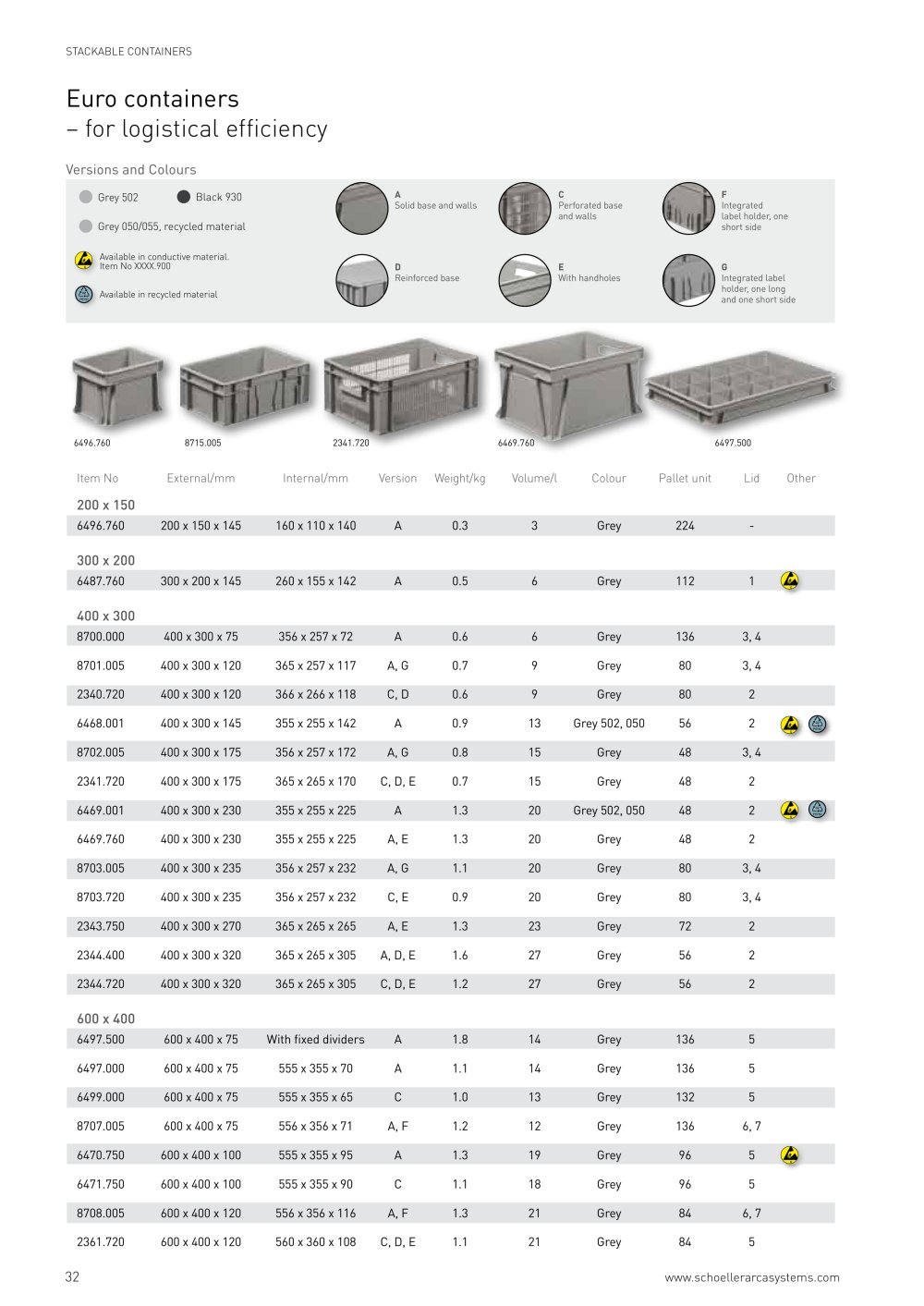

Euro containers

- for logistical efficiency

Versions and Colours

Grey 502 # Black 930

Grey 050/055, recycled material

4

Available in recycled material


	Item No	External/mm	Internal/mm	Version	Weight/kg	Volume/l	Colour	Pallet unit	Lid	Other
	200 x 150
	6496.760	200 x 150 x 145	160 x 110 x 140	A	0.3	3	Grey	224	-
	300 x 200
	6487.760	300 x 200 x 145	260 x 155 x 142	A	0.5	6	Grey	112	1	4
	400 x 300
	8700.000	400 x 300 x 75	356 x 257 x 72	A	0.6	6	Grey	136	3, 4
	8701.005	400 x 300 x 120	365 x 257 x 117	A, G	0.7	9	Grey	80	3, 4
	2340.720	400 x 300 x 120	366 x 266 x 118	C, D	0.6	9	Grey	80	2
	6468.001	400 x 300 x 145	355 x 255 x 142	A	0.9	13	Grey 502, 050	56	2	4 d>
	8702.005	400 x 300 x 175	356 x 257 x 172	A, G	0.8	15	Grey	48	3, 4
	2341.720	400 x 300 x 175	365 x 265 x 170	C, D, E	0.7	15	Grey	48	2
	6469.001	400 x 300 x 230	355 x 255 x 225	A	1.3	20	Grey 502, 050	48	2	4 <D
	6469.760	400 x 300 x 230	355 x 255 x 225	A, E	1.3	20	Grey	48	2
	8703.005	400 x 300 x 235	356 x 257 x 232	A, G	1.1	20	Grey	80	3, 4
	8703.720	400 x 300 x 235	356 x 257 x 232	C, E	0.9	20	Grey	80	3, 4
	2343.750	400 x 300 x 270	365 x 265 x 265	A, E	1.3	23	Grey	72	2
	2344.400	400 x 300 x 320	365 x 265 x 305	A, D, E	1.6	27	Grey	56	2
	2344.720	400 x 300 x 320	365 x 265 x 305	C, D, E	1.2	27	Grey	56	2
	600x400
	6497.500	600 x 400 x 75	With fixed dividers	A	1.8	14	Grey	136	5
	6497.000	600 x 400 x 75	555 x 355 x 70	A	1.1	14	Grey	136	5
	6499.000	600 x 400 x 75	555 x 355 x 65	C	1.0	13	Grey	132	5
	8707.005	600 x 400 x 75	556 x 356 x 71	A, F	1.2	12	Grey	136	6, 7
	6470.750	600 x 400 x 100	555 x 355 x 95	A	1.3	19	Grey	96	5
	6471.750	600 x 400 x 100	555 x 355 x 90	C	1.1	18	Grey	96	5
	8708.005	600 x 400 x 120	556 x 356 x 116	A, F	1.3	21	Grey	84	6, 7
	2361.720	600 x 400 x 120	560 x 360 x 108	C, D, E	1.1	21	Grey	84	5
