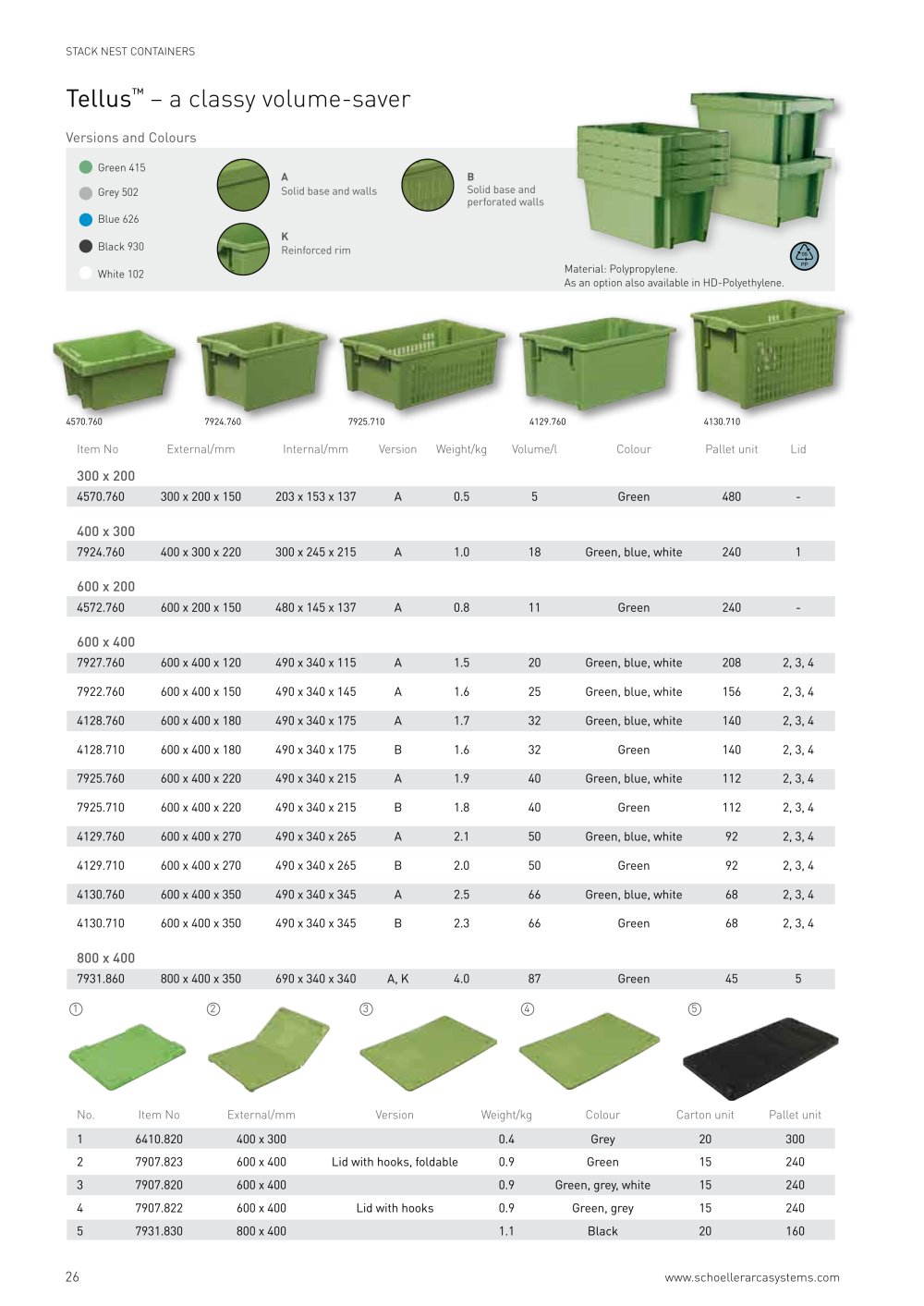

a classy volume-saver

Versions and Colours

Green 415 Grey 502 Blue 626 Black 930 White 102


	4570.760 Item No 300 x 200	7924.760 External/mm	^^^^^^ ^^^^^^^P 7925.710 Internal/mm Version		Weight/kg	4129.760 Volume/I	Colour	4130.710 Pallet unit	Lid
	4570.760	300 x 200 x 150	203 x 153 x 137	A	0.5	5	Green	480	-
	400 x 300
	7924.760	400 x 300 x 220	300 x 245 x 215	A	1.0	18	Green, blue, white	240	1
	600 x 200
	4572.760	600 x 200 x 150	480 x 145 x 137	A	0.8	11	Green	240	-
	600x400
	7927.760	600 x 400 x 120	490 x 340 x 115	A	1.5	20	Green, blue, white	208	2, 3, 4
	7922.760	600 x 400 x 150	490 x 340 x 145	A	1.6	25	Green, blue, white	156	2, 3, 4
	4128.760	600 x 400 x 180	490 x 340 x 175	A	1.7	32	Green, blue, white	140	2, 3, 4
	4128.710	600 x 400 x 180	490 x 340 x 175	B	1.6	32	Green	140	2, 3, 4
	7925.760	600 x 400 x 220	490 x 340 x 215	A	1.9	40	Green, blue, white	112	2, 3, 4
	7925.710	600 x 400 x 220	490 x 340 x 215	B	1.8	40	Green	112	2, 3, 4
	4129.760	600 x 400 x 270	490 x 340 x 265	A	2.1	50	Green, blue, white	92	2, 3, 4
	4129.710	600 x 400 x 270	490 x 340 x 265	B	2.0	50	Green	92	2, 3, 4
	4130.760	600 x 400 x 350	490 x 340 x 345	A	2.5	66	Green, blue, white	68	2, 3, 4
	4130.710	600 x 400 x 350	490 x 340 x 345	B	2.3	66	Green	68	2, 3, 4
	800x400
	7931.860	800 x 400 x 350	690 x 340 x 340	A, K	4.0	87	Green	45	5

©

©


	No.	Item No	External/mm	Version	Weight/kg	Colour	Carton unit	Pallet unit
	1	6410.820	400 x 300		0.4	Grey	20	300
	2	7907.823	600 x 400	Lid with hooks, foldable	0.9	Green	15	240
	3	7907.820	600 x 400		0.9	Green, grey, white	15	240
	4	7907.822	600 x 400	Lid with hooks	0.9	Green, grey	15	240
	5	7931.830	800 x 400		1.1	Black	20	160
