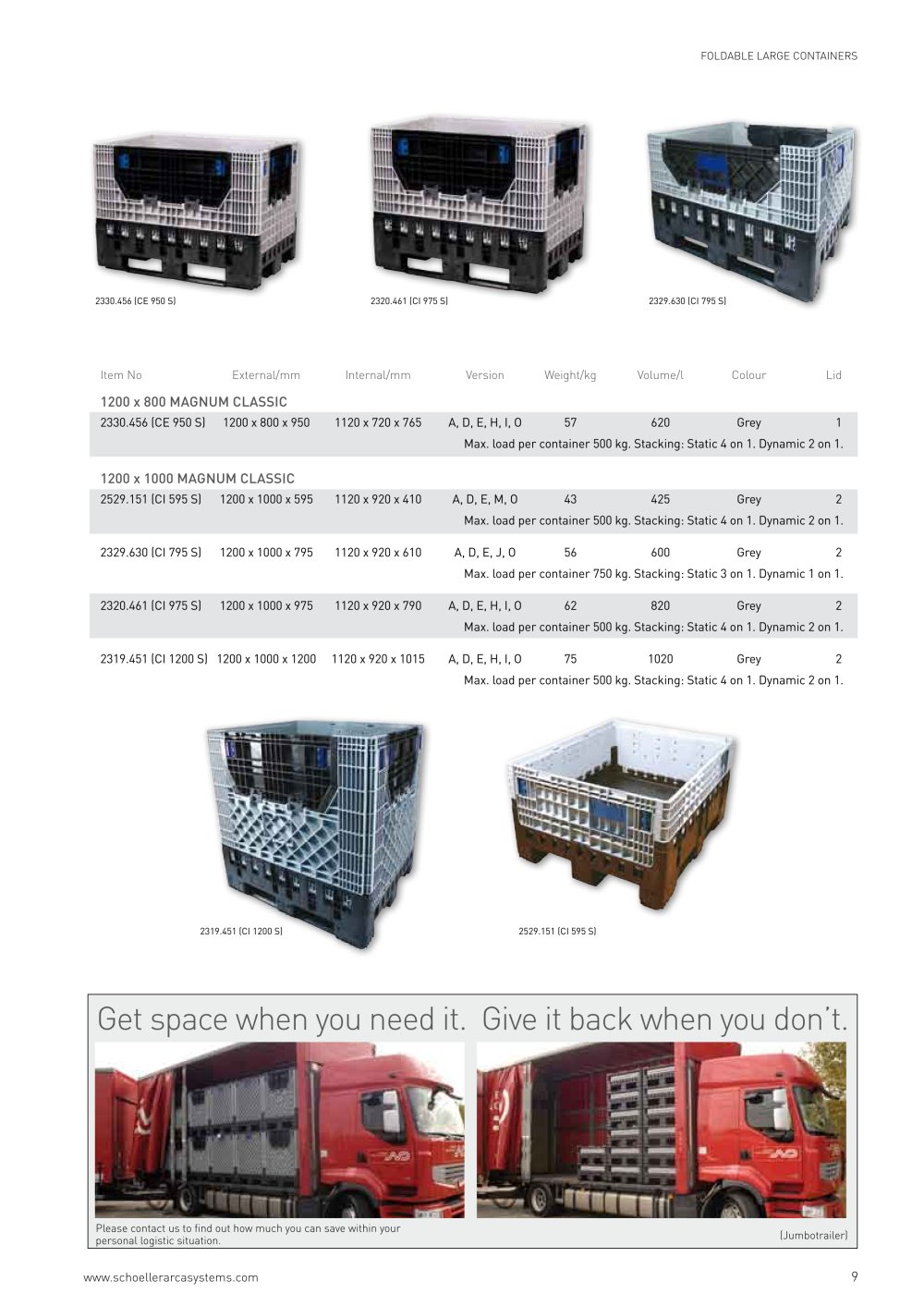

	Item No External/mm	Internal/mm	Version Weight/kg Volume/l Colour Lid
	1200 x 800 magnum classic
	2330.456 (CE 950 S) 1200 x 800 x 950	1120 x 720 x 765	A, D, E, H, I, O 57 620 Grey 1 Max. load per container 500 kg. Stacking: Static 4 on 1. Dynamic 2 on 1.
	1200 x 1000 magnum classic
	2529.151 (CI 595 S) 1200 x 1000 x 595	1120 x 920 x 410	A, D, E, M, O 43 425 Grey 2 Max. load per container 500 kg. Stacking: Static 4 on 1. Dynamic 2 on 1.
	2329.630 (CI 795 S) 1200 x 1000 x 795	1120 x 920 x 610	A, D, E, J, O 56 600 Grey 2 Max. load per container 750 kg. Stacking: Static 3 on 1. Dynamic 1 on 1.
	2320.461 (CI 975 S) 1200 x 1000 x 975	1120 x 920 x 790	A, D, E, H, I, O 62 820 Grey 2 Max. load per container 500 kg. Stacking: Static 4 on 1. Dynamic 2 on 1.
	2319.451 (CI 1200 S) 1200 x 1000 x 1200	1120x920x1015	A, D, E, H, I, O 75 1020 Grey 2

Max. load per container 500 kg. Stacking: Static 4 on 1. Dynamic 2 on 1.

Get space when you need it. Give it back when you don't.
