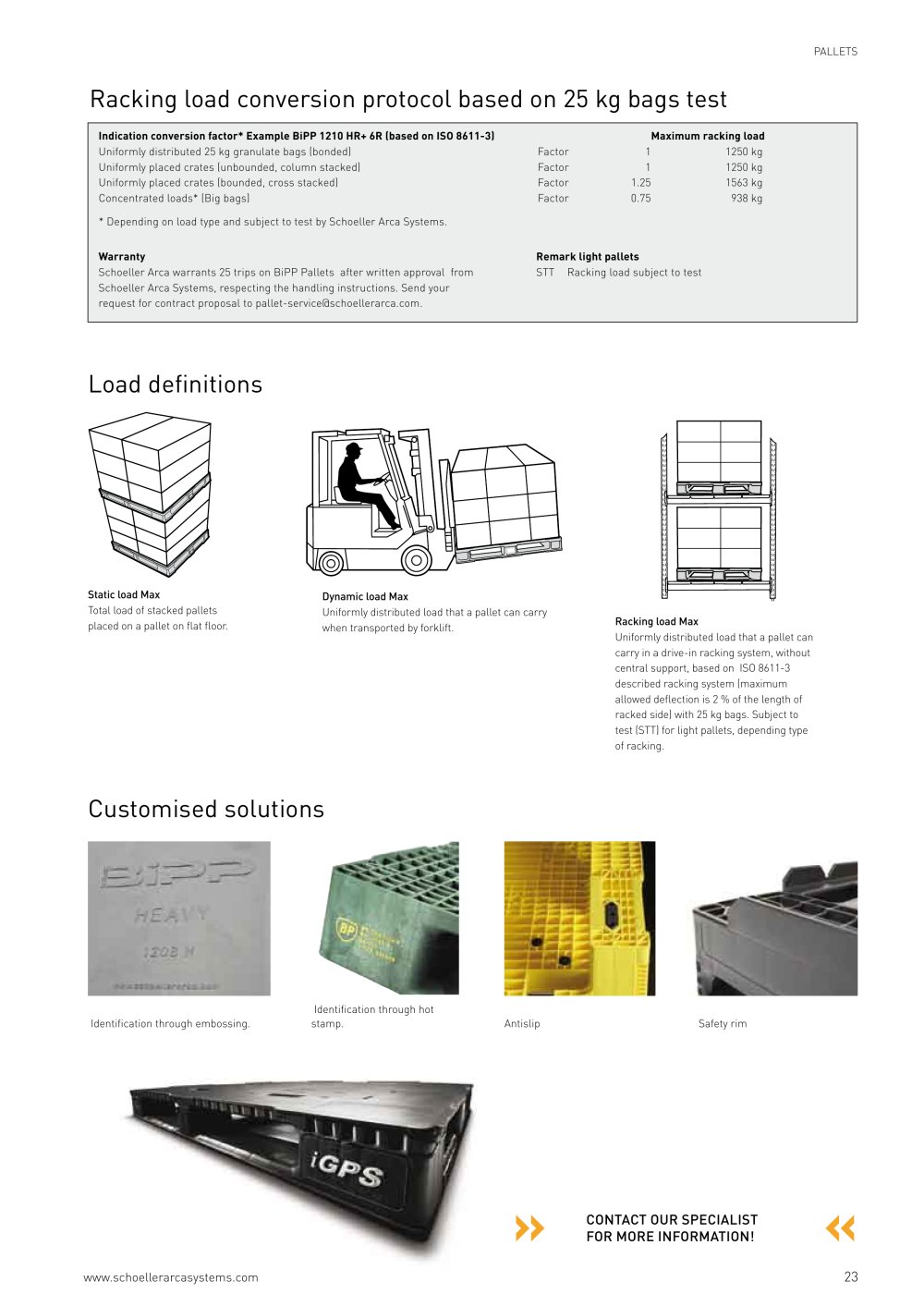

PALLETS

Racking load conversion protocol based on 25 kg bags test


*Indication conversion factor Example BiPP 1210 HR+ 6R (based on ISO 8611-3)**		Maximum racking load
Uniformly distributed 25 kg granulate bags (bonded)	Factor	1 1250 kg
Uniformly placed crates (unbounded, column stacked)	Factor	1 1250 kg
Uniformly placed crates (bounded, cross stacked)	Factor	1.25 1 563 kg
Concentrated loads* (Big bags)	Factor	0.75 938 kg
* Depending on load type and subject to test by Schoeller Arca Systems.
Warranty	Remark light pallets
Schoeller Arca warrants 25 trips on BiPP Pallets after written approval from	STT Racking load subject to test
Schoeller Arca Systems, respecting the handling instructions. Send your
request for contract proposal to pallet-service0schoellerarca.com.

Load definitions

Total load of stacked pallets Uniformly distributed load that a pallet can carry

placed on a pallet on flat floor. when transported by forklift. Racking load Max

Uniformly distributed load that a pallet can carry in a drive-in racking system, without central support, based on ISO 8611-3 described racking system (maximum allowed deflection is 2 % of the length of racked side) with 25 kg bags. Subject to test (STT) for light pallets, depending type of racking.

Customised solutions

Identification through hot

Identification through embossing. stamp. Antislip Safety rim
