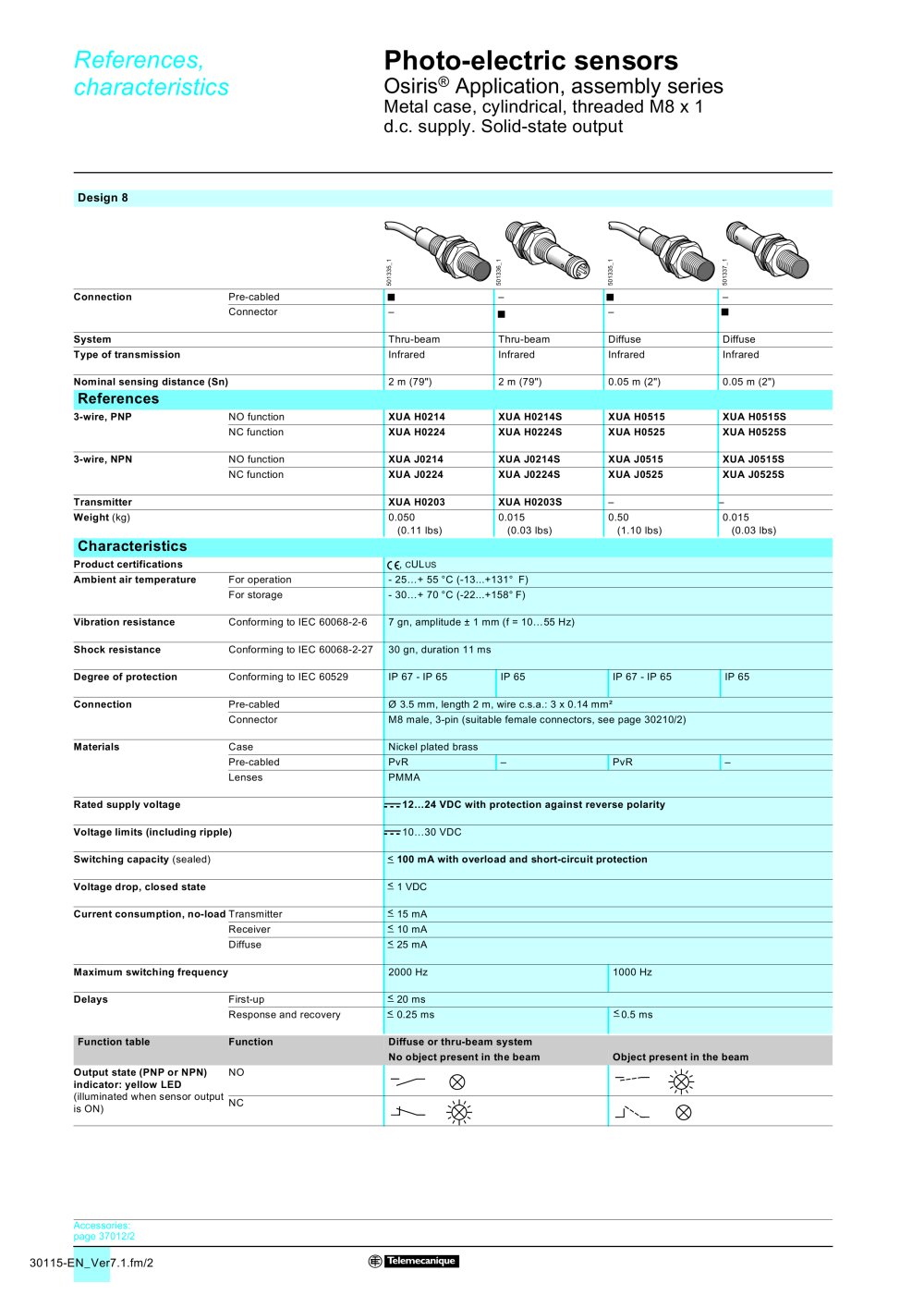

| | | characteristics Osiris® Application, assembly series Metal case, cylindrical, threaded M8 x 1 d.c. supply. Solid-state output | | |
| | | |
| | | Design 8 | | |
| | | |
| | | | | | | | | | | | | | | Connection | Pre-cabled | ■ | - | ■ | - | | | | | Connector | - | ■ | - | ■ | | | | System | Thru-beam | Thru-beam | Diffuse | Diffuse | | | | Type of transmission | Infrared | Infrared | Infrared | Infrared | | | | Nominal sensing distance (Sn) | 2 m (79") | 2 m (79") | 0.05 m (2") | 0.05 m (2") | | | | References | | | | 3-wire, PNP | NO function | XUA H0214 | XUA H0214S | XUA H0515 | XUA H0515S | | | | | NC function | XUA H0224 | XUA H0224S | XUA H0525 | XUA H0525S | | | | 3-wire, NPN | NO function | XUA J0214 | XUA J0214S | XUA J0515 | XUA J0515S | | | | | NC function | XUA J0224 | XUA J0224S | XUA J0525 | XUA J0525S | | | | Transmitter | XUA H0203 | XUA H0203S | - | - | | | | Weight (kg) | 0.050 (0.11 lbs) | 0.015 (0.03 lbs) | 0.50 (1.10 lbs) | 0.015 (0.03 lbs) | | | | Characteristics | | | | Product certifications | CC, CULUS | | | | Ambient air temperature | For operation | - 25...+ 55 X (-13... + 131° F) | | | | | For storage | - 30...+ 70 °C (-22... + 158° F) | | | | Vibration resistance | Conforming to IEC 60068-2-6 | 7 gn, amplitude ± 1 mm (f = 10...55 Hz) | | | | Shock resistance | Conforming to IEC 60068-2-27 | 30 gn, duration 11 ms | | | | Degree of protection | Conforming to IEC 60529 | IP 67 - IP 65 | IP 65 | IP 67 - IP 65 | IP 65 | | | | Connection | Pre-cabled | 0 3.5 mm, length 2 m, wire c.s.a.: 3 x 0.14 mm2 | | | | | Connector | M8 male, 3-pin (suitable female connectors, see page 30210/2) | | | | Materials | Case | Nickel plated brass | | | | | Pre-cabled | PvR | - | PvR | - | | | | | Lenses | PMMA | | | | Rated supply voltage | — 12...24 VDC with protection against reverse polarity | | | | Voltage limits (including ripple) | --- 10...30 VDC | | | | Switching capacity (sealed) | < 100 mA with overload and short-circuit protection | | | | Voltage drop, closed state | < 1 VDC | | | | Current consumption, no-load Transmitter | < 15 mA | | | | | Receiver | < 10 mA | | | | | Diffuse | < 25 mA | | | | Maximum switching frequency | 2000 Hz | 1000 Hz | | | | Delays | First-up | < 20 ms | | | | | Response and recovery | < 0.25 ms | < 0.5 ms | | | | Function table | Function | Diffuse or thru-beam system | | | | No object present in the beam | Object present in the beam | | | | Output state (PNP or NPN) indicator: yellow LED (illuminated when sensor output s ON) | NO | ..... ® | | | | | NC | | | | | | | | | | | | | | | | |
| | | |
| | | Accessories: page 37012/2 | | |
| | | |
| | | Télémécanique | | |
| | | 30115-EN_Ver7.1.fm/2 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | |
