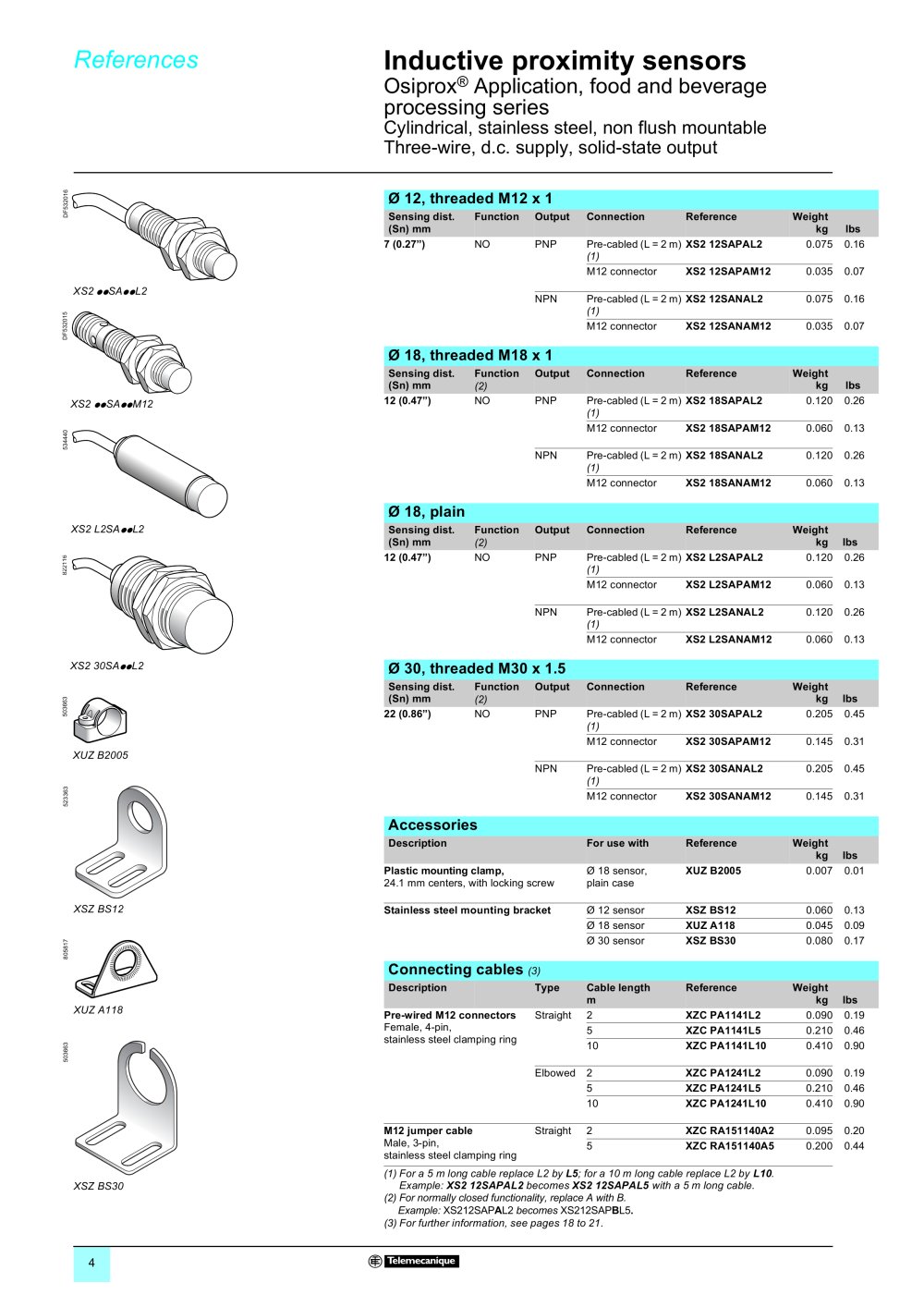

4 References 1 Inductive proximity sensors 1 Osiprox® Application, food and beverage processing series Cylindrical, stainless steel, non flush mountable Three-wire, d.c. supply, solid-state output Ø 12, threaded M12 x 1 Sensing dist. (Sn) mm Function Output Connection Reference Weight kg lbs 7 (0.27”) NO PNP Pre-cabled (L = 2 m) (1) XS2 12SAPAL2 0.075 0.16 M12 connector XS2 12SAPAM12 0.035 0.07 NPN Pre-cabled (L = 2 m) (1) XS2 12SANAL2 0.075 0.16 M12 connector XS2 12SANAM12 0.035 0.07 Ø 18, threaded M18 x 1 Sensing dist. (Sn) mm Function (2) Output Connection Reference Weight kg lbs 12 (0.47”) NO PNP Pre-cabled (L = 2 m) (1) XS2 18SAPAL2 0.120 0.26 M12 connector XS2 18SAPAM12 0.060 0.13 NPN Pre-cabled (L = 2 m) (1) XS2 18SANAL2 0.120 0.26 M12 connector XS2 18SANAM12 0.060 0.13 Ø 18, plain Sensing dist. (Sn) mm Function (2) Output Connection Reference Weight kg lbs 12 (0.47”) NO PNP Pre-cabled (L = 2 m) (1) XS2 L2SAPAL2 0.120 0.26 M12 connector XS2 L2SAPAM12 0.060 0.13 NPN Pre-cabled (L = 2 m) (1) XS2 L2SANAL2 0.120 0.26 M12 connector XS2 L2SANAM12 0.060 0.13 Ø 30, threaded M30 x 1.5 Sensing dist. (Sn) mm Function (2) Output Connection Reference Weight kg lbs 22 (0.86”) NO PNP Pre-cabled (L = 2 m) (1) XS2 30SAPAL2 0.205 0.45 M12 connector XS2 30SAPAM12 0.145 0.31 NPN Pre-cabled (L = 2 m) (1) XS2 30SANAL2 0.205 0.45 M12 connector XS2 30SANAM12 0.145 0.31 Accessories Description For use with Reference Weight kg lbs Plastic mounting clamp, 24.1 mm centers, with locking screw Ø 18 sensor, plain case XUZ B2005 0.007 0.01 Stainless steel mounting bracket Ø 12 sensor XSZ BS12 0.060 0.13 Ø 18 sensor XUZ A118 0.045 0.09 Ø 30 sensor XSZ BS30 0.080 0.17 Connecting cables (3) Description Type Cable length m Reference Weight kg lbs Pre-wired M12 connectors Female, 4-pin, stainless steel clamping ring Straight 2 XZC PA1141L2 0.090 0.19 5 XZC PA1141L5 0.210 0.46 10 XZC PA1141L10 0.410 0.90 Elbowed 2 XZC PA1241L2 0.090 0.19 5 XZC PA1241L5 0.210 0.46 10 XZC PA1241L10 0.410 0.90 M12 jumper cable Male, 3-pin, stainless steel clamping ring Straight 2 XZC RA151140A2 0.095 0.20 5 XZC RA151140A5 0.200 0.44 (1) For a 5 m long cable replace L2 by L5; for a 10 m long cable replace L2 by L10. Example: XS2 12SAPAL2 becomes XS2 12SAPAL5 with a 5 m long cable. (2) For normally closed functionality, replace A with B. Example: XS212SAPAL2 becomes XS212SAPBL5. (3) For further information, see pages 18 to 21. XS2 ppSAppL2 DF532016 XS2 ppSAppM12 DF532015 XUZ B2005 503663 XS2 L2SAppL2 534440 XS2 30SAppL2 822116 XSZ BS12 523363 XUZ A118 805817 XSZ BS30 503663
