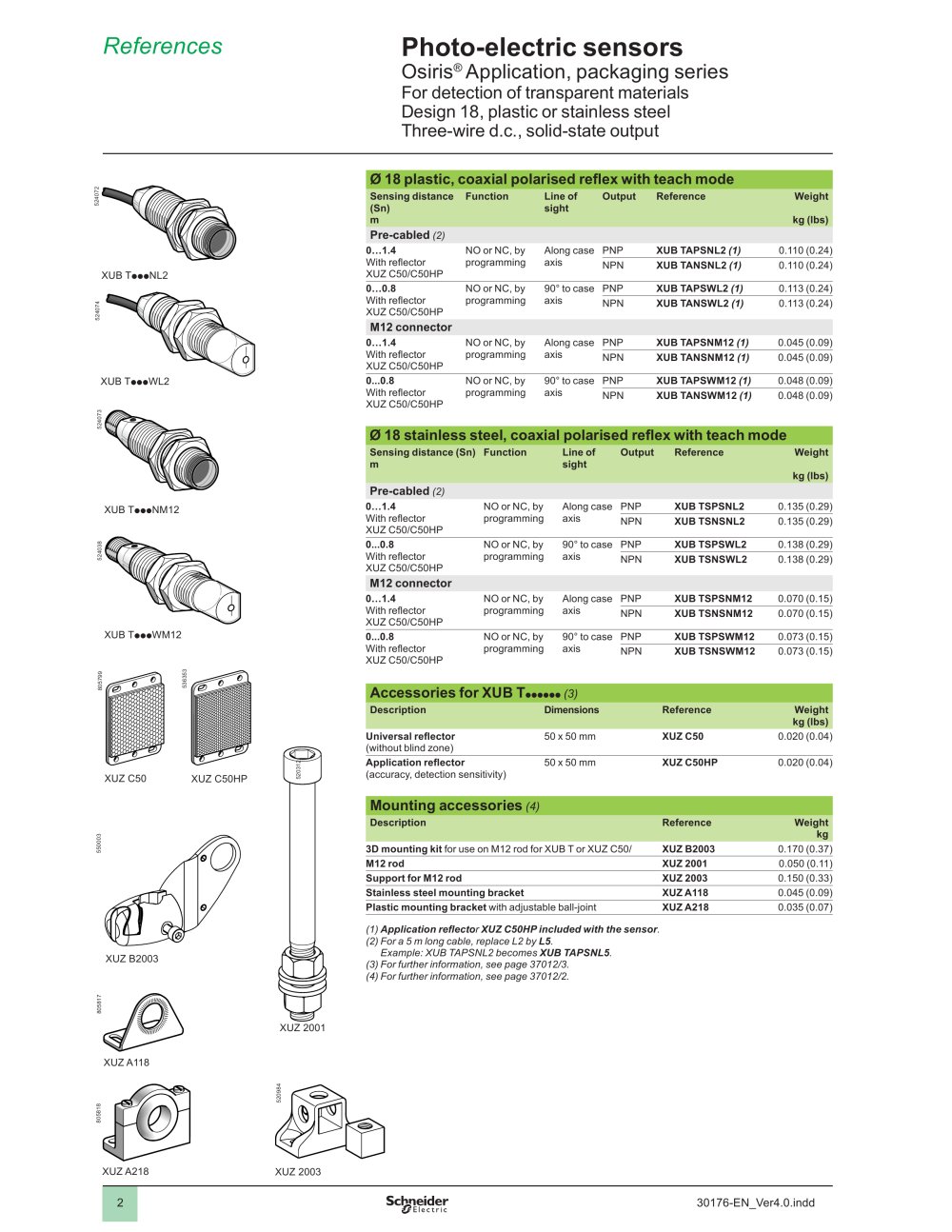

2 Photo-electric sensors 1 Osiris® Application, packaging series For detection of transparent materials Design 18, plastic or stainless steel Three-wire d.c., solid-state output Ø 18 plastic, coaxial polarised refl ex with teach mode Sensing distance (Sn) m Function Line of sight Output Reference Weight kg (lbs) Pre-cabled (2) 0…1.4 With refl ector XUZ C50/C50HP NO or NC, by programming Along case axis PNP XUB TAPSNL2 (1) 0.110 (0.24) NPN XUB TANSNL2 (1) 0.110 (0.24) 0…0.8 With refl ector XUZ C50/C50HP NO or NC, by programming 90° to case axis PNP XUB TAPSWL2 (1) 0.113 (0.24) NPN XUB TANSWL2 (1) 0.113 (0.24) M12 connector 0…1.4 With refl ector XUZ C50/C50HP NO or NC, by programming Along case axis PNP XUB TAPSNM12 (1) 0.045 (0.09) NPN XUB TANSNM12 (1) 0.045 (0.09) 0...0.8 With refl ector XUZ C50/C50HP NO or NC, by programming 90° to case axis PNP XUB TAPSWM12 (1) 0.048 (0.09) NPN XUB TANSWM12 (1) 0.048 (0.09) Ø 18 stainless steel, coaxial polarised refl ex with teach mode Sensing distance (Sn) m Function Line of sight Output Reference Weight kg (lbs) Pre-cabled (2) 0…1.4 With refl ector XUZ C50/C50HP NO or NC, by programming Along case axis PNP XUB TSPSNL2 0.135 (0.29) NPN XUB TSNSNL2 0.135 (0.29) 0...0.8 With refl ector XUZ C50/C50HP NO or NC, by programming 90° to case axis PNP XUB TSPSWL2 0.138 (0.29) NPN XUB TSNSWL2 0.138 (0.29) M12 connector 0…1.4 With refl ector XUZ C50/C50HP NO or NC, by programming Along case axis PNP XUB TSPSNM12 0.070 (0.15) NPN XUB TSNSNM12 0.070 (0.15) 0...0.8 With refl ector XUZ C50/C50HP NO or NC, by programming 90° to case axis PNP XUB TSPSWM12 0.073 (0.15) NPN XUB TSNSWM12 0.073 (0.15) Accessories for XUB Tpppppp (3) Description Dimensions Reference Weight kg (lbs) Universal refl ector (without blind zone) 50 x 50 mm XUZ C50 0.020 (0.04) Application refl ector (accuracy, detection sensitivity) 50 x 50 mm XUZ C50HP 0.020 (0.04) Mounting accessories (4) Description Reference Weight kg 3D mounting kit for use on M12 rod for XUB T or XUZ C50/ XUZ B2003 0.170 (0.37) M12 rod XUZ 2001 0.050 (0.11) Support for M12 rod XUZ 2003 0.150 (0.33) Stainless steel mounting bracket XUZ A118 0.045 (0.09) Plastic mounting bracket with adjustable ball-joint XUZ A218 0.035 (0.07) (1) Application refl ector XUZ C50HP included with the sensor. (2) For a 5 m long cable, replace L2 by L5. Example: XUB TAPSNL2 becomes XUB TAPSNL5. (3) For further information, see page 37012/3. (4) For further information, see page 37012/2. References 524074 XUB TpppWL2 XUB TpppWM12 524038 XUB TpppNL2 550003 524072 XUZ B2003 805799 XUZ C50 XUZ A118 805818 805817 XUZ A218 520312 XUZ 2001 520984 XUZ 2003 XUB TpppNM12 524073 XUZ C50HP 536353 30176-EN_Ver4.0.indd 1 2 3 4 5 6 7 8 9 10
