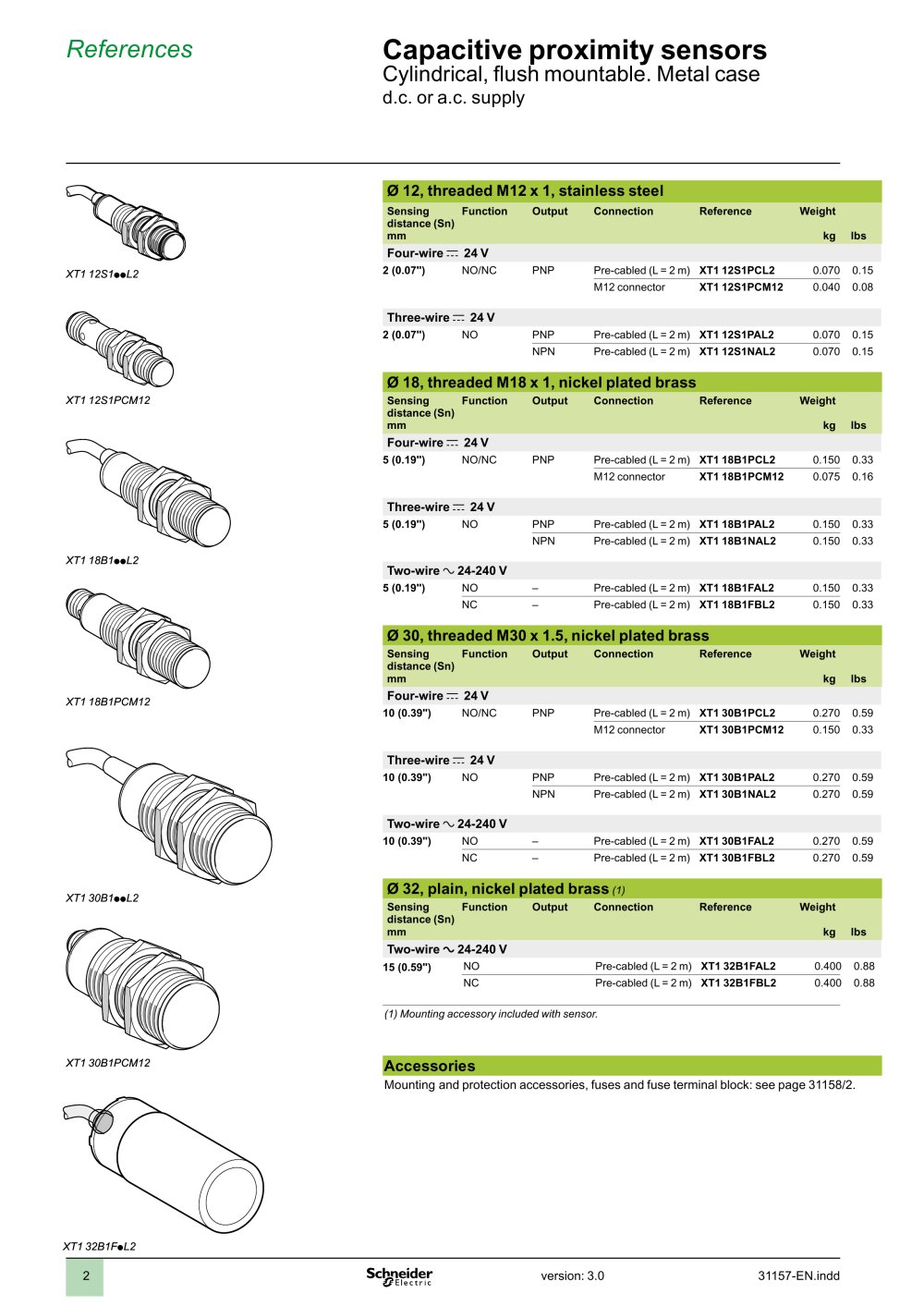

2 References Capacitive proximity sensors Cylindrical, flush mountable. Metal case d.c. or a.c. supply Ø 12, threaded M12 x 1, stainless steel Sensing distance (Sn) mm Function Output Connection Reference Weight kg lbs Four-wire c 24 V 2 (0.07") NO/NC PNP Pre-cabled (L = 2 m) XT1 12S1PCL2 0.070 0.15 M12 connector XT1 12S1PCM12 0.040 0.08 Three-wire c 24 V 2 (0.07") NO PNP Pre-cabled (L = 2 m) XT1 12S1PAL2 0.070 0.15 NPN Pre-cabled (L = 2 m) XT1 12S1NAL2 0.070 0.15 Ø 18, threaded M18 x 1, nickel plated brass Sensing distance (Sn) mm Function Output Connection Reference Weight kg lbs Four-wire c 24 V 5 (0.19") NO/NC PNP Pre-cabled (L = 2 m) XT1 18B1PCL2 0.150 0.33 M12 connector XT1 18B1PCM12 0.075 0.16 Three-wire c 24 V 5 (0.19") NO PNP Pre-cabled (L = 2 m) XT1 18B1PAL2 0.150 0.33 NPN Pre-cabled (L = 2 m) XT1 18B1NAL2 0.150 0.33 Two-wire a 24-240 V 5 (0.19") NO – Pre-cabled (L = 2 m) XT1 18B1FAL2 0.150 0.33 NC – Pre-cabled (L = 2 m) XT1 18B1FBL2 0.150 0.33 Ø 30, threaded M30 x 1.5, nickel plated brass Sensing distance (Sn) mm Function Output Connection Reference Weight kg lbs Four-wire c 24 V 10 (0.39") NO/NC PNP Pre-cabled (L = 2 m) XT1 30B1PCL2 0.270 0.59 M12 connector XT1 30B1PCM12 0.150 0.33 Three-wire c 24 V 10 (0.39") NO PNP Pre-cabled (L = 2 m) XT1 30B1PAL2 0.270 0.59 NPN Pre-cabled (L = 2 m) XT1 30B1NAL2 0.270 0.59 Two-wire a 24-240 V 10 (0.39") NO – Pre-cabled (L = 2 m) XT1 30B1FAL2 0.270 0.59 NC – Pre-cabled (L = 2 m) XT1 30B1FBL2 0.270 0.59 Ø 32, plain, nickel plated brass (1) Sensing distance (Sn) mm Function Output Connection Reference Weight kg lbs Two-wire a 24-240 V 15 (0.59") NO Pre-cabled (L = 2 m) XT1 32B1FAL2 0.400 0.88 NC Pre-cabled (L = 2 m) XT1 32B1FBL2 0.400 0.88 (1) Mounting accessory included with sensor. Accessories Mounting and protection accessories, fuses and fuse terminal block: see page 31158/2. XT1 12S1ppL2 XT1 12S1PCM12 XT1 18B1ppL2 XT1 18B1PCM12 XT1 30B1ppL2 XT1 30B1PCM12 XT1 32B1FpL2 version: 3.0 31157-EN.indd 1 2 3 4 5 6 7 8 9 10
