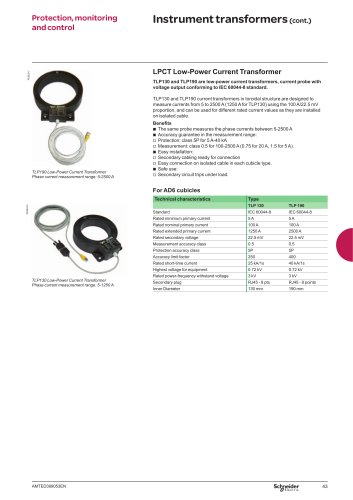

F400 Air insulated switchboard (1 to 40.5 kV) - 47 / 68 Pages

protection, monitoring Instrument transformers

and control

TLP190 Low-Power Current Transformer

Phase current measurement range: 5-2500 A

LPCT Low-Power Current Transformer

TLP130 and TLP190 are low-power current transformers, current probe with

voltage output conforming to IEC 60044-8 standard.

TLP130 and TLP190 current transformers in toroidal structure are designed to

measure currents from 5 to 2500 A (1250 A for TLP130) using the 100 A/22.5 mV

proportion, and can be used for different rated current values as they are installed

on isolated cable.

Benefits

■ The same probe measures the phase currents between 5-2500 A

■ Accuracy guarantee in the measurement range:

□ Protection: class 5P for 5 A-40 kA

□ Measurement: class 0.5 for 100-2500 A (0.75 for 20 A, 1.5 for 5 A).

■ Easy installation:

□ Secondary cabling ready for connection

□ Easy connection on isolated cable in each cubicle type.

■ Safe use:

□ Secondary circuit trips under load.

For AD6 cubicles

TLP130 Low-Power Current Transformer

Phase current measurement range: 5-1250 A

Technical characteristics

Type



TLP130 TLP190

Standard

IEC 60044-8 IEC 60044-8

Rated minimum primary current

5A 5A

Rated nominal primary current

100A 100A

Rated extended primary current

1250 A 2500 A

Rated secondary voltage

22.5 mV 22.5 mV

Measurement accuracy class

0.5 0.5

Protection accuracy class

5P 5P

Accuracy limit factor

250 400

Rated short-time current

25kA/1s 40kA/1s

Highest voltage for equipment

0.72 kV 0.72 kV

Rated power-frequency withstand voltage

3 kV 3 kV

Secondary plug

RJ45 - 8 pts RJ45 - 8 points

Inner Diameter

130 mm 190 mm

AMTED399053EN

Schneider

©Electric

43
