Operator dialogue terminals 1
Magelis XBT GK Advanced Panels with
5.7” screen
Details

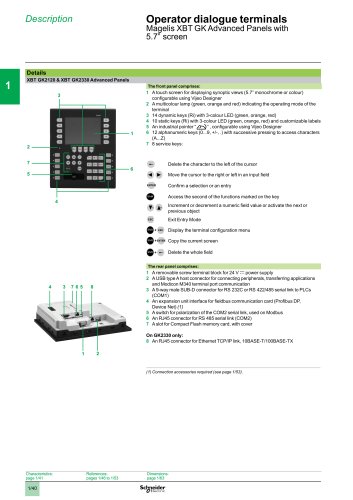

XBT GK2120 & XBT GK2330 Advanced Panels
The front panel comprises:
1 A touch screen for displaying synoptic views (5.7” monochrome or colour)
configurable using Vijeo Designer
2 A multicolour lamp (green, orange and red) indicating the operating mode of the
terminal
3 14 dynamic keys (Ri) with 3-colour LED (green, orange, red)
4 10 static keys (Ri) with 3-colour LED (green, orange, red) and customizable labels
5 An industrial pointer “ ” , configurable using Vijeo Designer
6 12 alphanumeric keys (0...9, +/-, .) with successive pressing to access characters
(A...Z)
7 8 service keys:
Delete the character to the left of the cursor
Move the cursor to the right or left in an input field
Confirm a selection or an entry
Access the second of the functions marked on the key
Increment or decrement a numeric field value or activate the next or
previous object
Exit Entry Mode
Display the terminal configuration menu
Copy the current screen
Delete the whole field
The rear panel comprises:
1 A removable screw terminal block for 24 V c power supply
2 A USB type A host connector for connecting peripherals, transferring applications
and Modicon M340 terminal port communication
3 A 9-way male SUB-D connector for RS 232C or RS 422/485 serial link to PLCs
(COM1)
4 An expansion unit interface for fieldbus communication card (Profibus DP,
Device Net) (1)
5 A switch for polarization of the COM2 serial link, used on Modbus
6 An RJ45 connector for RS 485 serial link (COM2)
7 A slot for Compact Flash memory card, with cover
On GK2330 only:
8 An RJ45 connector for Ethernet TCP/IP link, 10BASE-T/100BASE-TX
(1) Connection accessories required (see page 1/53).
