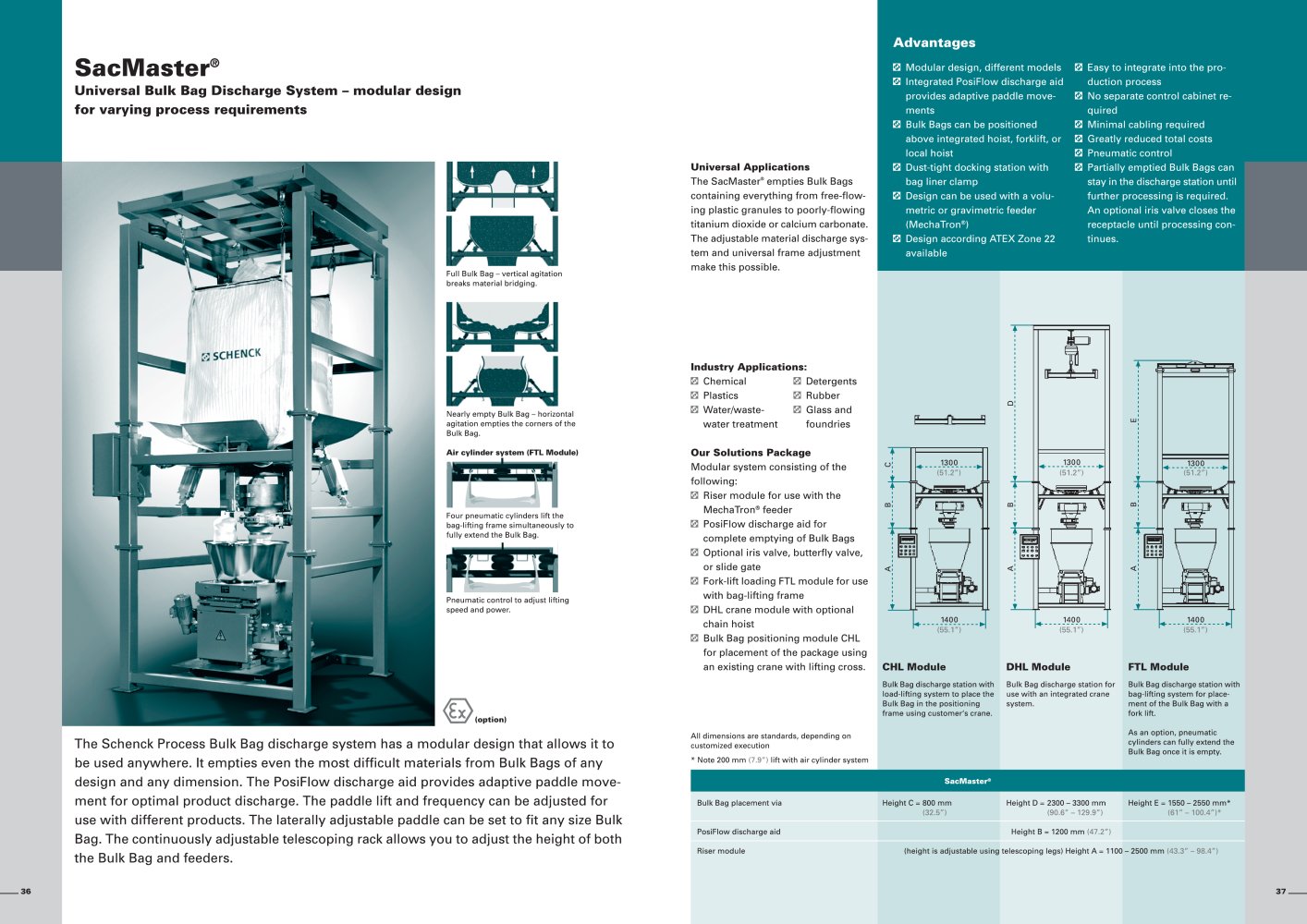

SacMaster - The Big Bag Discharge Station
% Robust self-supporting structure
% Modular construction
% Integrated PosiFlow bag agitation system
% Dust-free docking station with
inflating clamp
% Construction designed to integrate
a Schenck MechaTron feeder
% Hoist or fork-truck module for Big Bag positioning
% Explosion proof version available
FTL
CHL
DHL
Application
% Discharge of Big Bags
% Innovative docking system with inflating clamp for dust-free discharge
% Bag agitation system with
controlled paddle movements (PosiFlow) depending on filling level
% Easy-to-operate pneumatic
control
Equipment
Modular System:
% Modular system to meet varying process requirements
% Paddle discharge module for complete emptying of Big Bags
% Optionally equipped with iris valve, rotary valve or slide ga-te for control of material flow
% Fork-truck module FTL for bag placement with the use of a lifting frame
% Hoist module DHL with chain train (manual or automatic) equipped with lifting cross
% Positioning module CHL for bag placement using a crane at site equipped with lifting cross
Function
% Big Bag discharge
% Hoist / fork-truck / positioning module
% Bag agitation via paddles
% Easy handling
% Bag weight up to 2000 kg
% 1 m, 1.5 m or 2 m Big Bag heights max., 1.4 m edge length
% Suitable for use in hazardous areas
BV-D 2134GB
