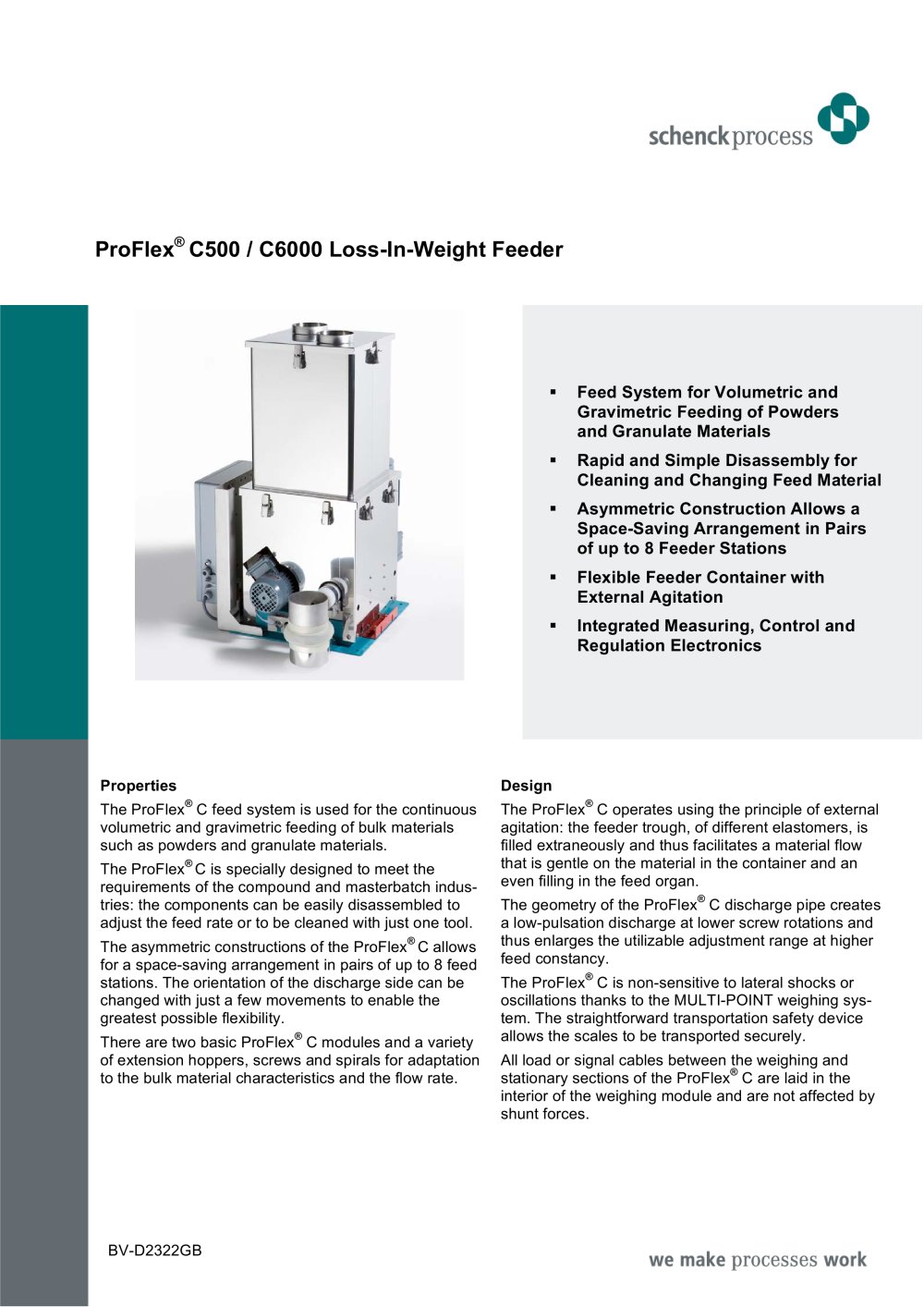

ProFlex® C500 / C6000 Loss-In-Weight Feeder .. Feed System for Volumetric and Gravimetric Feeding of Powders and Granulate Materials .. Rapid and Simple Disassembly for Cleaning and Changing Feed Material .. Asymmetric Construction Allows a Space-Saving Arrangement in Pairs of up to 8 Feeder Stations .. Flexible Feeder Container with External Agitation .. Integrated Measuring, Control and Regulation Electronics Properties The ProFlex® C feed system is used for the continuous volumetric and gravimetric feeding of bulk materials such as powders and granulate materials. The ProFlex® C is specially designed to meet the requirements of the compound and masterbatch indus-tries: the components can be easily disassembled to adjust the feed rate or to be cleaned with just one tool. The asymmetric constructions of the ProFlex® C allows for a space-saving arrangement in pairs of up to 8 feed stations. The orientation of the discharge side can be changed with just a few movements to enable the greatest possible flexibility. There are two basic ProFlex® C modules and a variety of extension hoppers, screws and spirals for adaptation to the bulk material characteristics and the flow rate. Design The ProFlex® C operates using the principle of external agitation: the feeder trough, of different elastomers, is filled extraneously and thus facilitates a material flow that is gentle on the material in the container and an even filling in the feed organ. The geometry of the ProFlex® C discharge pipe creates a low-pulsation discharge at lower screw rotations and thus enlarges the utilizable adjustment range at higher feed constancy. The ProFlex® C is non-sensitive to lateral shocks or oscillations thanks to the MULTI-POINT weighing sys-tem. The straightforward transportation safety device allows the scales to be transported securely. All load or signal cables between the weighing and stationary sections of the ProFlex® C are laid in the interior of the weighing module and are not affected by shunt forces. BV-XXXXX D2322GB
