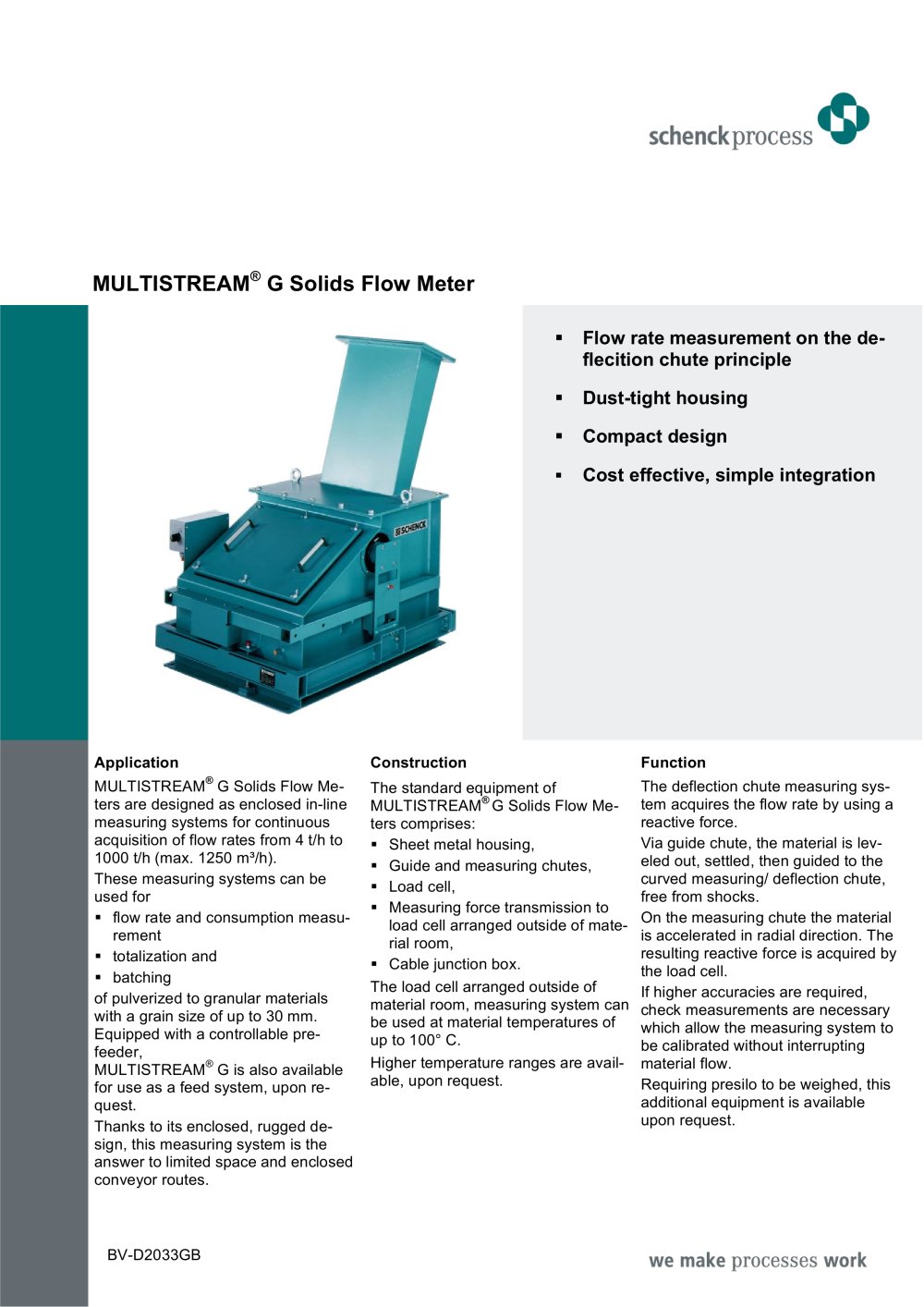

MULTISTREAMŽ G Solids Flow Meter
.. Flow rate measurement on the deflecition
chute principle
.. Dust-tight housing
.. Compact design
.. Cost effective, simple integration
Application
MULTISTREAMŽ G Solids Flow Meters
are designed as enclosed in-line
measuring systems for continuous
acquisition of flow rates from 4 t/h to
1000 t/h (max. 1250 mł/h).
These measuring systems can be
used for
.. flow rate and consumption measurement
.. totalization and
.. batching
of pulverized to granular materials
with a grain size of up to 30 mm.
Equipped with a controllable prefeeder,
MULTISTREAMŽ G is also available
for use as a feed system, upon request.
Thanks to its enclosed, rugged design,
this measuring system is the
answer to limited space and enclosed
conveyor routes.
Construction
The standard equipment of
MULTISTREAMŽ G Solids Flow Meters
comprises:
.. Sheet metal housing,
.. Guide and measuring chutes,
.. Load cell,
.. Measuring force transmission to
load cell arranged outside of material
room,
.. Cable junction box.
The load cell arranged outside of
material room, measuring system can
be used at material temperatures of
up to 100° C.
Higher temperature ranges are available,
upon request.
Function
The deflection chute measuring system
acquires the flow rate by using a
reactive force.
Via guide chute, the material is leveled
out, settled, then guided to the
curved measuring/ deflection chute,
free from shocks.
On the measuring chute the material
is accelerated in radial direction. The
resulting reactive force is acquired by
the load cell.
If higher accuracies are required,
check measurements are necessary
which allow the measuring system to
be calibrated without interrupting
material flow.
Requiring presilo to be weighed, this
additional equipment is available
upon request.
BV-D2033GB
