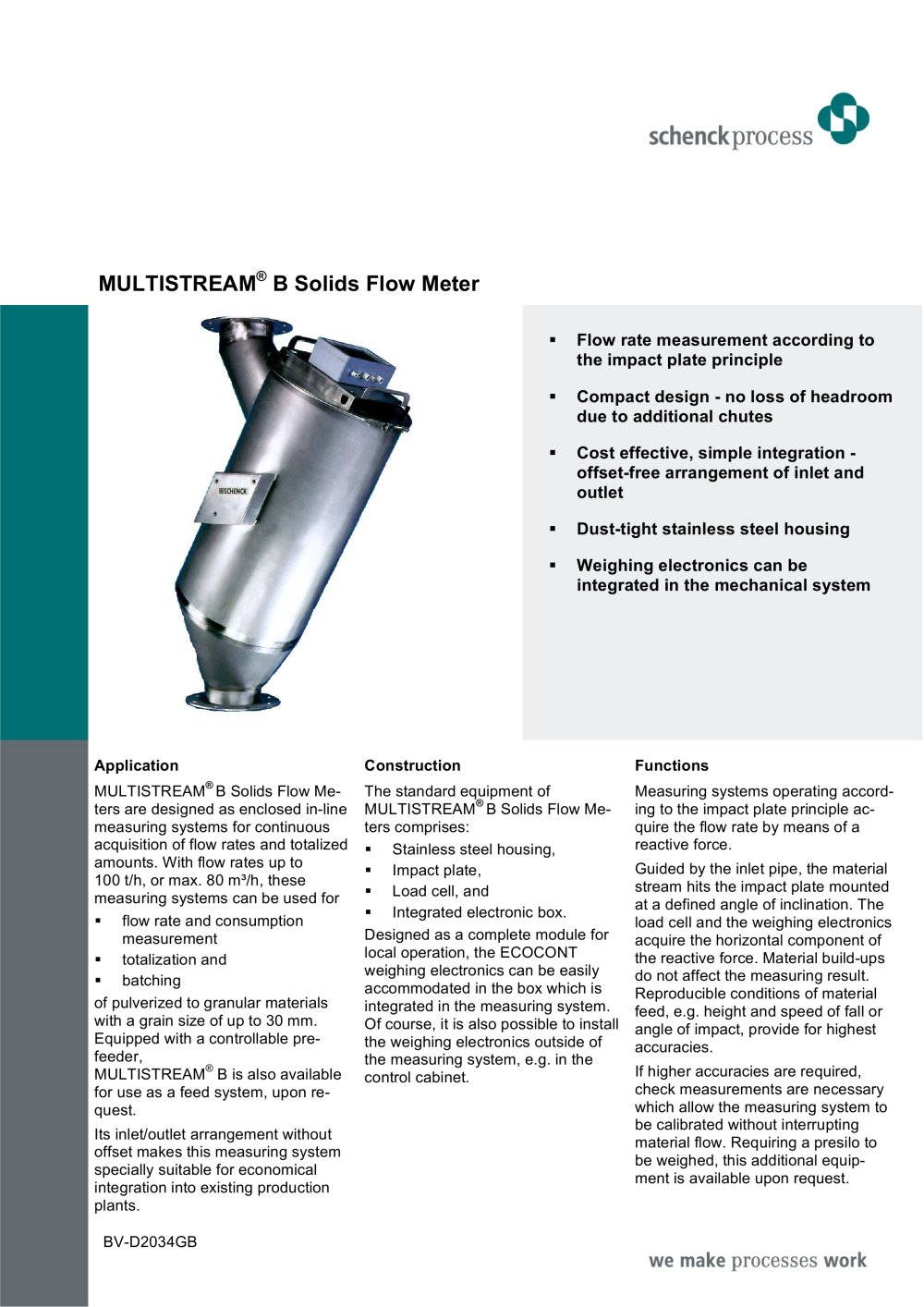

MULTISTREAMŽ B Solids Flow Meter
.. Flow rate measurement according to
the impact plate principle
.. Compact design - no loss of headroom
due to additional chutes
.. Cost effective, simple integration -
offset-free arrangement of inlet and
outlet
.. Dust-tight stainless steel housing
.. Weighing electronics can be
integrated in the mechanical system
Application
MULTISTREAMŽ B Solids Flow Meters
are designed as enclosed in-line
measuring systems for continuous
acquisition of flow rates and totalized
amounts. With flow rates up to
100 t/h, or max. 80 mł/h, these
measuring systems can be used for
.. flow rate and consumption
measurement
.. totalization and
.. batching
of pulverized to granular materials
with a grain size of up to 30 mm.
Equipped with a controllable prefeeder,
MULTISTREAMŽ B is also available
for use as a feed system, upon request.
Its inlet/outlet arrangement without
offset makes this measuring system
specially suitable for economical
integration into existing production
plants.
Construction
The standard equipment of
MULTISTREAMŽ B Solids Flow Meters
comprises:
.. Stainless steel housing,
.. Impact plate,
.. Load cell, and
.. Integrated electronic box.
Designed as a complete module for
local operation, the ECOCONT
weighing electronics can be easily
accommodated in the box which is
integrated in the measuring system.
Of course, it is also possible to install
the weighing electronics outside of
the measuring system, e.g. in the
control cabinet.
Functions
Measuring systems operating according
to the impact plate principle acquire
the flow rate by means of a
reactive force.
Guided by the inlet pipe, the material
stream hits the impact plate mounted
at a defined angle of inclination. The
load cell and the weighing electronics
acquire the horizontal component of
the reactive force. Material build-ups
do not affect the measuring result.
Reproducible conditions of material
feed, e.g. height and speed of fall or
angle of impact, provide for highest
accuracies.
If higher accuracies are required,
check measurements are necessary
which allow the measuring system to
be calibrated without interrupting
material flow. Requiring a presilo to
be weighed, this additional equipment
is available upon request.
BV-D2034GB
