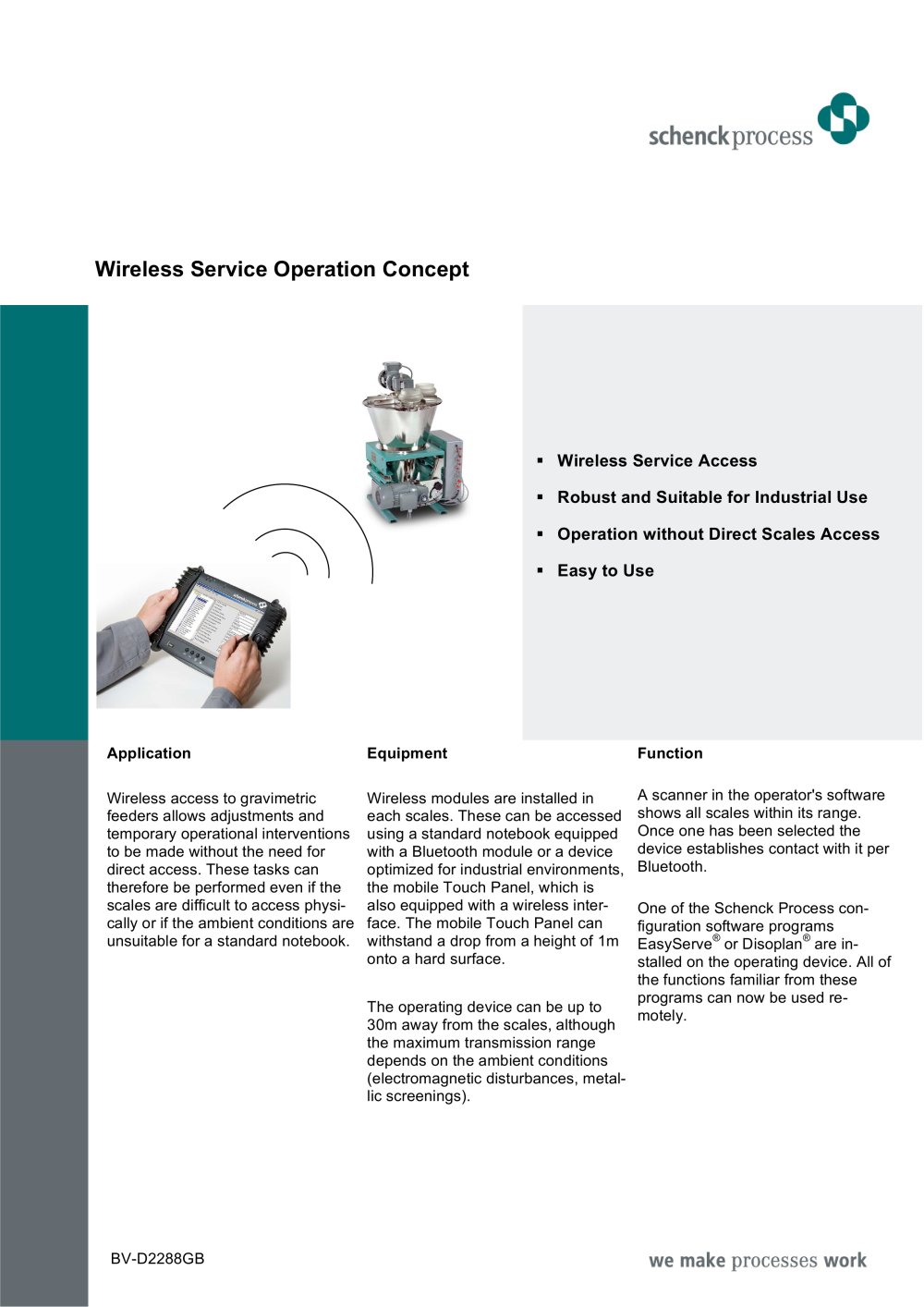

Wireless Service Operation Concept Application Wireless access to gravimetric feeders allows adjustments and temporary operational interventions to be made without the need for direct access. These tasks can therefore be performed even if the scales are difficult to access physically or if the ambient conditions are unsuitable for a standard notebook. Equipment Wireless modules are installed in each scales. These can be accessed using a standard notebook equipped with a Bluetooth module or a device optimized for industrial environments, the mobile Touch Panel, which is also equipped with a wireless interface. The mobile Touch Panel can withstand a drop from a height of 1m onto a hard surface. The operating device can be up to 30m away from the scales, although the maximum transmission range depends on the ambient conditions (electromagnetic disturbances, metallic screenings). Function A scanner in the operator's software shows all scales within its range. Once one has been selected the device establishes contact with it per Bluetooth. One of the Schenck Process configuration software programs EasyServe® or Disoplan® are installed on the operating device. All of the functions familiar from these programs can now be used remotely. .. Wireless Service Access .. Robust and Suitable for Industrial Use .. Operation without Direct Scales Access .. Easy to Use BV-D2288GB
