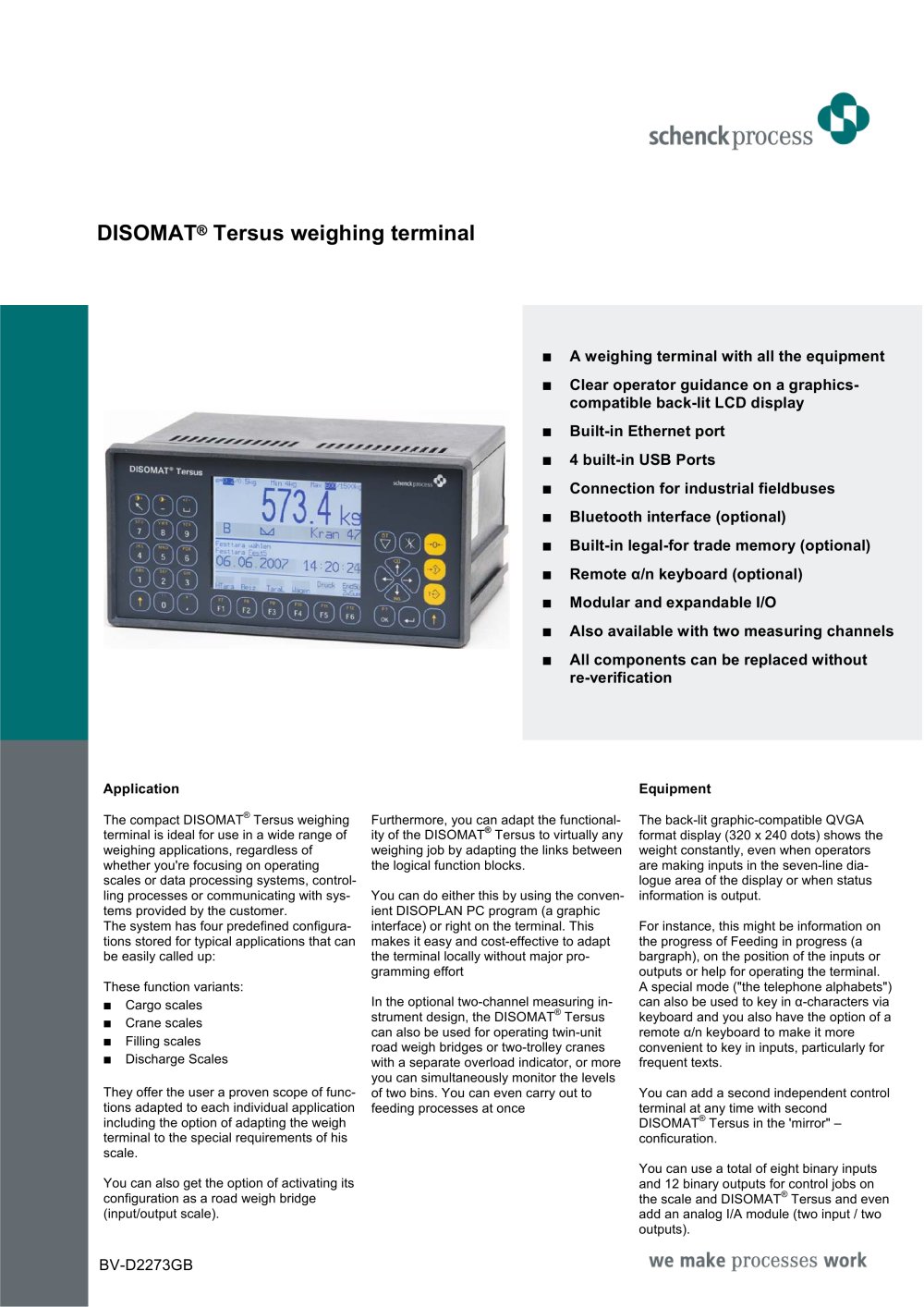

DISOMAT® Tersus weighing terminal % A weighing terminal with all the equipment % Clear operator guidance on a graphics-compatible back-lit LCD display % Built-in Ethernet port % 4 built-in USB Ports % Connection for industrial fieldbuses % Bluetooth interface (optional) % Built-in legal-for trade memory (optional) % Remote á/n keyboard (optional) % Modular and expandable I/O % Also available with two measuring channels % All components can be replaced without re-verification Application The compact DISOMAT® Tersus weighing terminal is ideal for use in a wide range of weighing applications, regardless of whether you're focusing on operating scales or data processing systems, control-ling processes or communicating with sys-tems provided by the customer. The system has four predefined configura-tions stored for typical applications that can be easily called up: These function variants: % Cargo scales % Crane scales % Filling scales % Discharge Scales They offer the user a proven scope of func-tions adapted to each individual application including the option of adapting the weigh terminal to the special requirements of his scale. You can also get the option of activating its configuration as a road weigh bridge (input/output scale). Furthermore, you can adapt the functional-ity of the DISOMAT® Tersus to virtually any weighing job by adapting the links between the logical function blocks. You can do either this by using the conven-ient DISOPLAN PC program (a graphic interface) or right on the terminal. This makes it easy and cost-effective to adapt the terminal locally without major pro-gramming effort In the optional two-channel measuring in-strument design, the DISOMAT® Tersus can also be used for operating twin-unit road weigh bridges or two-trolley cranes with a separate overload indicator, or more you can simultaneously monitor the levels of two bins. You can even carry out to feeding processes at once Equipment The back-lit graphic-compatible QVGA format display (320 x 240 dots) shows the weight constantly, even when operators are making inputs in the seven-line dia-logue area of the display or when status information is output. For instance, this might be information on the progress of Feeding in progress (a bargraph), on the position of the inputs or outputs or help for operating the terminal. A special mode ("the telephone alphabets") can also be used to key in á-characters via keyboard and you also have the option of a remote á/n keyboard to make it more convenient to key in inputs, particularly for frequent texts. You can add a second independent control terminal at any time with second DISOMAT® Tersus in the 'mirror" – conficuration. You can use a total of eight binary inputs and 12 binary outputs for control jobs on the scale and DISOMAT® Tersus and even add an analog I/A module (two input / two outputs). BV-D2273GB
