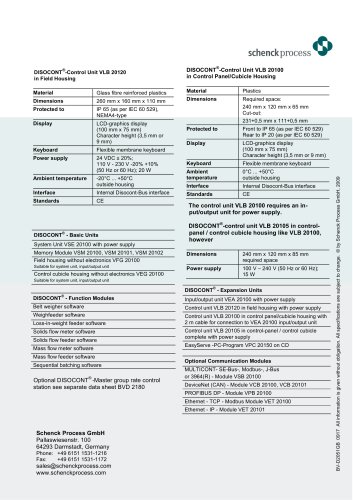

DISOCONT ® - 4 / 4 Pages

DISOCONT®-Control Unit VLB 20120
in Field Housing
Material
Glass fibre reinforced plastics
Dimensions
260 mm x 160 mm x 110 mm
Protected to
IP 65 (as per IEC 60 529), NEMA4-type
Display
LCD-graphics display (100 mm x 75 mm) Character height (3,5 mm or 9 mm)
Keyboard
Flexible membrane keyboard
Power supply
24 VDC ± 20%; 110 V - 230 V -20% +10% (50 Hz or 60 Hz); 20 W
Ambient temperature
-20°C ... +50°C outside housing
Interface
Internal Disocont-Bus interface
Standards
CE
DISOCONT® - Basic Units
System Unit VSE 20100 with power supply
Memory Module VSM 20100, VSM 20101, VSM 20102
Field housing without electronics VFG 20100
Suitable for system unit, input/output unit
Control cubicle housing without electronics VEG 20100
Suitable for system unit, input/output unit
DISOCONT® - Function Modules
Belt weigher software
Weighfeeder software
Loss-in-weight feeder software
Solids flow meter software
Solids flow feeder software
Mass flow meter software
Mass flow feeder software
Sequential batching software
Optional DISOCONT® -Master group rate control station see separate data sheet BVD 2180
DISOCONT®-Control Unit VLB 20100 in Control Panel/Cubicle Housing
Material
Plastics
Dimensions
Required space:
240 mm x 120 mm x 65 mm Cut-out:
231+0,5 mm x 111+0,5 mm
Protected to
Front to IP 65 (as per IEC 60 529) Rear to IP 20 (as per IEC 60 529)
Display
LCD-graphics display (100 mm x 75 mm) Character height (3,5 mm or 9 mm)
Keyboard
Flexible membrane keyboard
Ambient temperature
0°C ... +50°C outside housing
Interface
Internal Disocont-Bus interface
Standards
CE
BV-D2051GB 0917 All information is given without obligation. All specifications are subject to change. © by Schenck Process GmbH, 2009
The control unit VLB 20100 requires an in-put/output unit for power supply.
DISOCONT®-control unit VLB 20105 in control-panel / control cubicle housing like VLB 20100, however
Dimensions
240 mm x 120 mm x 85 mm required space
Power supply
100 V – 240 V (50 Hz or 60 Hz); 15 W
DISOCONT® - Expansion Units
Input/output unit VEA 20100 with power supply
Control unit VLB 20120 in field housing with power supply
Control unit VLB 20100 in control panel/cubicle housing with 2 m cable for connection to VEA 20100 input/output unit
Control unit VLB 20105 in control-panel / control cubicle complete with power supply
EasyServe -PC-Program VPC 20150 on CD
Optional Communication Modules
MULTICONT- SE-Bus-, Modbus-, J-Bus
or 3964(R) - Module VSB 20100
DeviceNet (CAN) - Module VCB 20100, VCB 20101
PROFIBUS DP - Module VPB 20100
Ethernet - TCP - Modbus Module VET 20100
Ethernet - IP - Module VET 20101
Schenck Process GmbH
Pallaswiesenstr. 100
64293 Darmstadt, Germany
Phone: +49 6151 1531-1216
Fax: +49 6151 1531-1172
sales@schenckprocess.com
www.schenckprocess.com
