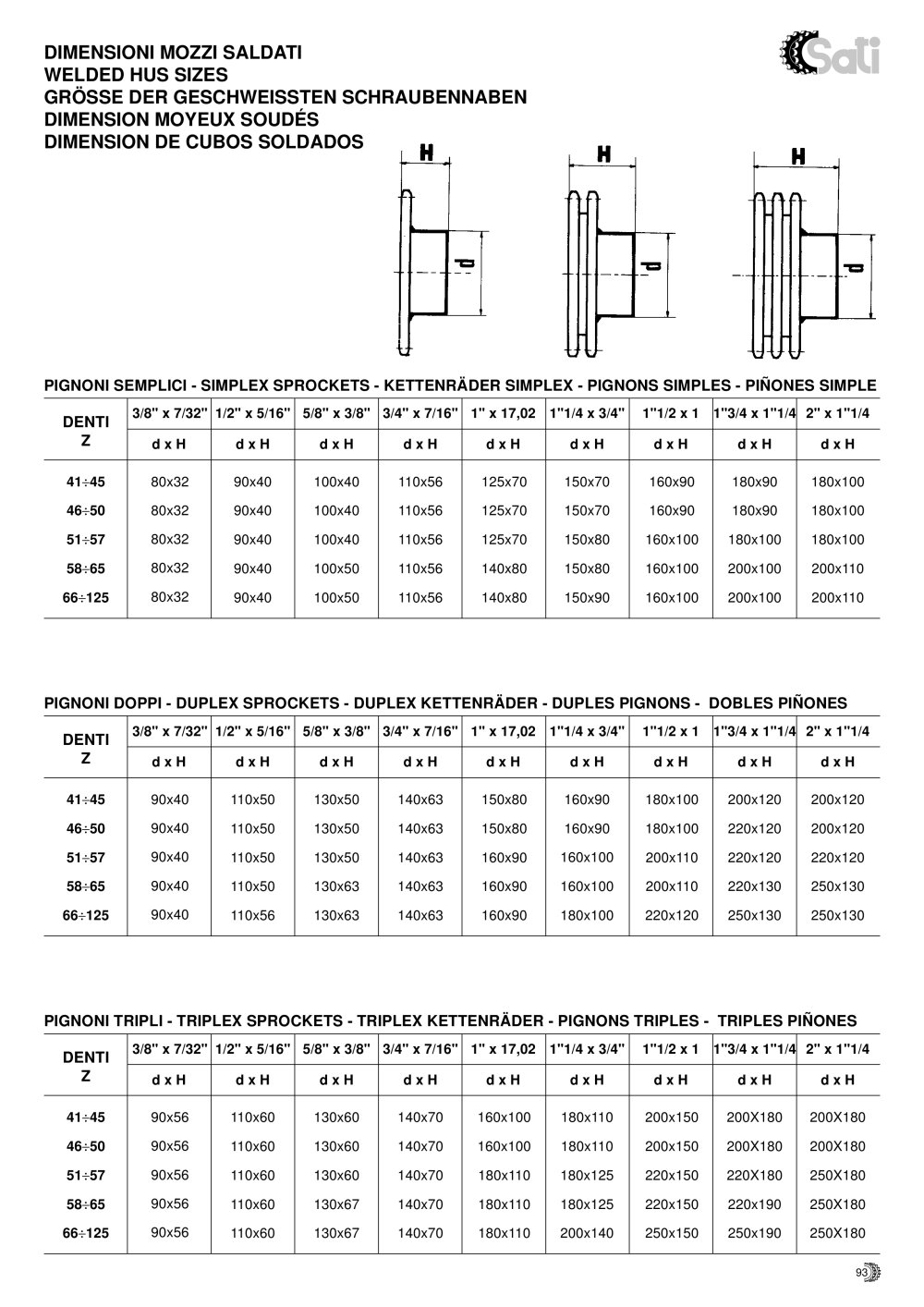

| | | dimensioni mozzi saldati welded hus sizes grosse der geschweissten schraubennaben dimension moyeux soudés dimension de cubos soldados | | |
| | | |
| | | pignoni semplici - simplex sprockets - Kettenräder simplex - pignons simples - piñones simple | | |
| | | |
| | | | | | | | | | | | | | | | | | denti z | 3/8" x 7/32" | 1/2" x 5/16" | 5/8" x 3/8" | 3/4" x 7/16" | I" x 17,02 | n/4 x 3/4" | ri/2 x I | 1"3/4 x ri/4 | 2" x ri/4 | | | | d x H | d x H | d x H | d x H | d x H | d x H | d x H | d x H | d x H | | | | 41-45 | 80x32 | 90x40 | 100x40 | 110x56 | 125x70 | 150x70 | 160x90 | 180x90 | 180x100 | | | | 46-50 | 80x32 | 90x40 | 100x40 | 110x56 | 125x70 | 150x70 | 160x90 | 180x90 | 180x100 | | | | 51-57 | 80x32 | 90x40 | 100x40 | 110x56 | 125x70 | 150x80 | 160x100 | 180x100 | 180x100 | | | | 58-65 | 80x32 | 90x40 | 100x50 | 110x56 | 140x80 | 150x80 | 160x100 | 200x100 | 200x110 | | | | 66-125 | 80x32 | 90x40 | 100x50 | 110x56 | 140x80 | 150x90 | 160x100 | 200x100 | 200x110 | | | | | | | | | | | | | | | | | |
| | | |
| | | pignoni doppi - duplex sprockets - duplex Kettenräder - duples pignons - dobles piñones | | |
| | | |
| | | | | | | | | | | | | | | | | | denti z | 3/8" x 7/32" | 1/2" x 5/16" | 5/8" x 3/8" | 3/4" x 7/16" | i" x 17,02 | 1"1/4 x 3/4" | 1"1/2 x i | 1"3/4 x ri/4 | 2" x ri/4 | | | | d x H | d x H | d x H | d x H | d x H | d x H | d x H | d x H | d x H | | | | 41-45 | 90x40 | 110x50 | 130x50 | 140x63 | 150x80 | 160x90 | 180x100 | 200x120 | 200x120 | | | | 46-50 | 90x40 | 110x50 | 130x50 | 140x63 | 150x80 | 160x90 | 180x100 | 220x120 | 200x120 | | | | 51-57 | 90x40 | 110x50 | 130x50 | 140x63 | 160x90 | 160x100 | 200x110 | 220x120 | 220x120 | | | | 58-65 | 90x40 | 110x50 | 130x63 | 140x63 | 160x90 | 160x100 | 200x110 | 220x130 | 250x130 | | | | 66-125 | 90x40 | 110x56 | 130x63 | 140x63 | 160x90 | 180x100 | 220x120 | 250x130 | 250x130 | | | | | | | | | | | | | | | | | |
| | | |
| | | pignoni tripli - triplex sprockets - triplex Kettenräder - pignons triples - triples piñones | | |
| | | |
| | | | | | | | | | | | | | | | | | denti z | 3/8" x 7/32" | 1/2" x 5/16" | 5/8" x 3/8" | 3/4" x 7/16" | i" x 17,02 | 1"1/4 x 3/4" | 1"1/2 x i | 1"3/4 x ri/4 | 2" x ri/4 | | | | d x H | d x H | d x H | d x H | d x H | d x H | d x H | d x H | d x H | | | | 41-45 | 90x56 | 110x60 | 130x60 | 140x70 | 160x100 | 180x110 | 200x150 | 200X180 | 200X180 | | | | 46-50 | 90x56 | 110x60 | 130x60 | 140x70 | 160x100 | 180x110 | 200x150 | 200X180 | 200X180 | | | | 51-57 | 90x56 | 110x60 | 130x60 | 140x70 | 180x110 | 180x125 | 220x150 | 220X180 | 250X180 | | | | 58-65 | 90x56 | 110x60 | 130x67 | 140x70 | 180x110 | 180x125 | 220x150 | 220x190 | 250X180 | | | | 66-125 | 90x56 | 110x60 | 130x67 | 140x70 | 180x110 | 200x140 | 250x150 | 250x190 | 250X180 | | | | | | | | | | | | | | | | | |
| | | |
| | | | | |
| | | |
| | | | | | | | | | | | | |
