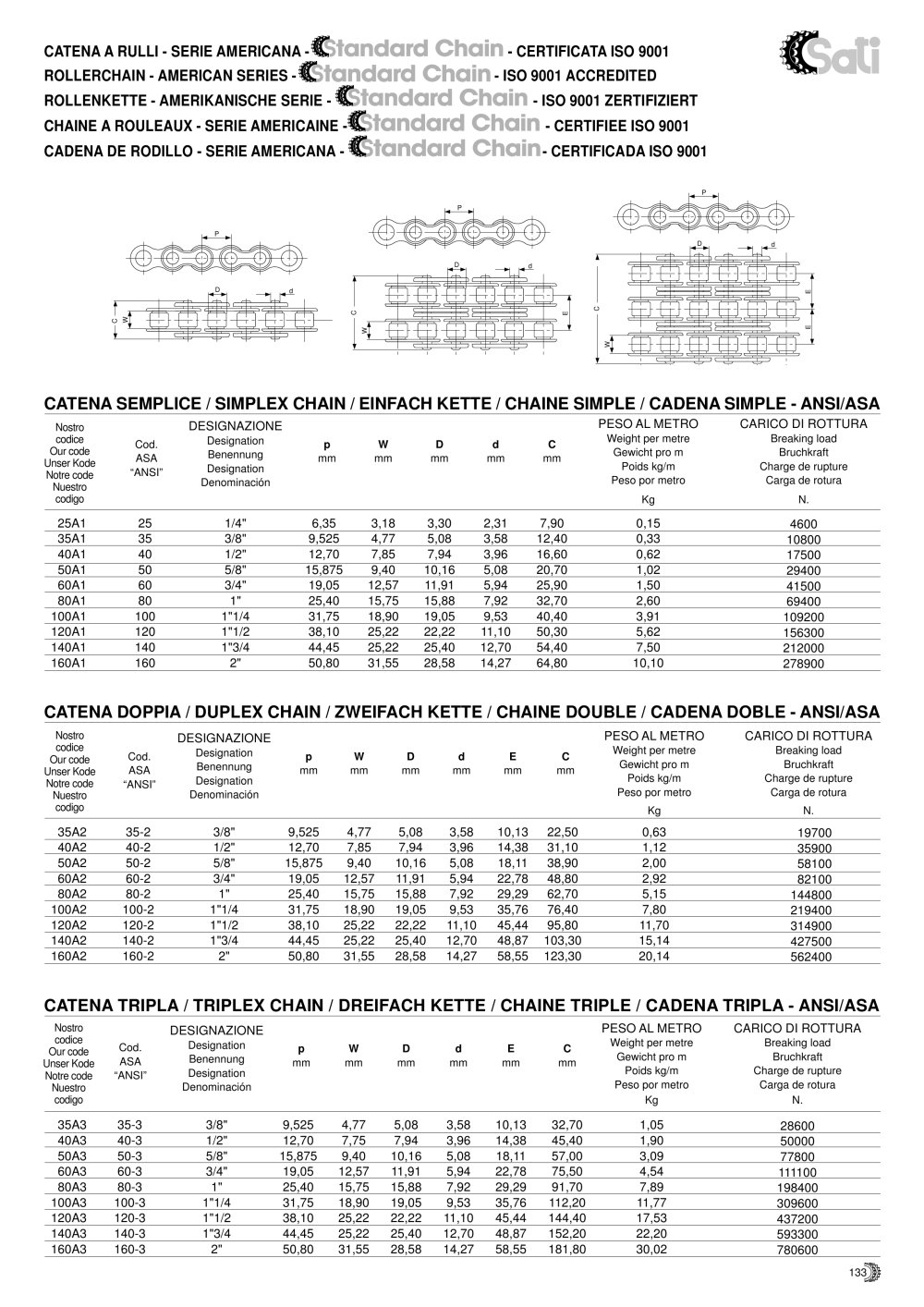

CATENA A RULLI - SERIE AMERICANA - C - CERTIFICATA ISO 9001
ROLLERCHAIN - AMERICAN SERIES - C - ISO 9001 ACCREDITED
ROLLENKETTE - AMERIKANISCHE SERIE - C - ISO 9001 ZERTIFIZIERT
CHAINE A ROULEAUX - SERIE AMERICAINE -C - CERTIFIEE ISO 9001
CADENA DE RODILLO - SERIE AMERICANA - C - CERTIFICADA ISO 9001
CATENA SEMPLICE / SIMPLEX CHAIN / EINFACH KETTE / CHAINE SIMPLE / CADENA SIMPLE - ANSI/ASA
Nostro
DESIGNAZIONE
PESO AL METRO
CARICO DI ROTTURA
codice Our code Unser Kode Notre code Nuestro
Cod. ASA "ANSI"
Designation Benennung Designation Denominación
P
mm
W
mm
D
mm
d
mm
C
mm
Weight per metre Gewicht pro m
Poids kg/m Peso por metro
Breaking load Bruchkraft Charge de rupture Carga de rotura
codigo
Kg
N.
25A1
25
1/4"
6,35
3,18
3,30
2,31
7,90
0,15
4600
35A1
35
3/8"
9,525
4,77
5,08
3,58
12,40
0,33
10800
40A1
40
1/2"
12,70
7,85
7,94
3,96
16,60
0,62
17500
50A1
50
5/8"
15,875
9,40
10,16
5,08
20,70
1,02
29400
60A1
60
3/4"
19,05
12,57
11,91
5,94
25,90
1,50
41500
80A1
80
1"
25,40
15,75
15,88
7,92
32,70
2,60
69400
100A1
100
1"1/4
31,75
18,90
19,05
9,53
40,40
3,91
109200
120A1
120
1"1/2
38,10
25,22
22,22
11,10
50,30
5,62
156300
140A1
140
1"3/4
44,45
25,22
25,40
12,70
54,40
7,50
212000
160A1
160
2"
50,80
31,55
28,58
14,27
64,80
10,10
278900
CATENA DOPPIA / DUPLEX CHAIN / ZWEIFACH KETTE / CHAINE DOUBLE / CADENA DOBLE - ANSI/ASA
Nostro
DESIGNAZIONE
PESO AL METRO
CARICO DI ROTTURA
codice Our code Unser Kode Notre code Nuestro
Cod. ASA "ANSI"
Designation Benennung Designation Denominación
P
mm
W
mm
D
mm
d
mm
E
mm
C
mm
Weight per metre Gewicht pro m
Poids kg/m Peso por metro
Breaking load Bruchkraft Charge de rupture Carga de rotura
codigo
Kg
N.
35A2
35-2
3/8"
9,525
4,77
5,08
3,58
10,13
22,50
0,63
19700
40A2
40-2
1/2"
12,70
7,85
7,94
3,96
14,38
31,10
1,12
35900
50A2
50-2
5/8"
15,875
9,40
10,16
5,08
18,11
38,90
2,00
58100
60A2
60-2
3/4"
19,05
12,57
11,91
5,94
22,78
48,80
2,92
82100
80A2
80-2
1"
25,40
15,75
15,88
7,92
29,29
62,70
5,15
144800
100A2
100-2
1"1/4
31,75
18,90
19,05
9,53
35,76
76,40
7,80
219400
120A2
120-2
1"1/2
38,10
25,22
22,22
11,10
45,44
95,80
11,70
314900
140A2
140-2
1"3/4
44,45
25,22
25,40
12,70
48,87
103,30
15,14
427500
160A2
160-2
2"
50,80
31,55
28,58
14,27
58,55
123,30
20,14
562400
CATENA TRIPLA / TRIPLEX CHAIN / DREIFACH KETTE / CHAINE TRIPLE / CADENA TRIPLA - ANSI/ASA
Nostro codice Our code Unser Kode Notre code Nuestro codigo
Cod. ASA "ANSI"
DESIGNAZIONE
Designation Benennung Designation Denominación
P
mm
W
mm
D
mm
d
mm
E
mm
C
mm
PESO AL METRO
Weight per metre Gewicht pro m
Poids kg/m Peso por metro
Kg
CARICO DI ROTTURA
Breaking load Bruchkraft Charge de rupture Carga de rotura
N.
35A3
35-3
3/8"
9,525
4,77
5,08
3,58
10,13
32,70
1,05
28600
40A3
40-3
1/2"
12,70
7,75
7,94
3,96
14,38
45,40
1,90
50000
50A3
50-3
5/8"
15,875
9,40
10,16
5,08
18,11
57,00
3,09
77800
60A3
60-3
3/4"
19,05
12,57
11,91
5,94
22,78
75,50
4,54
111100
80A3
80-3
1"
25,40
15,75
15,88
7,92
29,29
91,70
7,89
198400
100A3
100-3
1"1/4
31,75
18,90
19,05
9,53
35,76
112,20
11,77
309600
120A3
120-3
1"1/2
38,10
25,22
22,22
11,10
45,44
144,40
17,53
437200
140A3
140-3
1"3/4
44,45
25,22
25,40
12,70
48,87
152,20
22,20
593300
160A3
160-3
2"
50,80
31,55
28,58
14,27
58,55
181,80
30,02
780600
