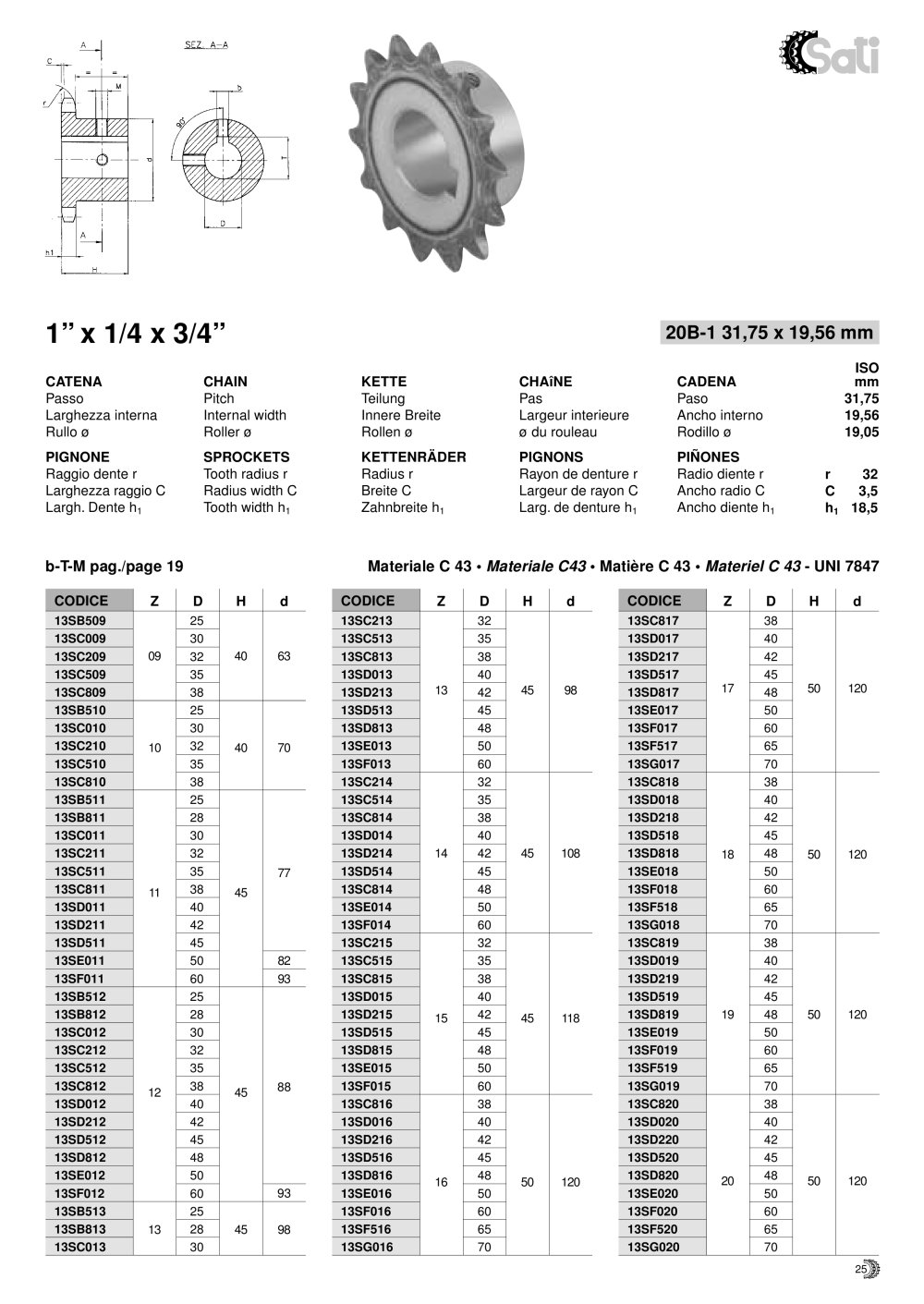

1" x 1/4 x 3/4"

20B-1 31,75 x 19,56 mm

CATENA

Passo

Larghezza interna Rullo 0

PIGNONE

Raggio dente r Larghezza raggio C Largh. Dente h!

CHAIN

Pitch

Internai width Roller 0

SPROCKETS

Tooth radius r Radius width C Tooth width h!

KETTE

Teilung Innere Breite Rollen 0

KETTENRADER

Radius r Breite C Zahnbreite h!

CHAÎNE

Pas

Largeur interieure 0 du rouleau

PIGNONS

Rayon de denture r Largeur de rayon C Larg. de denture h!

CADENA

Paso

Ancho interno Rodillo 0

PINONES

Radio diente r Ancho radio C Ancho diente h!

ISO

mm 31,75 19,56 19,05

r

C

32 3,5

h₁ 18,5

b-T-M pag./page 19

Materiale C 43 • Materiale C43 • Matière C 43 • Matériel C 43 - UNI 7847


	CODICE	Z	D	H	d
	13SB509	09	25	40	63
	13SC009		30
	13SC209		32
	13SC509		35
	13SC809		38
	13SB510	"10	25	40	70
	13SC010		30
	13SC210		32
	13SC510		35
	13SC810		38
	13SB511	H	25	45	77
	13SB811		28
	13SC011		30
	13SC211		32
	13SC511		35
	13SC811		38
	13SD011		40
	13SD211		42
	13SD511		45
	13SE011		50		82
	13SF011		60		93
	13SB512		25	45	88
	13SB812		28
	13SC012		30
	13SC212		32
	13SC512		35
	13SC812		38
	13SD012		40
	13SD212		42
	13SD512		45
	13SD812		48
	13SE012		50
	13SF012		60		93
	13SB513	!3	25	45	98
	13SB813		28
	13SC013		30


	CODICE	Z	D	H	d
	13SC213	!3	32	45	98
	13SC513		35
	13SC813		38
	13SD013		40
	13SD213		42
	13SD513		45
	13SD813		48
	13SE013		50
	13SF013		60
	13SC214	!4	32	45	!08
	13SC514		35
	13SC814		38
	13SD014		40
	13SD214		42
	13SD514		45
	13SC814		48
	13SE014		50
	13SF014		60
	13SC215	!5	32	45	!!8
	13SC515		35
	13SC815		38
	13SD015		40
	13SD215		42
	13SD515		45
	13SD815		48
	13SE015		50
	13SF015		60
	13SC816	!6	38	50	!20
	13SD016		40
	13SD216		42
	13SD516		45
	13SD816		48
	13SE016		50
	13SF016		60
	13SF516		65
	13SG016		70


	CODICE	Z	D	H	d
	13SC817	!7	38	50	!20
	13SD017		40
	13SD217		42
	13SD517		45
	13SD817		48
	13SE017		50
	13SF017		60
	13SF517		65
	13SG017		70
	13SC818	!8	38	50	!20
	13SD018		40
	13SD218		42
	13SD518		45
	13SD818		48
	13SE018		50
	13SF018		60
	13SF518		65
	13SG018		70
	13SC819	!9	38	50	!20
	13SD019		40
	13SD219		42
	13SD519		45
	13SD819		48
	13SE019		50
	13SF019		60
	13SF519		65
	13SG019		70
	13SC820	20	38	50	!20
	13SD020		40
	13SD220		42
	13SD520		45
	13SD820		48
	13SE020		50
	13SF020		60
	13SF520		65
	13SG020		70
