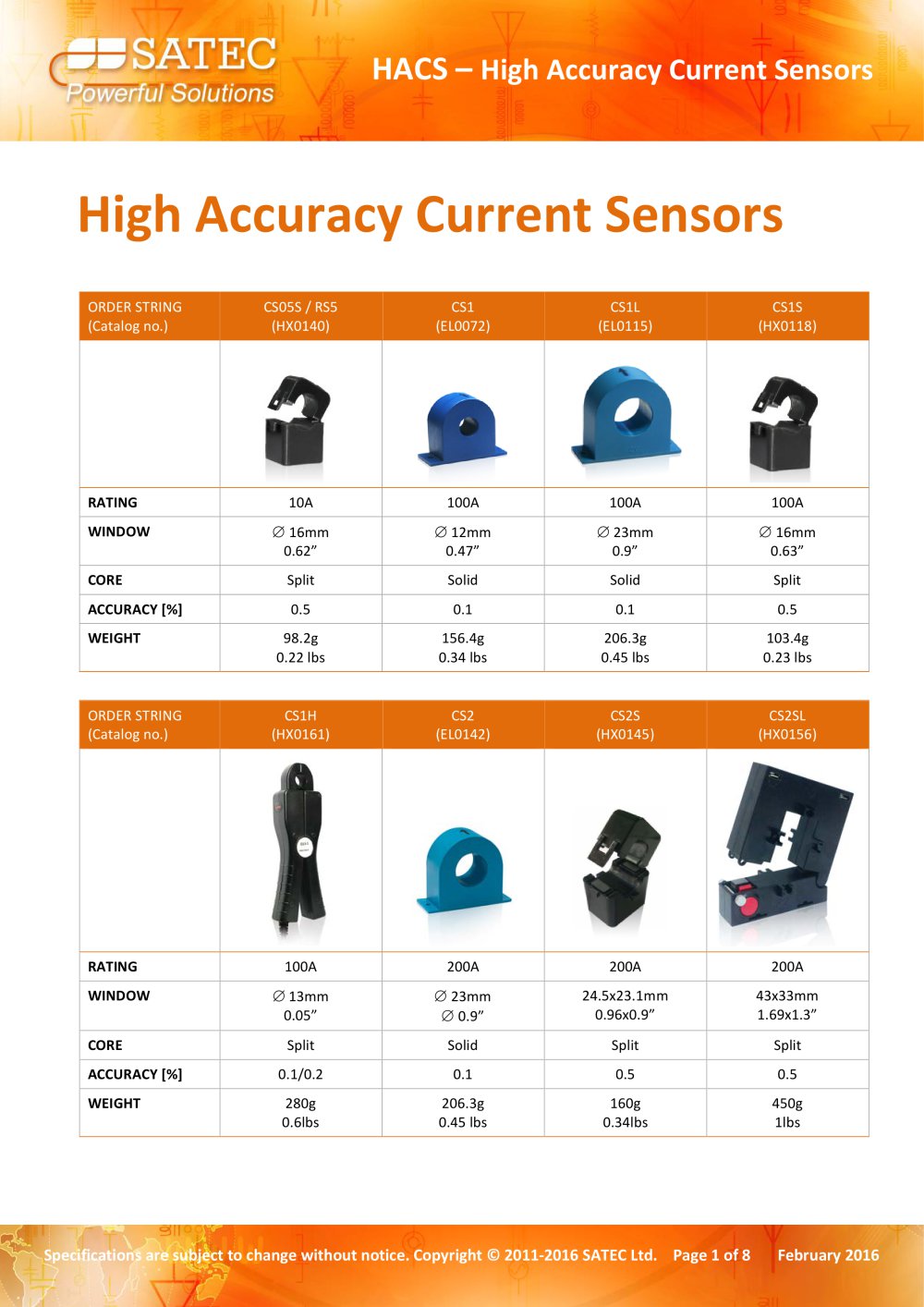

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:12.00pt "Arial", sans-serif; } .font4 { font:14.00pt "Arial", sans-serif; } .font5 { font:23.00pt "Arial", sans-serif; } .font6 { font:26.00pt "Arial", sans-serif; } .font7 { font:30.00pt "Arial", sans-serif; } .font8 { font:98.00pt "Verdana", sans-serif; } G ATEC erful Solutions Current Transformers Current Transformers ORDER STRING CT05S CT1 CT1L CT1S (Catalog no.) (HX0140) (EL0072) (EL0072) (HX0118/HX0129) a ^^^^ RATIO 10A/5mA 100A/40mA 100A/40mA 100A/40mA WINDOW 0 16mm / 0.62" 0 12mm / 0.47" 0 23mm / 0.9" 0 16mm / 0.6" CORE Split Solid Solid Split ACCURACY 0.5% 0.1°% 0.1°% 0.5°% BURDEN 0.2 VA 0.2 VA 0.2 VA 0.2 VA APPROX. WEIGHT 98.2g / 0.2 lbs 156.4g / 0.3 lbs 206.3g / 0.4 lbs 103.4g / 0.2 lbs ORDER STRING CT4 CT4S CT8S CT12S (Catalog no.) (EL0117) (HX0123) (HX0138) (HX0137) RATIO 400A/40mA 400A/40mA 800A/40mA 1200A/40mA WINDOW 0 26mm / 1" 0 30.5mm / 1.2" 50x80mm / 1.9x3.1" 121x80mm / 4.7x3.1" ACCURACY 0.1°% 0.5%% 0.5%% 0.5%% CORE Solid Split Split Split BURDEN 0.2 VA 0.2 VA 0.2 VA 0.2 VA APPROX. WEIGHT 214.2g / 0.5 lbs 566g / 1.2 lbs 1.0kg / 2.2 lbs 1.5kg / 3.3 lbs Specifications are subj ht © 2011 SATEC Ltd. Page 1 of 4 ^
