| Multi-client billing □ Up to 12 3-phase circuits or 36 single-phase orany combination □ Accuracy improved revenue billing: Certified class 0.5S | |||||||||||||||||||||

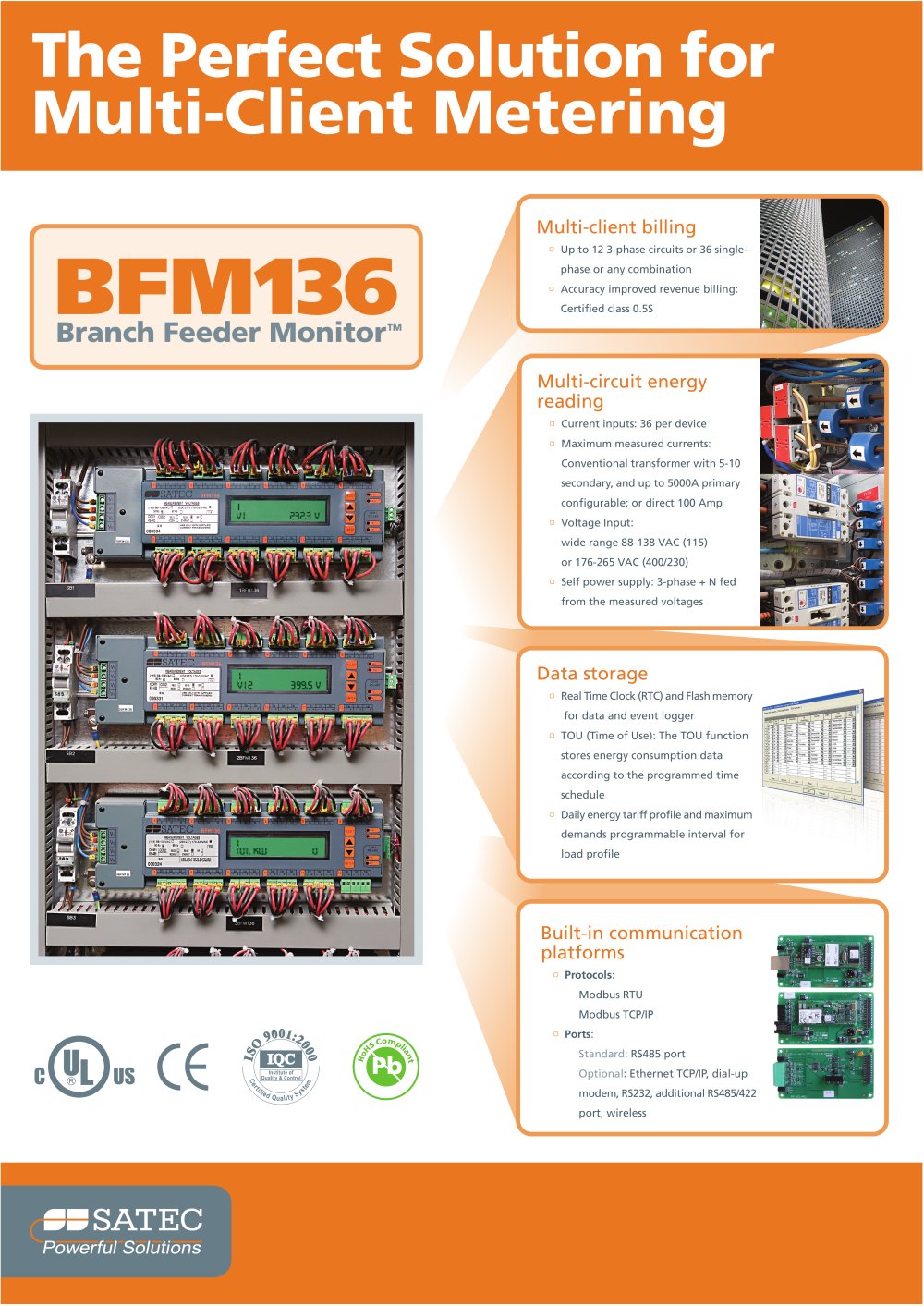

| BFM136 | |||||||||||||||||||||
| Branch Feeder Monitor | |||||||||||||||||||||
| TM | |||||||||||||||||||||
| Multi-circuit energy reading □ Current inputs: 36 per device □ Maximum measured currents: Conventional transformer with 5-10 secondary, and up to 5000A primary configurable; or direct 100 Amp □ Voltage Input: widerange 88-138VAC (115) or 176-265VAC (400/230) □ Self power supply: 3-phase + N fed from the measured voltages | |||||||||||||||||||||
| Data storage □ Real Time Clock (RTC) and Flash memory for data and event logger □ TOU (Time of Use): The TOU function stores energy consumption data according to the programmed time schedule □ Daily energy tariff profile and maximum demands programmable interval for load profile | |||||||||||||||||||||
| Built-in communication platforms □ Protocols: Modbus RTU Modbus TCP/IP □ Ports: Standard: RS485 port Optional: Ethernet TCP/IP, dial-up modem, RS232, additional RS485/422 port, wireless | |||||||||||||||||||||
| C | US | ||||||||||||||||||||
| SS SATEC Powerful Solutions | |||||||||||||||||||||
