Robotics' suction cups > Moulded suction cups >

For bottles' handling

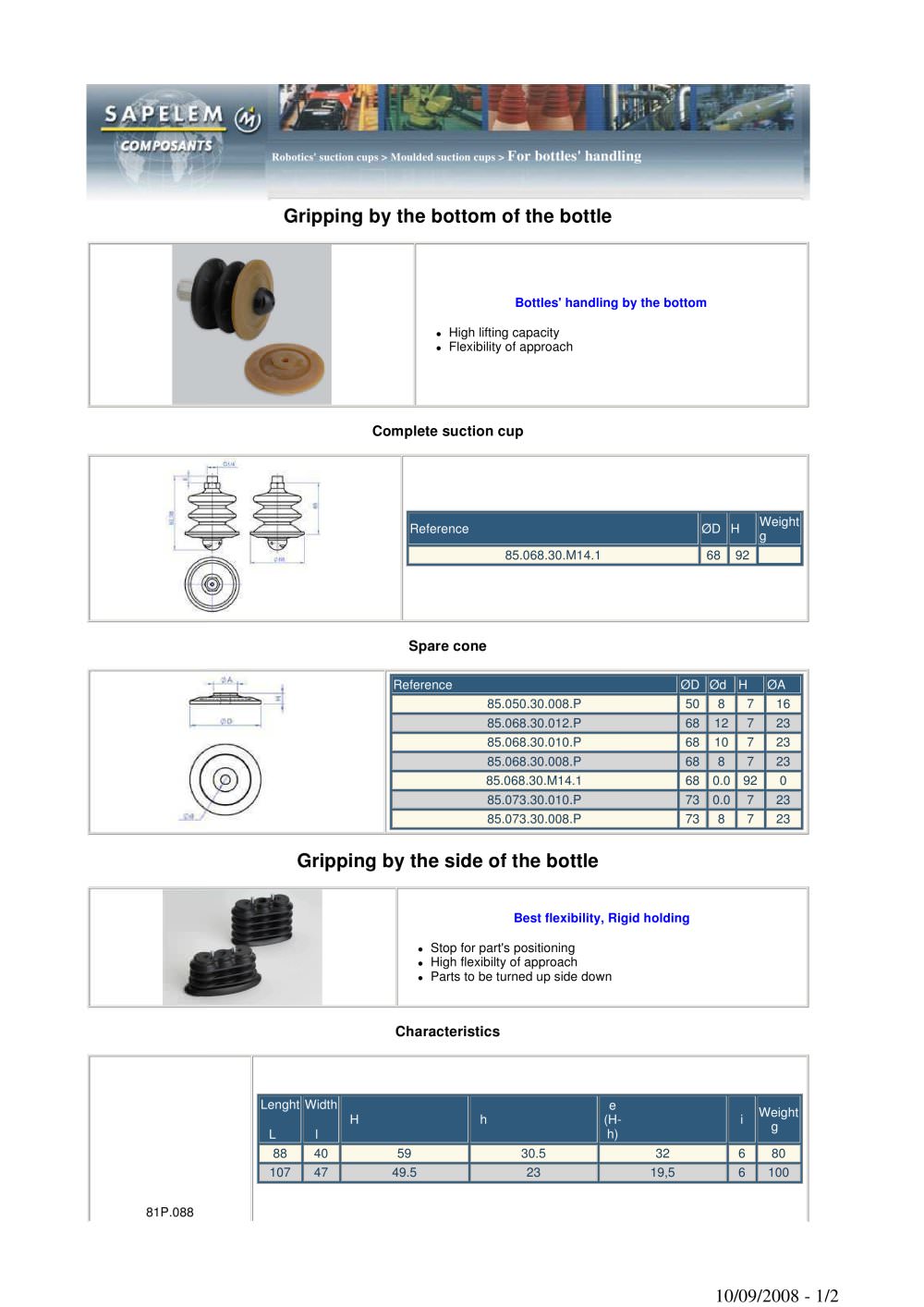

for bottle's handling - 7523 Gripping by the bottom of the bottle

Bottles' handling by the bottom High lifting capacity Flexibility of approach

Complete suction cup Spare cone

Reference ØD H Weight g 85.068.30.M14.1 68 92 Reference ØD Ød H ØA 85.050.30.008.P 50 8 7 16 85.068.30.012.P 68 12 7 23 85.068.30.010.P 68 10 7 23 85.068.30.008.P 68 8 7 23 85.068.30.M14.1 68 0.0 92 85.073.30.010.P 73 0.0 7 23 85.073.30.008.P 73 8 7 23

Gripping by the side of the bottle

Best flexibility, Rigid holding Stop for part's positioning High flexibilty of approach Parts to be turned up side down

Characteristics

LenghtL Widthl e (H-h) H h i Weightg 88 40 59 30.5 32 6 80 107 47 49.5 23 19,5 6 100 81P.088

10/09/2008-1/2
