SANM0TION

3-phase STEPPING SYSTEMS

DC input^^jpart numbering convention

Part number convention

The following set part number specifies a system with an F series driver (type code : PMDSA1S3P01) and a single shaft H series motor(type code : 103H7332-0340), 56mm( 2.20inch)square flange, and 53.8mm(2.12inch) motor length.

Stepping motor shaft spec S : Single shaft D : Double shaft

Stepping motor total length

(indicated by the lowest one digit of motor type)


			Motor flange size

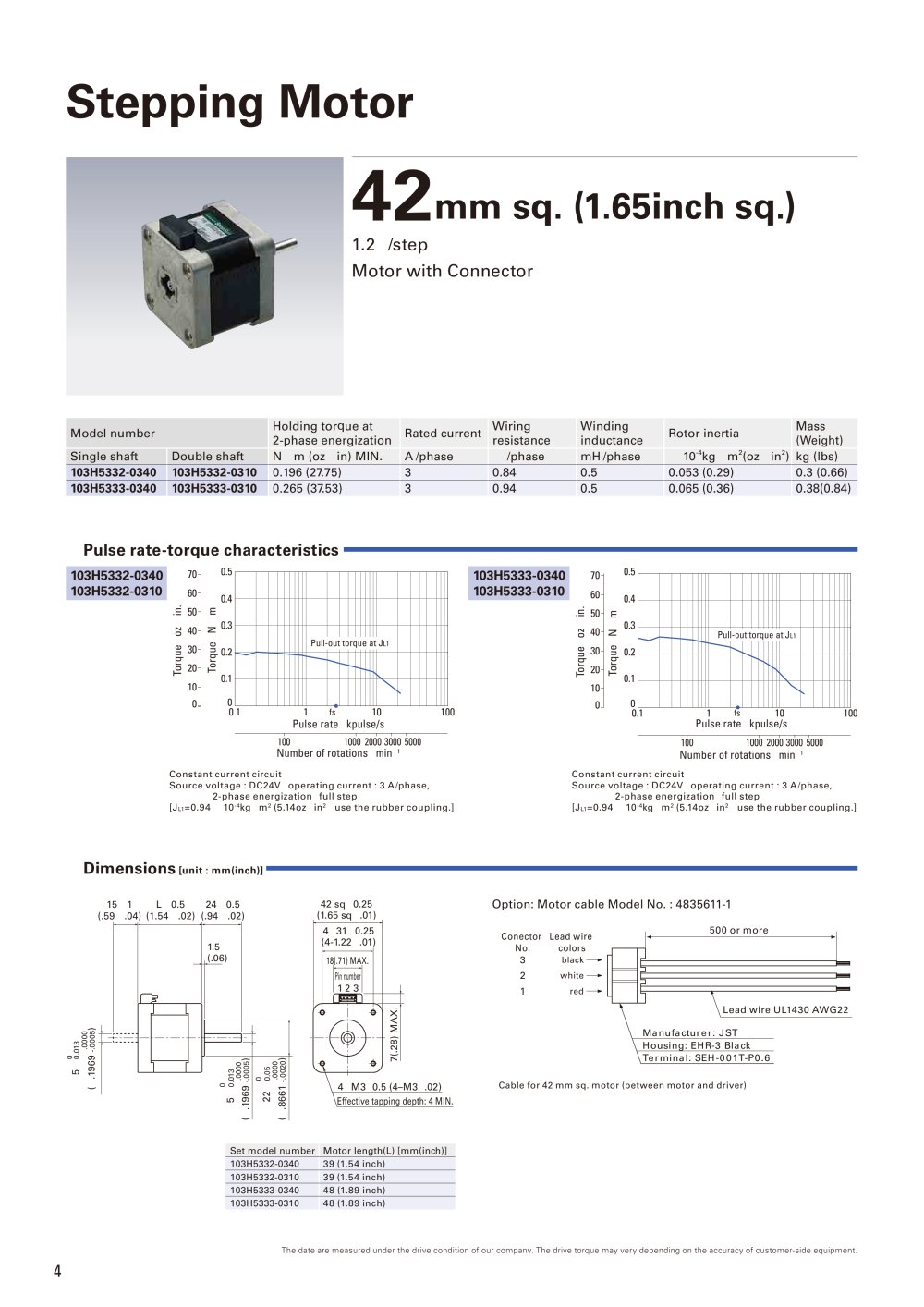

	°42mm P 1.65inch)	° 50mm(ⁿ	1.97inch)	° 56mm(ⁿ	2.20inch)	° 60mm(ⁿ	2.36inch)
Code	Motor ^Type ^code '^em^gm^h (inch)	Type code	Motor length : mm (inch)	Type code	Motor length : mm (inch)	Type code	Motor length : mm (inch)
1	--	-	-	-	-	-	-
2	5332 39(1.54)	6332	51.3(2.02)	7332	53.8(212)	7832	53.8(212)
3	5333 48(1.89)	6333	64.8(2.55)	7333	85.8(3.38)	7833	85.8C3.38)
4

Stepping motor flange size (indicated by the upper two digits) 53 : °42mm(° 1.65inch) 73 : °56mm(°2.20inch) 63 : ° 50 mm (° 1.97inch) 78 : ° 60 mm (°2.36inch)

(Ex.) Setpping motor model number

103H7332-0340 : Indicated the motor type (4 to 5 digits).

]

Stepping motor series name

H : Standard stepping motor for set (for general industrial machines) "H" series

Rated current specification 7 : 3A/phase

F series driver model number 1 : PMDSA1S3P01

Connection specification

S : Star connection (3-phase)

Power specification D : DC
